Mega Flat Pak Plus

UPC#: 819730014290
Advantage Points: 400
Redemption Points: 8000
SKU
MEG555
The ADJ Mega Flat Pak Plus is a convenient solution for the mobile entertainer to provide Pure Lighting Excitement at any party. This lighting system includes: 4x ADJ Mega Par Profile Plus LED Pars, 4x (1M/3ft.) IEC to Edison power cables, 3x (6ft/2M) DMX Cables and a soft bag.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

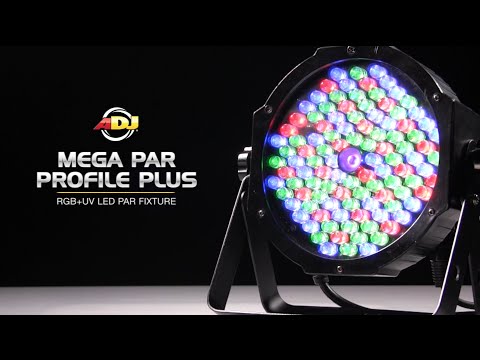

• Slim flat black Par with 107x 10mm LEDs (26 Red, 45 Green, 36 Blue LEDs) + 1 3W UV LED

• Smooth RGB+UV Color Mixing (fast or slow color change operation)

• Power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

• DMX-512 protocol

• With Wired Digital Communication Network

• 5 DMX Channel modes: 4/5/6/9/10 channels

• 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, & DMX Controlled

• Beam Angle: 30 degrees

• 16 Sound Active shows

• 32 Built-in shows (16 Color Changing Shows & 16 Color Fading Shows)

• 64 built-in Color Macros

• Stand Alone or Primary/Secondary Configuration

• 5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)

• Display Inversion Mode

• Color strobe effect

• Linkable via 3-pin XLR cable

• Electronic Dimming: 0-100%

• 4-button function display

• Includes scissor yoke to hang on truss, mount on a wall or set on the ground

• Long Life LEDs (50,000 hrs.)

• Light output: 345 LUX @ 2M; 92 LUX @ 4M (30-degree beam)

• Power Draw: 16W Max

• IEC AC IN/OUT on rear to daisy chain power (up to 33 @ 120V and 60 @ 230V can be linked). IEC power link cables sold separately and available in 3, 6, 10 & 15 foot lengths. (Items: ECCOM-3, ECCOM-6, ECCOM-10 & ECCOM-15)

• Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./ 10M (sold separately)

• Multi-voltage Operation: AC 100 - 240V, 50/60Hz

• Power cable length: 1.8 meter (IEC)

• Dimensions - Each Fixture (LxWxH): 9” x 8.75” x 3.5”/ 225x220x85mm

                            - Bag (LxWxH): 16.75” x 9.5”x 9.25”/ 420 x 240 x 230mm

• System Weight: 15 lbs./ 6.5 kg.


Videos

Downloads

The following downloads are available for this product:

Title Description
Mega Flat Pak Plus User Manual User Manual Download

The ADJ Mega Flat Pak Plus is a convenient solution for the mobile entertainer to provide Pure Lighting Excitement at any party. It includes four (4) of the popular ADJ Mega Par Profile Plus LED Wash Fixtures, (4) IEC to Edison power cables, three (3) DMX connector cables, and a soft carrying case to protect your Mega Par Profile Plus’s during transport and dust-free while storing.

The Mega Par Profile Plus slim design and vibrant RGB + UV output is perfect for Uplighting, stage washing and wall washing. The carrying case easily fits four Mega Par Profile Plus’s and the DMX cables, plus a space for a small LED Controller (controller sold separately).


System Incudes:

• 4x Mega Par Profile Plus

• 4x (1M/3ft.) IEC to Edison power cables,

• 3x (2m/6 ft) DMX Cables

• 1x ADJ Carry Bag


IEC power link cables sold separately and available in 3, 6, 10 & 15 foot lengths. (Items: ECCOM-3, ECCOM-6, ECCOM-10 & ECCOM-15)
