Mega 64 HEX Pak

(Discontinued)
SKU: MEG134 | UPC: 819730016867

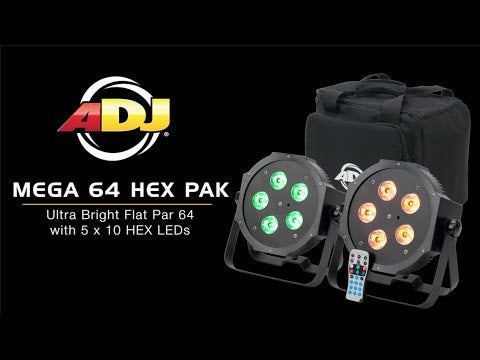

A low profile LED Par kit with 2x HEX (6-IN-1) LED Pars, 2x IEC to Edison power cables, 1x padded soft bag and 1x IR wireless remote control (ADJ LED RC4).
Advantage Points: 400

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The ADJ Mege 64 HEX Pak is a compact, low profile LED Par kit with two Mega 64 HEX LED Pars, a soft deluxe padded bag and an IR wireless remote. The LED Pars feature five 10-Watt, 6-IN-1 LED (red, green, blue, white, amber, & UV), a scissor yoke, rubber feet for uplighting and a 4-button DMX display.

The Mega 64 HEX is designed for uplighting and stage lighting, and will bring color and excitement to any party. This fixture features an unique “sit-flat” design so that it may sit directly on the ground or inside truss without the scissor yoke because the power & DMX ins and outs are mounted on the side of the fixture, not on the rear.



The Mega 64 HEX’s offer smooth RGBWA+UV Color Mixing, have 25-degree beam angles, 63 built-in color macros, 5 operational modes; Sound Active, Auto Run (with 16 Color Change Programs, 16 Color Fade Programs, & 1 Combo Program), Static Color Mode, RGBWA+UV Dimmer Mode, & DMX Control. The Mega 64 HEX has 5 DMX Channel modes for a variety of programming options. Users can also use the included ADJ LED RC4 IR wireless remote to change colors and functions of the LED Pars.


Specifications

Specifications

• Colors: RGBWA+UV Color Mixing

• LEDs: 5 x 10W 6-in-1 HEX LED’s

• Five Operation Modes

• Electronic Dimming 0-100%

• Built-in Microphone

• DMX-512 protocol

• 3-Pin DMX Connection

• Five DMX Modes: 6 Channel Mode, 7 Channel Mode, 8 Channel Mode, 11 Channel Mode, and 12 Channel Mode.

• ADJ LED RC4 compatible (Included)

• IEC In/Out to daisy chain up to 15 Fixtures Max. IEC power link cables sold separately and available in 3, 6, 10 & 15 foot lengths. (Items: ECCOM-3, ECCOM-6, ECCOM-10 & ECCOM-15)

• Beam Angle: 25 Degrees

• Light output: 1406 LUX @ 2M; 323 LUX @ 4M (25-degree beam)

• Refresh Rate: 1KHz

• Working Position: Any safe working position

• Power Draw: 40W

• Fuse: 2A

• Weight: 4 lbs./ 1.87 Kgs.

• 10lbs. / 4.5 Kgs (System w/ Bag)

• Dimensions (LxWxH): 10.25” x 10.25” x 4.25” / 261 x 260 x 110mm



OPTIONAL ACCESSORIES:

Mounting Clamps Click here
Controllers Click here



Mega 64 HEX Pak Warranty Registration

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
Mega 64 HEX Pak User Manual Download
