Inno Spot Pro

80W LED Moving Head 80W LED Moving Head 80W LED Moving Head 80W LED Moving Head
SKU: INN650 | UPC: 819730010902
American DJ's Inno Spot Pro provides the essential Moving Head light show experience. Operating in DMX-512, Sound Active, and Show Mode, it includes 4 built-in lighting shows. With the 6 rotating, replaceable gobos offering 8 colors (plus white) and extremely bright 80W LED, you'll be sure to dazzle your crowd.
Advantage Points: 1160

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description


Bring life to your party with the Inno Spot Pro Moving Head LED entertainment system. Take it anywhere, it's small and weighs only 19 pounds so it won't be a hassle whether you're playing in town or taking it from show to show on the road. Your crowd will be wowed when you hook this baby up sound active to your music system and let it do the work or in DMX-512, or Show Mode; with its 4 built-in lighting shows you'll always have entertainment ready on the go. This fixture is also perfect for replacing your older halogen or discharge lighting effects because of the remarkably low 140W power draw.

This great ADJ product has all the essential features to make your show light up the night.  Keep it sharp with motorized focus, exciting with the gobo shake effect, and of course you can't have a party without a controllable pulse and strobe. To improve the experience, use the Inno Spot Pro with one of ADJ's fog machines to get the most of your LED lighting experience. From weddings to clubs to stage shows, the Inno Spot Pro from American DJ is a great addition to an essential component of any great party if you want to offer your crowd a night to remember.

Protect the Inno Spot Pro with the ADJ QRC-FS3Z road case.

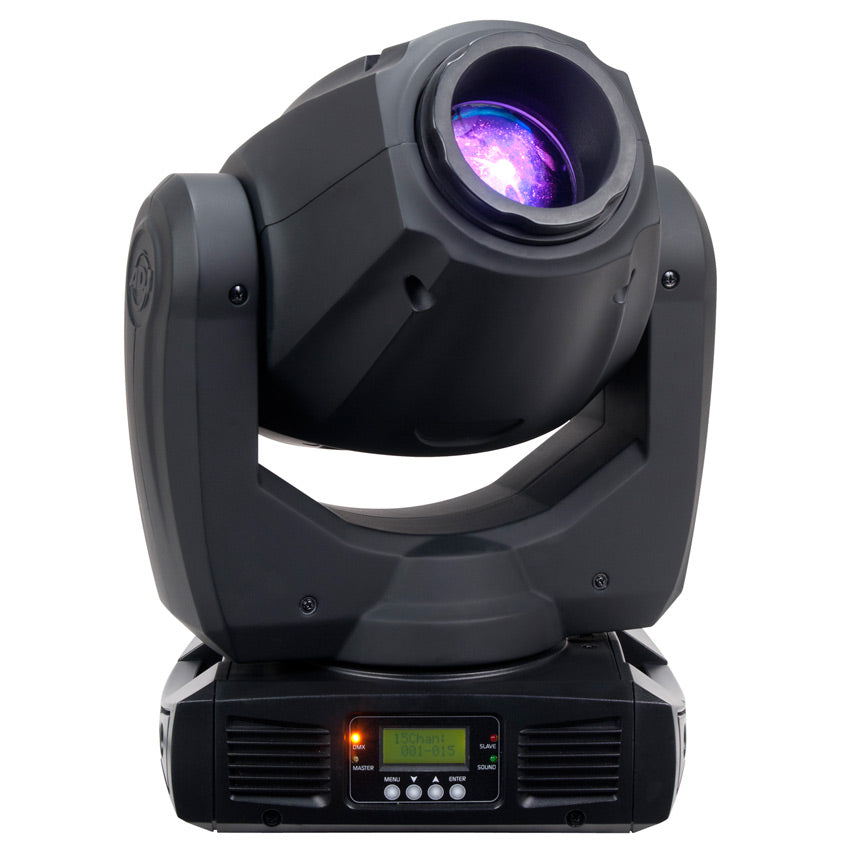

  •  High output Intelligent Moving Head with a bright white 80W LED source

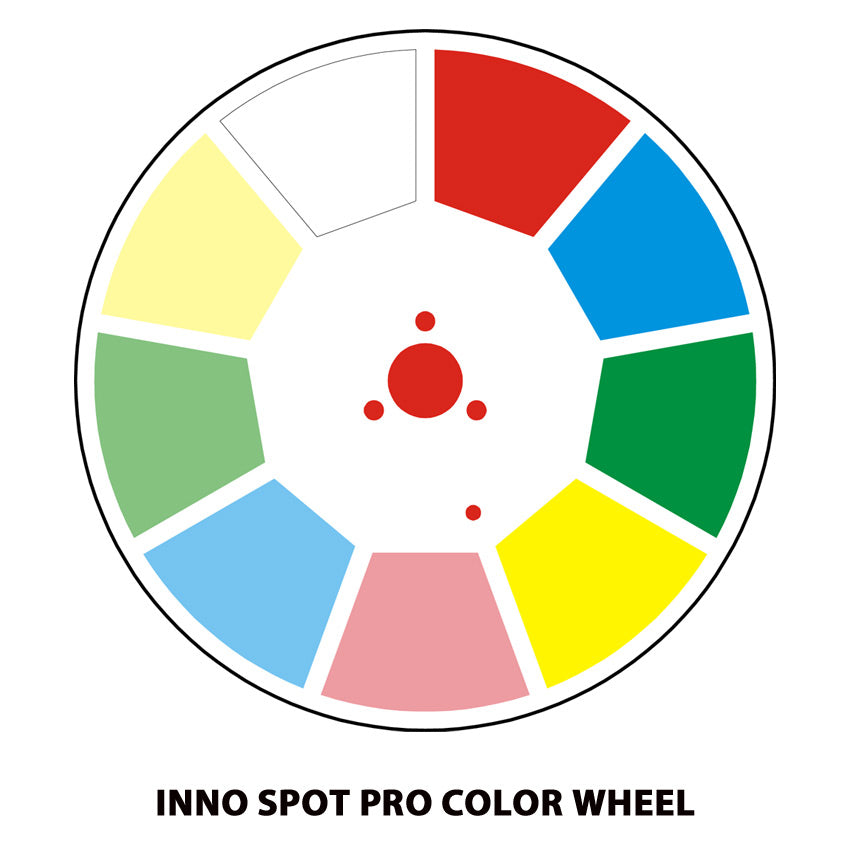

  •  8 Colors + Spot
  •  6 rotating, replaceable gobos + spot
  •  Separate color & gobo wheels
  •  Gobo scroll mode
  •  Motorized focus
  •  Manual zoom: Adjustable between 12 - 17-degrees
  •  14 DMX channels
  •  3 Operational modes: DMX-512, Sound Active or Show Mode
  •  4 Built-in lighting shows
  •  Gobo Shake effect
  •  3-facet rotating prism effect

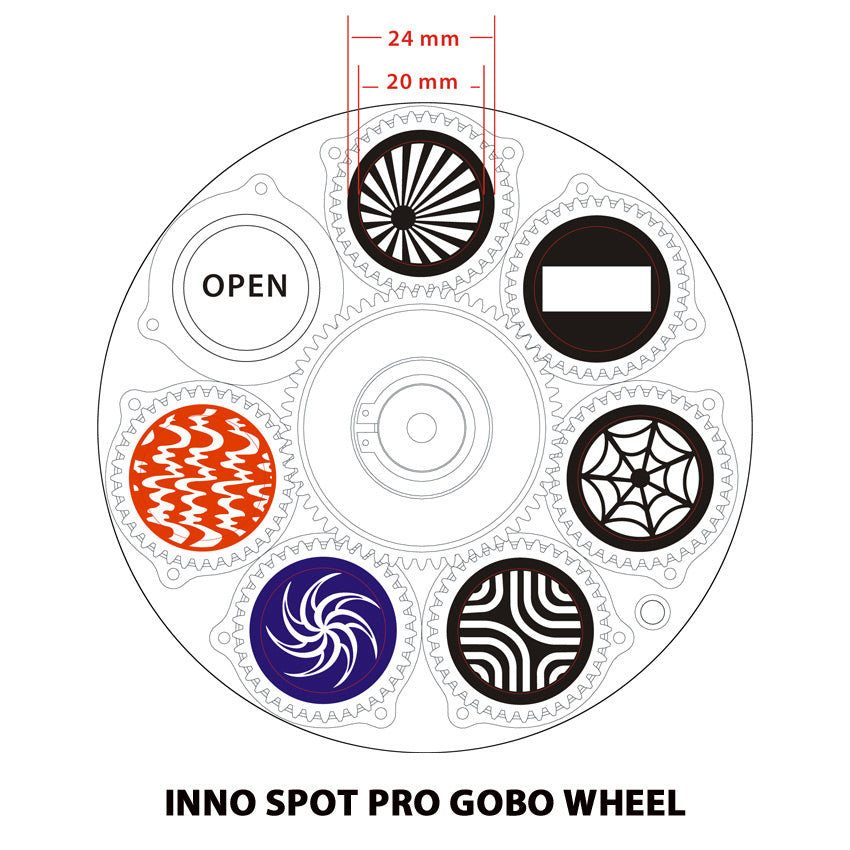

  •  Gobo size: 24mm (20mm viewable / 0.2mm thickness for 4 metal gobo, 1.1mm thickness for 2 glass gobo)
  •  540° pan / 240° tilt (16-bit)
  •  Pan /Tilt Fine
  •  Shutter: Pulse effect; random strobe slow to fast
  •  Dimming: 0% - 100%
  •  Fan Cooled
  •  Stepper motors with micro stepping
  •  Omega Clamp Included

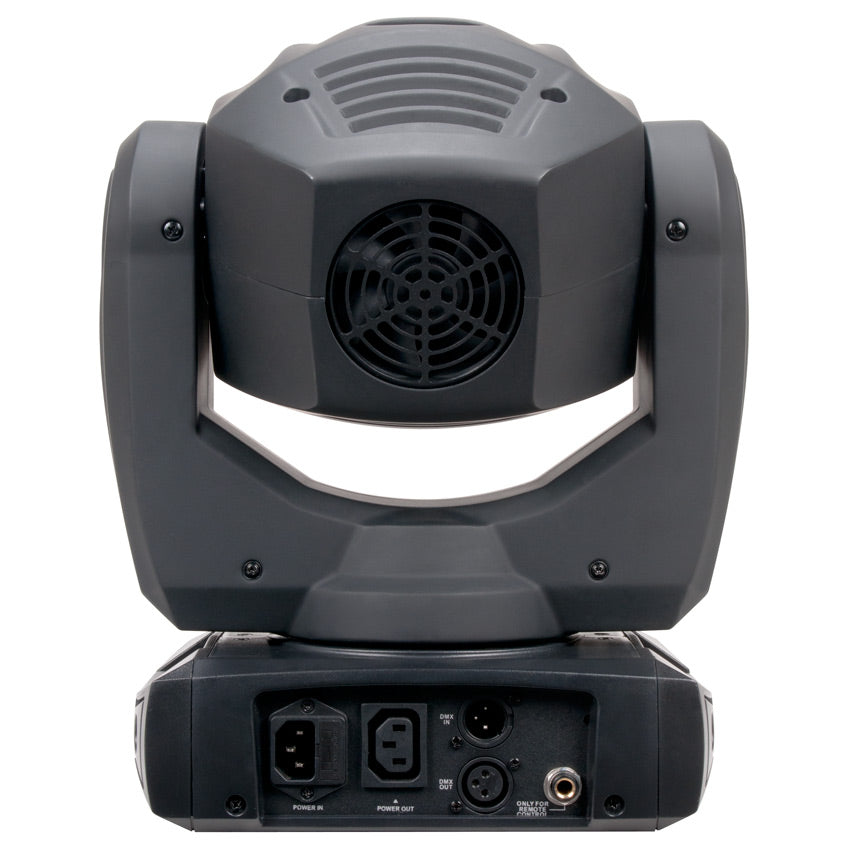

  •  Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 4 Inno Spot Pro’s @ 120V, 8 Inno Spot Pro’s @ 220V fixtures)
  • With Wired Digital Communication Network
  •  Compatible with the ADJ UC3 Series easy-to-use controllers (sold Separately)
  • PWM (Pulse Width Modulation): 1K
  • Strobe Rate: 0.3-12HZ
  •  Power consumption: 140W @110V, 134W @ 220V
  • Light output: 22,330 LUX @ 2M, 3,700 LUX @ 4M (12-degree beam); 10,920 LUX @ 2M, 2,805 LUX @ 4M (17-degree beam)
  •  Multi-voltage Operation: AC 100 - 240V, 50/60Hz
  • Power Cable Length:1.5M (IEC)
  •  LED Source: 80W White LED source (Rated at approximately 50,000 hrs)
  •  Dimensions (LxWxH): 11.5” x 6.75” x 16.75” / 288 x 167 x 425mm
  •  Weight: 19 lbs. / 8.5 kg.
  • ETL Approved
Protect up to 4 Inno Spot Pros in the QRC-FS3Z road case.





The following downloads are available for this product:

Title Description
Inno Spot Pro Cut Sheet Cut Sheet Download
Into Spot Pro Photometrics Photometrics Download
Inno Spot Pro CAD Drawings CAD Drawings Download
Inno Spot Pro User Manual User Manual Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Dear Madam/Sir, I am looking into purchasing multiple units of the above for my theatre and music applications. Query, Can I use the Spot pro in the same way as with a traditional spotlight such as the 'Phillips Selecon Axial Acclaim 24-44'? What are the differences in beam with? Can I still use this to spot-light an actor on stage? What with 5 Inno colour beam units, will I be able to create a wash for a stage approx 9m x 4m? I also have a fair stock of Fresnels, PC spots and Selecon's with which to "fill out' the stage. I look forward to receiving your answers, With best regards, Alex Alexander Gardner-McTaggart Primary Arts Coordinator IB Diploma Theatre Arts, Primary Performing Arts The International School of Azerbaijan 0099412 497 30 28 TISA Mission Statement The TISA Mission is to prepare students to become life-long learners and positive contributors to their local and global communities. TISA will prepare its students for the next stage of their education through a high quality, well balanced educational programme. TISA will deliver its programme according to the universally recognised educational principles, practices and beliefs of the International Baccalaureate.

To be very specific the Inno Spot Pro is a moving head Spot and not a Follow Spot. They don't have the same kind of beam spreadas the follow spot.

Can I swap out the 3 facet prism for the 6 facet prism that is stock on the inno spot elite? Or in other words are all inno spot prisms interchangeable?

The prisms are not interchangable.

where can i find the profile of the inno spot pro . I'd like to put it in a Elation Showdesigner 2?

Please contact

What is show mode?

Show mode allows you to access 4 different shows that limit movement of the head. Page 11 in the owners manual goes into the specifics.

How do I adjust the focus on 4 linked units. I am running them with a Wifly NE1. They are all out of focus and as soon as I but them back in DMX mode the go out of focus.

Hello Scott,

Thank you for reaching out to us. Once you have the fixture you want to adjust the focus on hold down the dial/enter buttom for a few seconds. This should take you to the unit channel protocal once there turn the dial/enter to the right to scroll thru the fixtures channels. Once you found focus channel then use the knobs to the left hand side to call out that channel and adjust the focus. Let me know if this helps you out


Can you master/slave an inno spot pro with an inno spot led

No, Master/Slave is only an option with identical models.
