Inno Pocket Z4

The Inno Pocket Z4 is a mini ZOOM Moving Head that creates beautiful washes of color with its 10-60-degree beam angle. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers, churches or The Inno Pocket Z4 is a mini ZOOM Moving Head that creates beautiful washes of color with its 10-60-degree beam angle. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers, churches or The Inno Pocket Z4 is a mini ZOOM Moving Head that creates beautiful washes of color with its 10-60-degree beam angle. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers, churches or The Inno Pocket Z4 is a mini ZOOM Moving Head that creates beautiful washes of color with its 10-60-degree beam angle. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers, churches or The Inno Pocket Z4 is a mini ZOOM Moving Head that creates beautiful washes of color with its 10-60-degree beam angle. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers, churches or The Inno Pocket Z4 is a mini ZOOM Moving Head that creates beautiful washes of color with its 10-60-degree beam angle. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers, churches or The Inno Pocket Z4 is a mini ZOOM Moving Head that creates beautiful washes of color with its 10-60-degree beam angle. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers, churches or The Inno Pocket Z4 is a mini ZOOM Moving Head that creates beautiful washes of color with its 10-60-degree beam angle. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers, churches or
SKU: INN119 | UPC: 819730016829
The Inno Pocket Z4 is a mini ZOOM Moving Head that creates beautiful washes of color with its 10-60-degree beam angle. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers, churches or any mobile production. Compatible with the ADJ Airstream IR App.
Advantage Points: 430

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $399.99

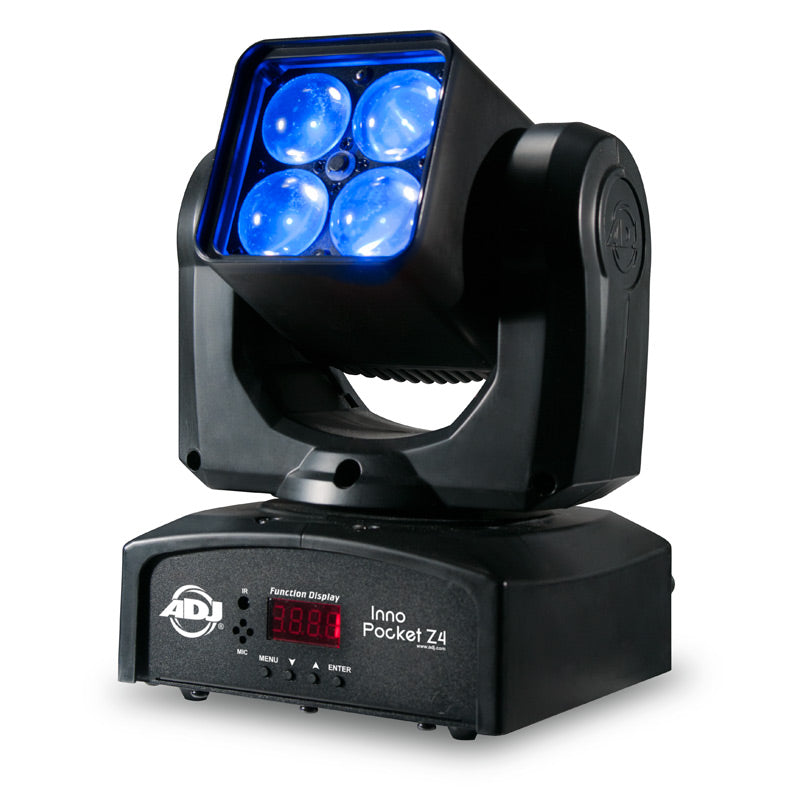

The Inno Pocket Z4 is a mini ZOOM Moving Head that creates beautiful washes of color with its 10-60-degree beam angle. Its compact size and lightweight makes it ideal for mobile entertainers, small club and bars, roller rinks, bowling centers, churches or any mobile production.



Featuring 4 x 10W 4-IN1 Quad LEDs (RGBW - Red, Green, Blue and White),
the Inno Pocket Z4 will give pure lighting excitement with its fast moving head and brilliant washes of color. It has a pan and tilt inversion mode that makes one head do the opposite of another when linked together.



Users may control the Inno Pocket Z4 by Sound activation with its 4 built-in shows, the optional UC IR wireless remote, or use a DMX controller to create your own light shows. Compatible with the ADJ Airstream IR App.

Specifications

Specifications

• High output mini Moving Head with a bright 4 x 10W Quad RGBW LED source

• 3 Operational modes: DMX Control, Sound Active Mode & Show Mode

• 3 DMX Channel Modes: 16/19/22

• 4 Built-in shows

• Stand Alone Set Up or Master-Slave Configuration

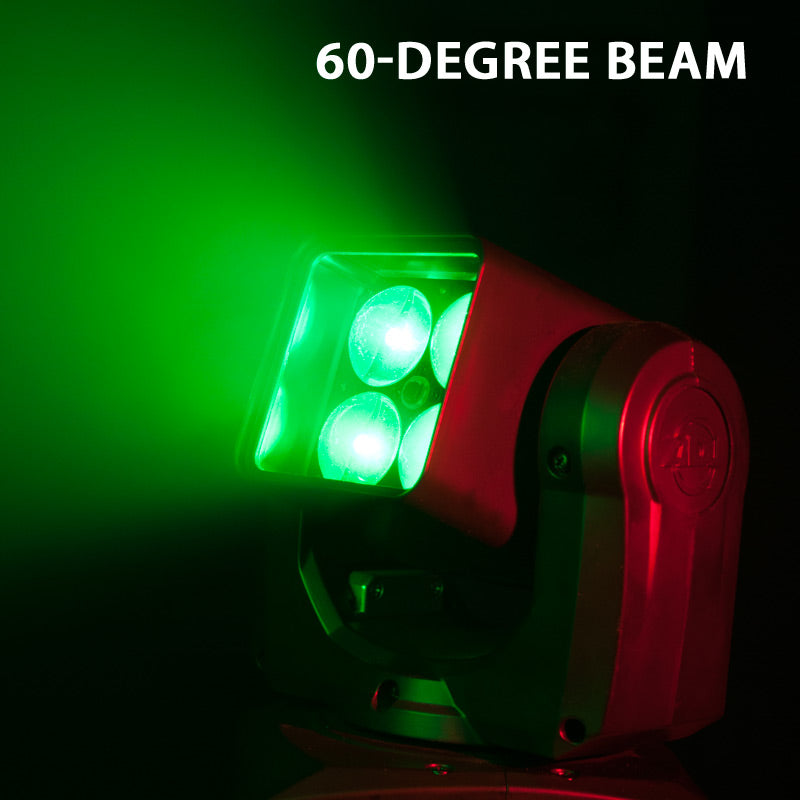

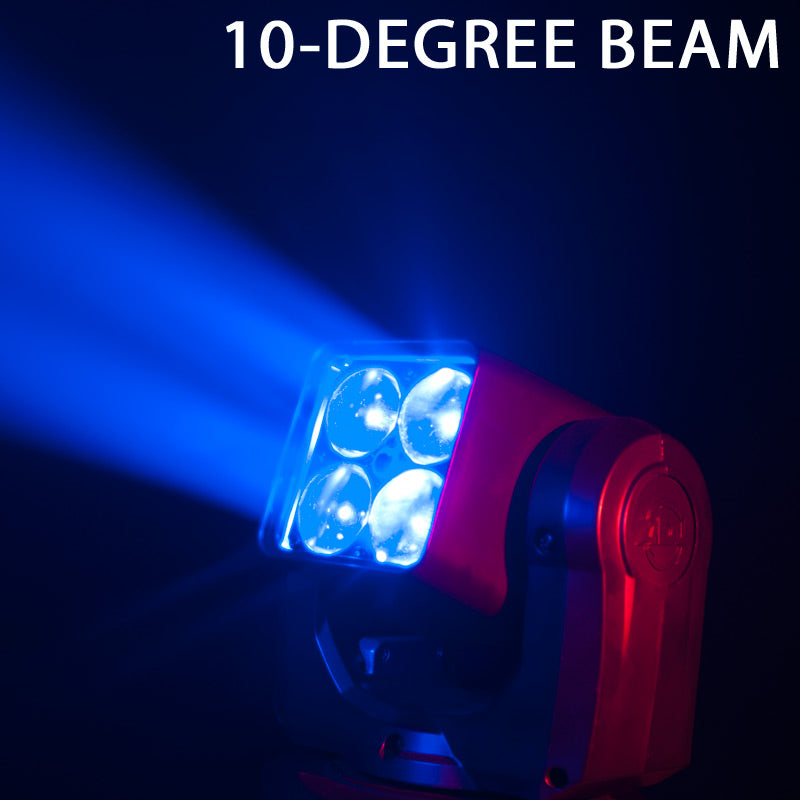

• Beam Angle: 10 - 60-degrees

• 540° pan / 180° tilt (8-bit & 16-bit)

• Full ZOOM 10-60 Degrees

• Pan /Tilt Inversion mode

• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)

• Shutter: Pulse effect; random strobe slow to fast

• Dimming: 0% - 100%

• Display Inversion Mode

• Mounting bracket included

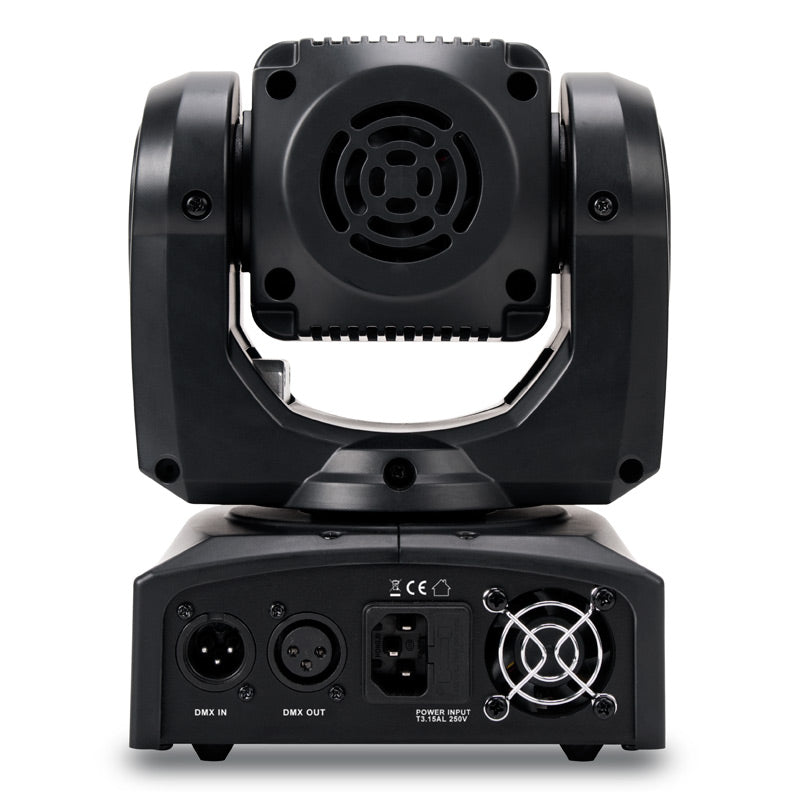

• Linkable: DMX via 3-pin XLR cable
• With Wired Digital Communication Network

• Optional ADJ UC IR wireless remote control (ADJ UC IR Not Included)

• Compatible with the ADJ Airstream IR App
• PWM (Pulse Width Modulation): 1.1K
• Strobe Rate: 0.7-12HZ
• Power consumption: 67W (Full-On)
• Light output: 5731 LUX @ 2M, 1431 LUX @ 4M (10-degree beam); 541 LUX @ 2M, 153 LUX @ 4M (60-degree beam)

• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• Power Cable Length: 1.5m (IEC)

• LED Source: 4 x 10W 4-in-1 RGBW LED source (Rated at approximately 50,000 hrs)

• Dimensions (LxWxH): 5.5” x 6.75” x 9.75” / 141 x 174 x 247mm

• Weight: 7 lbs. / 3.2 kgs.
• ETL Approved

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Inno Pocket Z4 Photometrics Download
Inno Pocket Z4 User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

where can i download profile for inno pocket z4

e-mail support at support@americandj.com and request the profle.

product info says 10-60 degree beam.. does that mean i can control the beam width via dmx?? ie. go from focu spot to larger wash? thanks.

Hello Luci,

Yes, you could adjust the zoom on the inno pocket Z4 thru dmx. let me know if you have any further questions.

Thanks,

How is it to set the device into ir mode, mine are not responing to my I phone using the softwaretool

Hello DJ Baron,

Once you hook up the airstream ir on to the light it should automatically go into ir mode. Make sure you have the volume all the way up on your ios device that boosts the ir signal. Let me know if this helps you out.

Thanks,

I need the disassembly instructions. Ours is having trouble.

ADJ is unable to provide repair assistance. The product can be sent to ADJ's repair facility. Please call 800-322-6337 and request a return authorization number.
