Inno Beam LED

(Discontinued)
SKU: INN999 | UPC: 819730012333

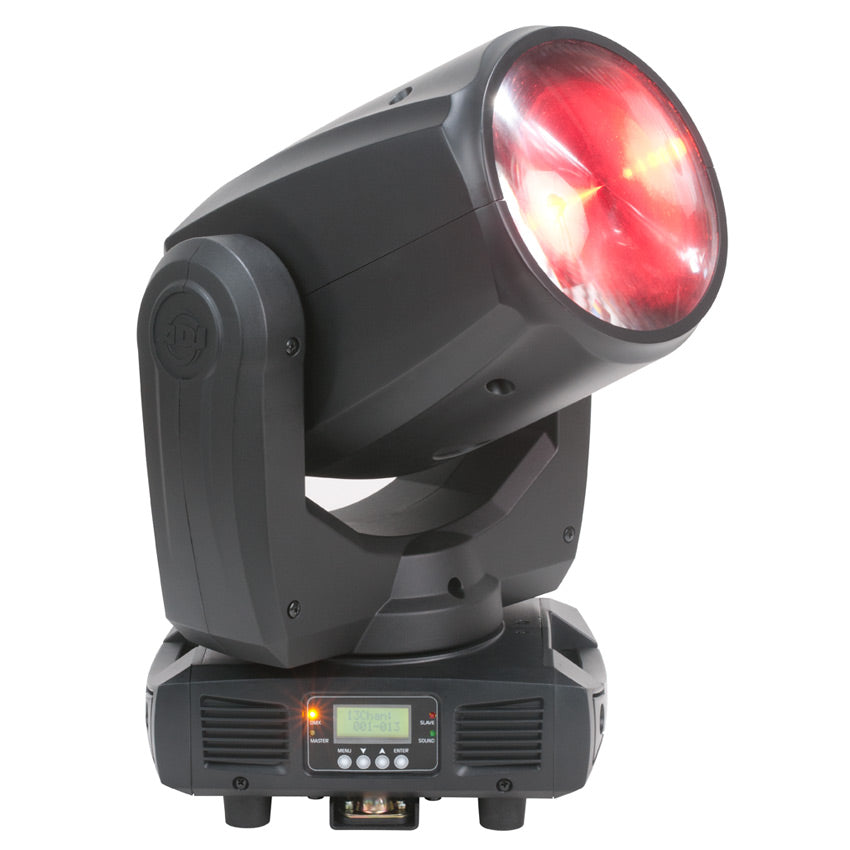

ADJ continues to push the boundaries of LED technology with the Inno Beam LED, a compact intelligent Moving Head with a bright 80W LED source which produces a tight 6-degree beam projecting 8 colors plus white. The Inno Beam LED is lightweight and small in size. It has a Pan/Tilt Inversion mode that makes the heads produce contrasting movements.The Inno Beam LED has 5 selectable dimming curves, a high speed shutter and has a low power draw of 129W at maximum.
Advantage Points: 800

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

<body data-gramm_id="e94c6315-81bf-7414-1899-86a0cc7c546e" data-gramm="true"><body data-gramm_id="b966f228-83e6-473f-42cf-43ac8d97bd2b" data-gramm="true">ADJ continues to push the boundaries of LED technology with the Inno Beam LED, a compact intelligent Moving Head with a bright 80W LED source. It produces a tight 6-degree beam projecting 8 colors plus white. It features a laser cut GOBO Wheel with 4 GOBOs and 4 Beam Reducers to change the size of your beam (for exciting effects and for pinspotting), an 8-facet prism and a Frost filter to create a wash effect.

 The Inno Beam LED is lightweight and small in size making it extremely mobile for easy set-up and transport. It may be controlled via DMX, Sound Activation (with it’s own 4 built-in shows) or  from the ADJ UC3 easy-to-use controller. It has a Pan/Tilt Inversion mode that makes the heads produce contrasting movements. There are 2 DMX channel modes (12 or 14 channels).

 The Inno Beam LED has 5 selectable dimming curves, a high speed shutter for slow to fast strobing and pulsing, and has a low power draw of 129W at maximum.

Specifications

Specifications

<body data-gramm_id="be1c6408-1b07-f0c8-0110-5a2d0f760829" data-gramm="true"><body data-gramm_id="755d043a-e7ef-6afb-1929-42a462e7ece0" data-gramm="true">
  • High output Moving Head beam effect with a bright white 80W LED source
  • 8 Colors + white
  • Laser cut Gobo Wheel with 4 GOBOs and 4 Beam Reducers
  • Separate color & GOBO wheels
  • Beam Angle: 6-degrees
  • 3 Operational modes: DMX Controlled, Sound Active & Internal Show control modes
  • 2 DMX channel modes: 12 or 14 Channel
  • 4 Built-in shows
  • 8-facet Prism
  • Frost Filter
  • Gobo Shake effect
  • Gobo scroll mode
  • 540° pan / 220° tilt (16-bit)
  • Pan /Tilt Inversion mode
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • Shutter: Pulse effect; random strobe slow to fast
  • Dimming: 0% - 100%
  • Fan Cooled
  • Omega bracket included

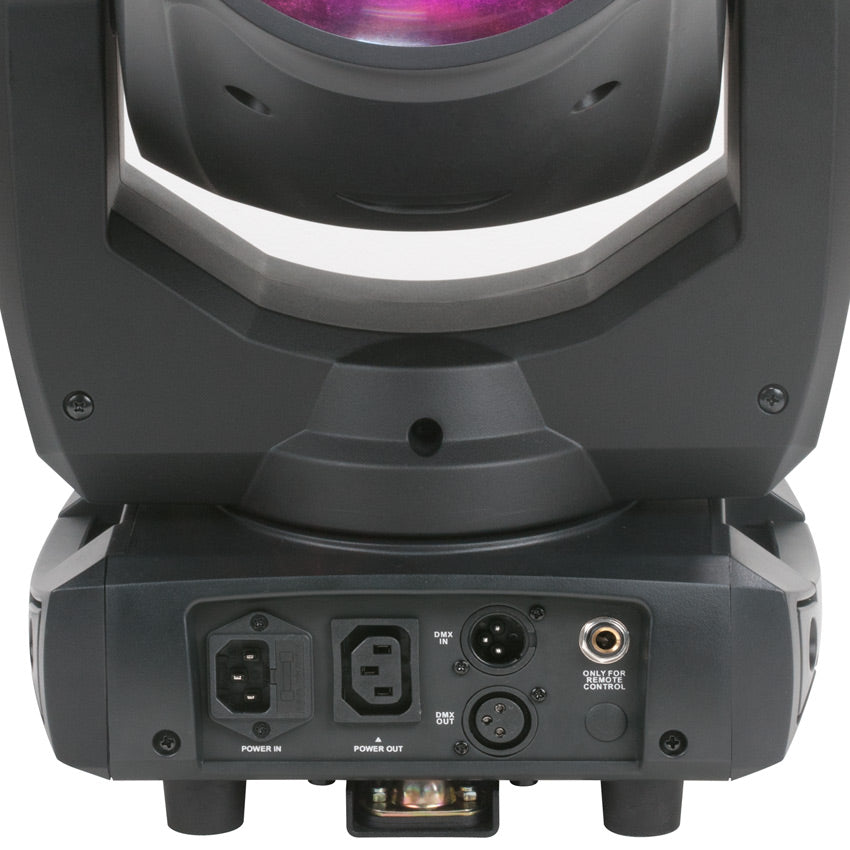

  • IEC AC IN/OUT on rear to daisy chain power (up to 3 Inno Beam LED’s @ 120V and 6 Inno Beam LED’s @ 230V )
  • Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
  • PWM (Pulse Width Modulation: 1K
  • Strobe Rate: 0.3-12HZ
  • DB Rating @ 1Meter: Front: 51.4; Back: 50.8; Left: 51.2; Right: 51.3; Top: 46.5
  • Power consumption: 129W Max
  • Multi-voltage Operation: AC 100 - 240V, 50/60Hz
  • Power Cable Length: 1.5m (IEC)
  • Lux @ 3M: 40060 lux
  • LED Source: 80W White LED source ( Rated at 50,000 hrs)
  • Light Output: 75300 LUX @2M; 19930 LUX @4M (6-degree beam)
  • Dimensions (LxWxH): 11.5” x  7.5” x 18.25” / 289 x 188 x 461mm
  • Weight: 18 lbs. / 8.2 kgs.

OPTIONAL ACCESSORIES:

Mounting Clamps Click here
Controllers Click here

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Inno Beam LED Photometrics Download
Inno Beam LED User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Where can pictures of all the gobos's be found as their not in the user manual



We do not have any pictures of the Gobo's.
