Ikon LED

(Discontinued)
SKU: IKO187 | UPC: 819730010520
The ADJ Ikon LED comes with three different lenses that allow you to get three beam angles from 25 to 43 degrees. Very low heat output means it can run longer and cooler, for those all night parties that last into the early morning and beyond.
Advantage Points: 500

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

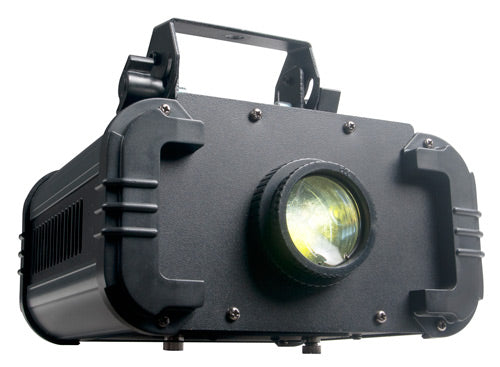

The Ikon LED is one of the best high output single Gobo Projectors out there. This baby is powered by a bright 60W white LED that has a long life and a cool temperature. Made with top grade parts the Ikon LED will last for ages. Very low heat output means it can run longer and cooler, for those all night parties that last into the early morning and beyond. With three different lenses you can get three beam angles from 25 to 43 degrees. This versatility gives the Ikon LED a wide variety of applications.

Four metal Gobos come standard with the Ikon LED projector, any custom Gobos can be inserted into the fixture at your leisure. Controlling the Ikon LED is easier than ever especially with the RF wireless remote that comes with every unit. Bring the house down with the high quality optics, making any current light show set up you may have even more explosive. Use it as a spot light or a mobile DJs personal light show fixture. At only eight pounds it is easy to bring with you from one event to another.

Specifications

Specifications

  •   Bright white 60W LED indoor Gobo Projector
  •  High quality optics - Clear powerful output

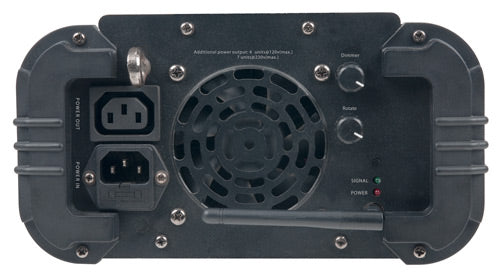

  •  Adjustable dimmer and rotate knob on rear panel
  •  Includes 4 replaceable metal Gobo patterns
  •  Gobo size: 54mm; Viewable size: 39.75mm
  •  Run all night – No Duty Cycle
  •  Easy Gobo replacement access
  •  Manual focus
  •  Ideal for Mobile DJs, Clubs, Bars, Retail Stores and Promotional Events
  •  Very low heat output
  •  Beam Angle: 25, 32 or 43 degrees (Includes 3 different lenses)
  •  Long life LED (Rated at approximately 50,000 hrs.)
  •  IEC AC outlet on side to daisy chain power (up to 4 Ikon LED’s @ 120V and 7 Ikon LED’s @ 230V)
  •  Color Temperature: 7500K
  •  Includes yoke to mount on a wall or hang from trussing

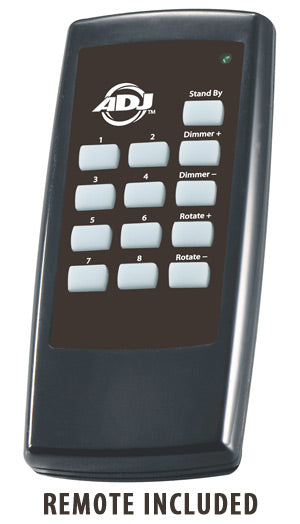

  •  Includes RF Wireless Remote
  •  Multi-voltage: 100-240V, 50/60Hz
  •  Power consumption: 83.6W max
  •  Dimensions (LxWxH): 9.5” x 8” x 8.5”/ 236 x 227 x 215mm
  •  Weight: 8 lbs. / 3.6 kg.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Ikon LED User Manual Download
Ikon LED Cut Sheet Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

can i download any sofware for make my custom gobo for ikon led gobo projetor o doyou have link thanks

There isn't any software for this. You will need to use a transparency enabled printer to make Gobos for the IKON.

Can this projector use plastic or steel gobos?

The Ikon Ir projector has a powerful 60w led that does produce some heat that may damage any transperacy or plastic gobos. Therefore, we recommend using only glass and metal gobos for this product.


Thanks



Any tips on getting the remote to connect to the light? I have tried with the instructions with no luck.

Hello Travis. Your FAQ is on the regular Ikon. The only unit that works with the IR is the Ikon IR.
