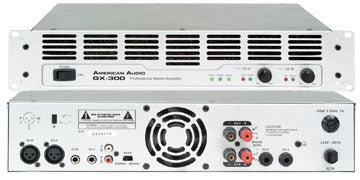

GX-300

• Output Power: 2 ohms, 1 khz 1% THD = N/A, 4 ohms, 1 khz 1% THD = 150W RMS per channel, 8 ohms, 1 khz 1% THD = 100W RMS per channel - (Bridged Mode, mono) 4 ohms, 1 khz 1% THD = N/A 8 ohms, 1 khz 1% THD = 300W RMS per channel
• Total Harmonic Distortion (THD): 20Hz-20kHz, @ rated output power, 8 ohms = Less than 0.1%
• Input Sensitivity & Impedance: @ rated output power, 8 ohms = .775v rms (0 dBv)
• Frequency Responce: ±1dB, 1W RMS 8 ohms = 10Hz - 40 kHz, ±0.2dB, @rated output, 8 ohms = 20Hz - 20 kHz
• Hum & Noise: Below rated output, 8 ohms
• Signal to Noise Ratio: >100dB
• Slew Rate: 20v/usec
• Dampening Factor: @ 8Ohm = >200 @ 1Khz
• Protection Circuit: DC output protection, Overload protection, Short circuit protection,
• Power Consumption: @ rated output power, 8 ohms = 5A @ 110V AC
• Cooling System: Variable Speed Fan
• Dimensions (HxWxD): 3.5” x 19” x 8.86” / (88mm x 483mm x 220.cm
• Weight: 16.3 lbs. / 4.1 kg.
