Dotz Flood

UPC#: 819730010735
Advantage Points: 500
Redemption Points: 10000
SKU
DOT311
Utilizing Chip On Board technology the Dotz Flood light fixture creates smooth and rich RGB color mixing and can be used as a Wash/Bar or Pixel Mapped for stunning visual effects. Also features 0-100% dimming, color macros and built-in shows. Great for stage lighting, bands, or night clubs.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

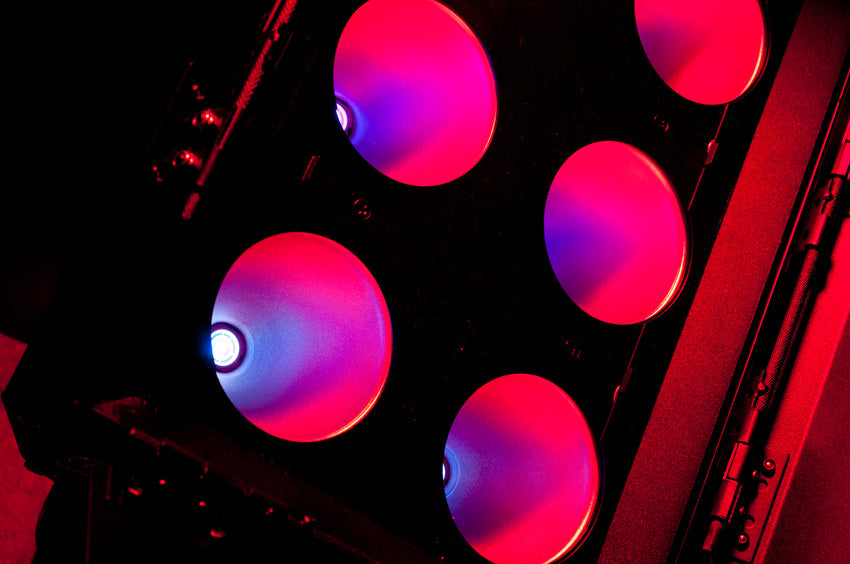

  •  Wash/Blinder fixture with six COB TRI LEDs (RGB: 3-IN1): 2 x 3 COB LED matrix panels
  •  COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
  •  Includes barn doors to regulate beam angle

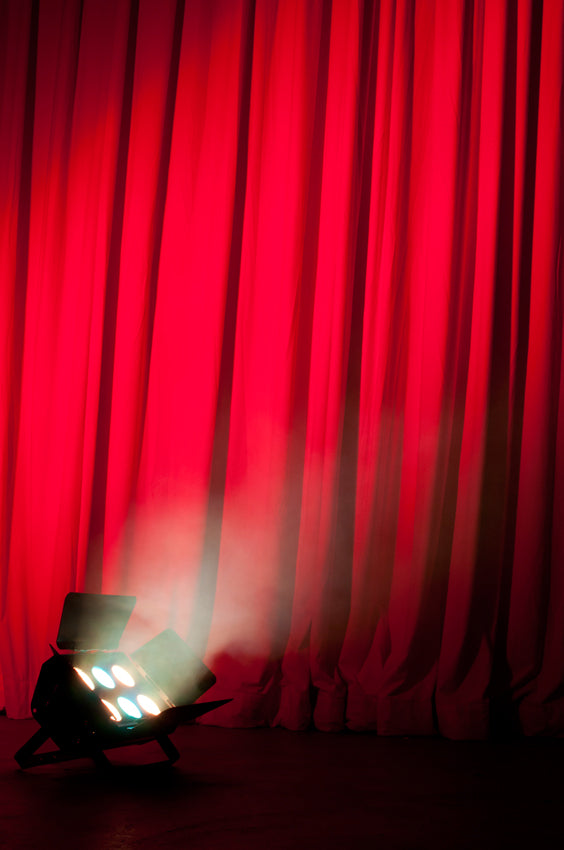

  •  Great for Stage Lighting, Bands or Night Clubs
  •  6 DMX Channel Modes: 1, 3, 4, 5, and two 9 channel modes
  •  5 Operational modes: Auto (Show Run), Sound Active, Manual RGB Dimmer, Static Color, and DMX-512 Mode
  •  12 Built-In Programs Shows
  •  36 Built-In Color Macros (In DMX Mode Only)
  •  Flicker Free
  •  LED pulse and strobe effect
  •  Pixel mapping capable
  •  60-degree beam angle
  •  Electronic Dimming: 0 - 100%
  •  Linkable via 3-pin XLR cable

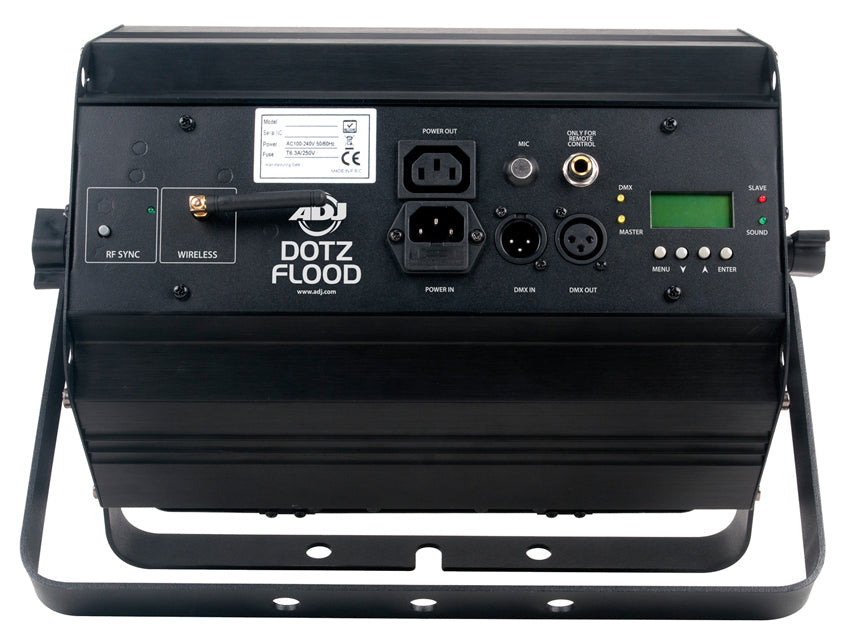

  •  IEC AC IN/OUT on rear to daisy chain power (up to 5 Dotz Flood's @ 120V and 9 Dotz Flood's @ 230V )
  •  4-button LCD display on rear panel
  •  Dual yoke system allows fixture to be hung or set on the ground
  •  Fan Cooled
  •  Light Source: 6x 30-Watt COB TRI LEDs (RGB: 3-IN1):
  •  Power Draw: 120W
  •  Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
  •  Built-in RF antenna compatible with ADJ DF FC wireless RF foot controller, control up to 30 ft./ 10M wirelessly (sold separately)
  •  Multi-voltage Operation: AC 100V/60Hz - 240V/50Hz
  •  Dimensions (LxWxH): 15.5” x 10” x 7.25”/ 389 x 251 x 182mm
  •  Weight: 17 lbs. / 7.5 kgs.

Videos

Downloads

The following downloads are available for this product:

Title Description
Dotz Flood User Manual Download
Dotz Flood Cut Sheet Download
Dot Flood Photometrics Download
Get ready to create the a rich display of RGB mixed color at your next event. With advanced Chip On Board technology the Dotz Flood from ADJ allows for a stunning display of Pixel Mapping or Wash effect from 9 powerful LEDs in a 2 x 3 arrangement. With all it's great features like auto run, sound active mode, and built-in programs this DMX compatible LED fixture is easy to use and integrate into any entertainment production. This unit includes individual pixel control in DMX mode allowing you to fine tune your light display to suit any specific needs. Made from high quality materials the Dotz Flood is built to last. Despite being high output and durable, this LED fixture is lightweight and will be easy to transport to wherever your next event may be. While portable, the Dotz Flood has a high quality and powerful output making it ideal for theaters, venues, and night clubs. Get quality lighting you can trust with the Dotz Flood LED Fixture from ADJ.
