Crazy 8

(Discontinued)
SKU: CRA476 | UPC: 819730012357
ADJ's Crazy 8 white LED offers two independently tilting bars with 4 lenses each for numerous pulse and strobe effects. With a lifespan of around 50,000 hours and low power consumption, this fixture is built to last.
Test
Advantage Points: 1000

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

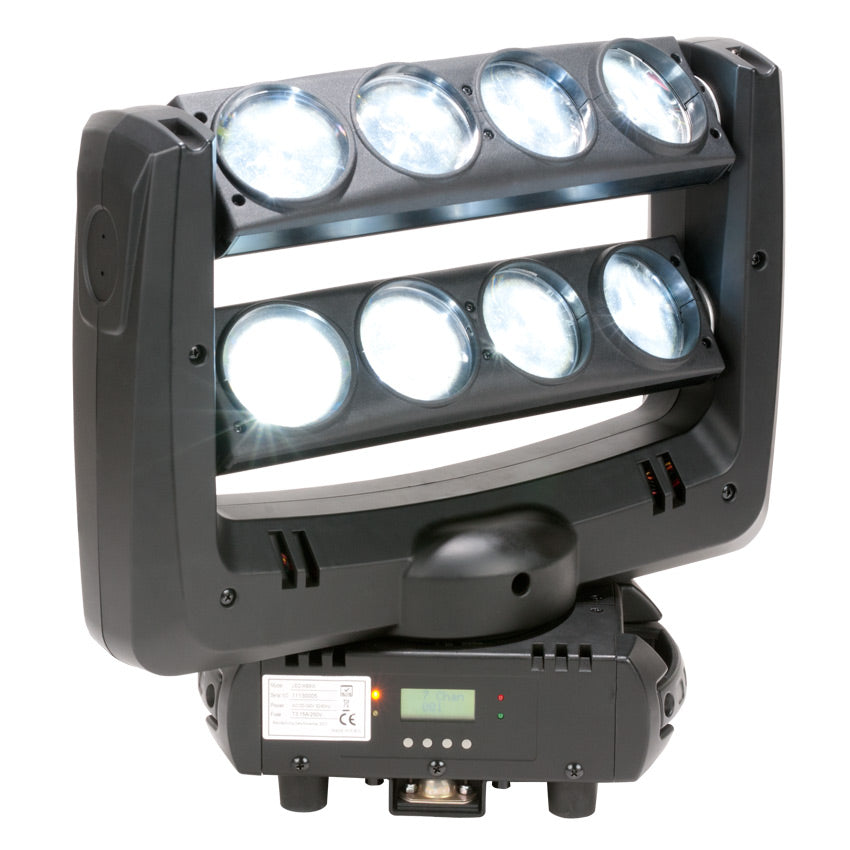

Add an incredible number of unique effects to your lighting array with the Crazy 8 pulse/strobe fixture from ADJ. Featuring quick sweeping beams and 8-Zone chasing, pulsing, and strobing LEDs, this lighting array opens up limitless possibilities! The Crazy 8 display features two independently tilting bars with 4 lenses each that use 8 Watt white LEDs to project tight, 4.5 degree beams of light.

Whether pulsing with the beat of the bass or simulating lightning strikes through the fog on the dance floor, the ADJ Crazy 8 Moving Head fixture is a must-have for any stage lighting production.  This fixture runs cool and needs NO duty cycles, so you can use it through your entire performance night after night, year after year. If you're serious about a mind-blowing show, the Crazy 8 from ADJ is an essential addition to your lighting set up.

Specifications

Specifications

  •  Moving Head fixture with quick sweeping 8-Zone white LED chase Dual LED Bars, each with 4 lenses, move independently
  •  3 Operational modes: DMX controlled, Master/Slave & Sound Active
  •  5 DMX Channel modes (1, 9, 12, 15 or 21 Ch.)
  •  Electronic Dimming: 0 - 100%
  •  Includes exciting sound activate built-in programs
  •  LED pulse & strobe effect
  •  4-Button DMX digital display
  •  540-degree base pan, 150-degree bar tilt from smooth Stepper Motors
  •  Extremely Long Life (Rated at approximately 50,000 hrs.)
  •  Beam angle: 4.5-degrees
  • Light output: 13600 LUX @2M; 3850 LUX @2M (4.5-degree beam)
  •  Runs extremely cool! - NO Duty Cycles! – Run all night!
  •  Includes mounting brackets to mount on a wall or set on the ground
  •  Safety loop on rear panel
  •  Very low power consumption - connect more units in a single circuit
  •  Powercon on rear to daisy chain power (up to 4 Crazy 8’s @ 120V and 7 Crazy 8’s @ 230V )
  •  Compatible with ADJ UC3 Series easy-to-use controllers (sold Separately)
  • PWM (Pulse Width Modulation): 208HZ
  • Strobe Rate: 0.6-9.6HZ
  •  Light Source: 8x 8-Watt white LEDs
  •  Power Consumption: 90W (All LED's @ Full On)
  •  Multi-voltage operation: AC 100-240V 50/60Hz
  • Power Cable Length: 1.5m (IEC)
  •  Dimensions (LxWxH): 16.5” x 6” x 15” / 414 x 153 x 376mm
  •  Weight: 18 lbs. / 7.8 kg.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Crazy 8 User Manual Download
Crazy 8 User Manual (Rev. 8/15) Download
