19 MXR

(Discontinued)
SKU: MXR941 | UPC: 819730017284

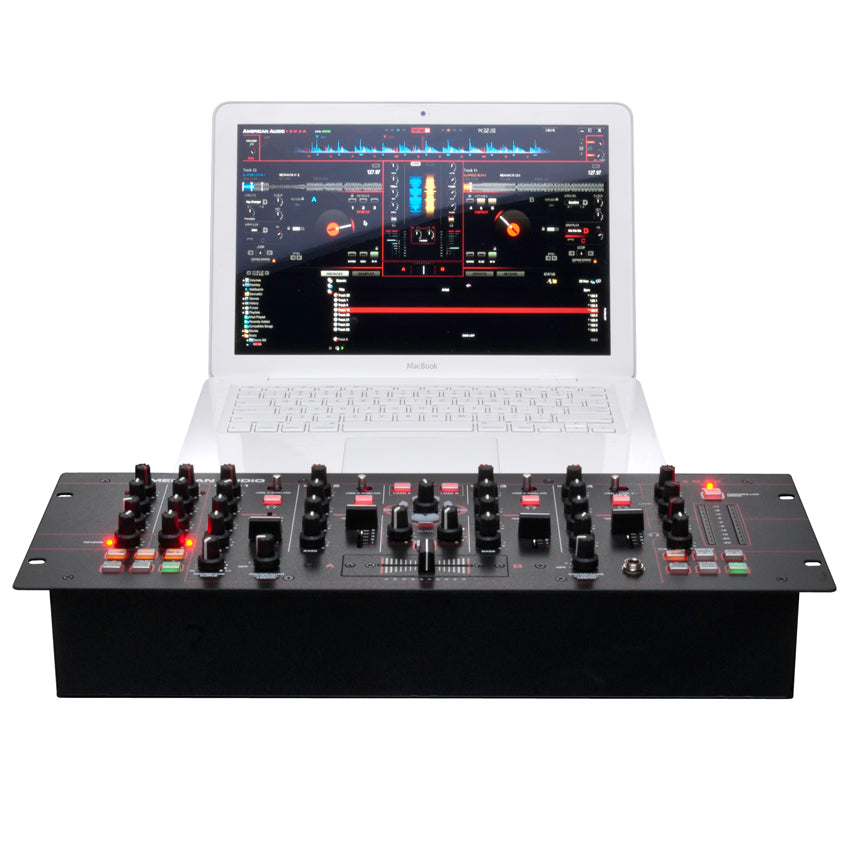

The American Audio MXR Series offers DJs the tactile feel and operation of a traditional DJ mixer while playing and controlling music from software on their computer.

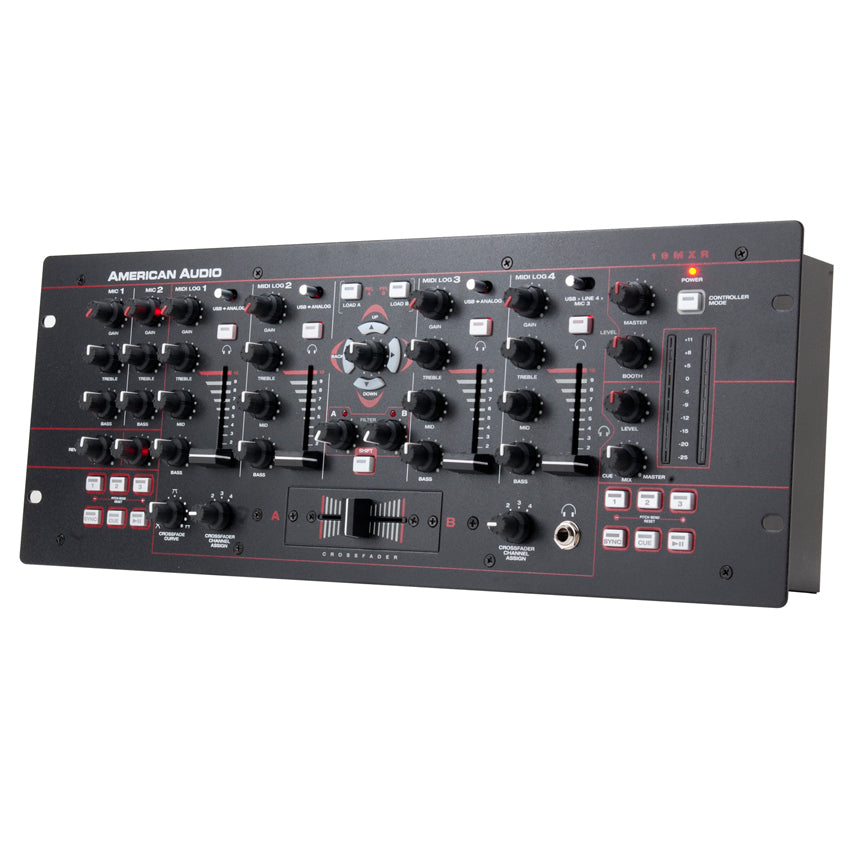

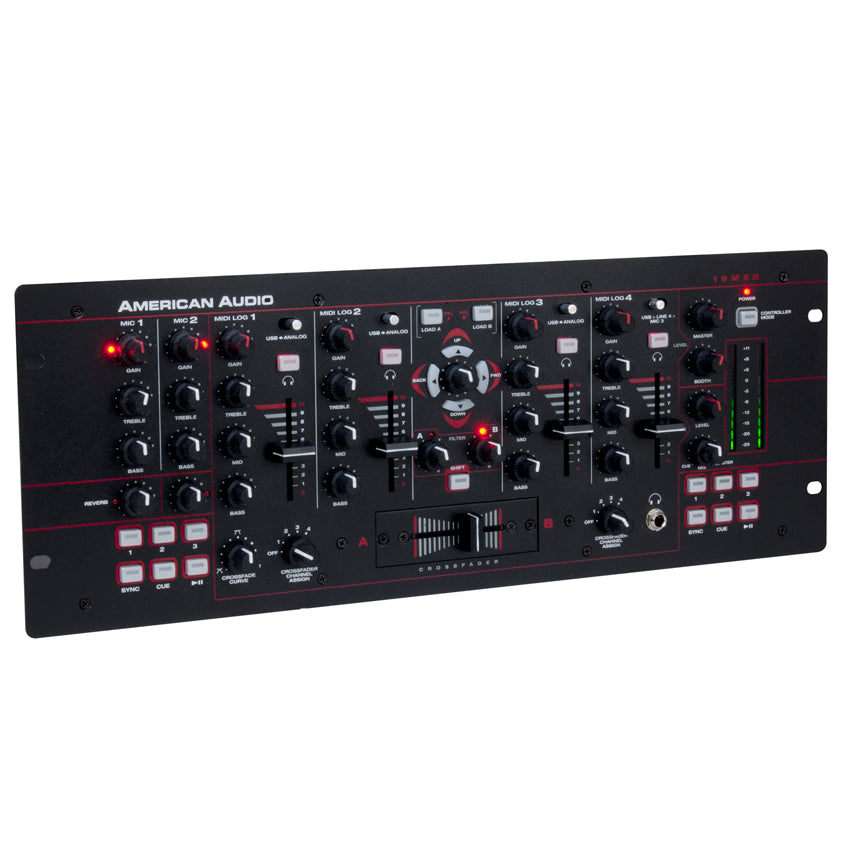

The 19 MXR is a 19-inch, 4-Channel MIDILOG™ Mixer with Midi/Analog control, built-in DSP D-Core Sound Card with 4-In/4-Out audio interface, Balanced XLR Outputs, MIDI Navigation Controls and user assignable control buttons to make it easy to customize and play your music.
Advantage Points: 380

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details


The 19 MXR is a 19-inch, 4-Channel MIDILOG™ Mixer with Midi/Analog control, built-in DSP D-Core Sound Card with 4-In/4-Out audio interface, Balanced XLR Outputs, MIDI Navigation Controls and user assignable control buttons to make it easy to customize and play your music.

Specifications

Specifications

• 19-inch, 4-Channel MIDILOG™ Mixer (compatible with any “Midi Learn” Software or Analog Inputs – such as CD Players, Turntables, etc.)
• Inputs: 4 Line, 2 Phono, 3 Mics
• 20 On-board Midi Control Buttons (Mapable)
• MIDI interface (USB MIDI I/O)
• Built-in DSP D-Core™ Sound Card with 4-In/4-Out audio interface
• Controller Mode: When activated USB output streams are routed through master and headphone outputs
• Balanced XLR Outputs
• 3-Band EQ with Rotary Kills (Treble, Mid & Bass)
• Midi Navigation Controls to allow easy software navigation of your music library
• Crossfader Curve Adjustment
• Crossfader Channel Assign
• Master, Booth, Headphone Level & Mix Controls
• Microphone Volume Control + 2-Band EQ (Treble & Bass)
• Microphone Reverb Control
• Mic 3 routed through channel MIDLOG™  4
• Crossfader Assignable Low/High Pass Filter Control
• 10 segment VU meter
• Audio inputs: RCA
• Microphone inputs: 1x Balanced XLR,  2x ¼” Balanced
• Headphone input: ¼” Stereo
• Multi-voltage operation: AC 100V~240V 50/60Hz
• Dimensions (LxWxH): 19”x7.25”x 3.5” / 482x178x85mm (19-inch R.M. – 4 spaces)
• Weight: 8 lbs. / 3.4 kg.

Specifications to change without notice.

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
19MXR User Manual User Manual Download
ASIO Drivers 1.22 ASIO Drivers 1.22 Download
Virtual DJ LE MAC V7.3 Virtual DJ LE MAC V7.3 Download
Virtual DJ LE PC 7.3 Virtual DJ LE PC 7.3 Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

how do you fix the Mic 1 input. The light does not come on when the button is pushed.

The unit would need to be opened up. It can simply be a loose solder point.

Is there any issues with USB 3.0 ports? I'm getting some distortion. Also, are there any driver updates coming? the last ones appear to be from Dec. 2012. I think Windows 10 drivers might require some tweaking.

Hello Harry,

Thank you for reaching out to us. The 19MXR will work on 3.0 USB ports as long as they’re 2.0 compliant. There are no driver updates required for Windows 10. Contact ADJ support for proper troubleshooting. Let me know if you have any further questions.

Thanks,

Windows XP 64 not working right, volume jumping and or cutting out, what is the fix. Is there another driver we should be using?

Virtual DJ 8 is compatible with Windows 7 or higher. Windows XP is not supported.

I plug in a microphone to Mic 1 input but the light doesn't come on. There is a question about this in the FAQ but it says the light does not come on when the button is pushed. I don't see a button for Mic 1

The volume knob is also a button. Please press down on the volume knob to switch Mic 1 On or Off.
