XSP-12A

(Discontinued)
SKU: XSP-12A
American Audio designed the XSP-12A speaker for use in both portable and permanently installed systems. The speaker includes a pole-mount slot and rubber feet on the bottom for portable applications. Rigging points on the top, bottom, and rear are provided and flight installations.
Advantage Points: 300

Find this Product

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

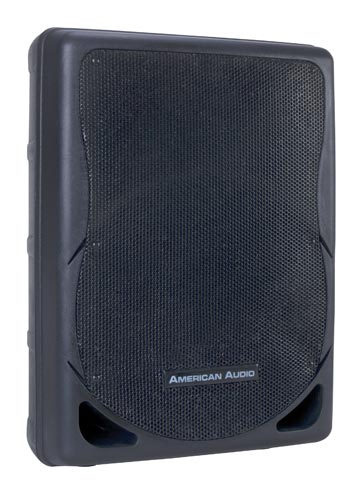

The XSP-12A from American Audio is a professional 2-way loudspeaker ideal for performances, lectures, and more. The unit has a 10" woofer and a 1" compression tweeter to deliver crisp, clear audio with a wide frequency response. Dual internal amplifiers with a total power of 200W provide strong audio with low distortion, while a time-aligned crossover ensures that each driver section performs to its maximum potential.

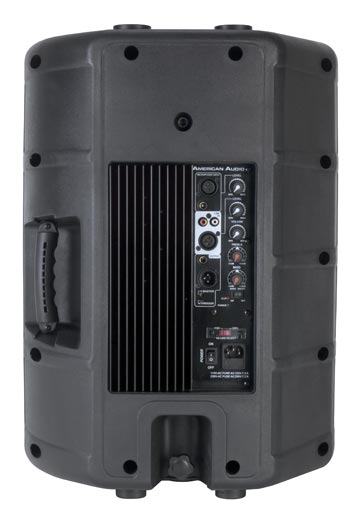

Vented bass ports help to extend low frequency response.   The rear panel features an integrated mixer complete with XLR and 1/4" mic inputs, as well as XLR and RCA line inputs. It also offers 1/4" and XLR line outputs for connecting additional speakers and devices. The mixer has treble and bass controls, plus channel and master volume controls.

The cabinet has a rugged ABS nylon fiber construction with a full grille for excellent durability on the road. An integrated handle provides easy transportation, while a pole socket and fly points let you mount the speaker on a stand or suspend it from a ceiling. The speaker has a selectable operating voltage for international use.

Specifications

Specifications

  • High-powered 12-inch, 2-way Powered Speaker
  • 300W built-in Bi-amplifier system
  • Neodymium components
  • 1.75” compression driver
  • Time Aligned Electronic Crossover
  • Flyable or Stand Mountable
  • Full grille
  • Built-in mixer with 1 Line input; 1 Mic input; Treble & Bass Control; Channel and Master Volume
  • XLR through output
  • Dimensions (LxWxH): 16” x 12” x 23” / 405x305x585mm
  • Weight: 44 lbs. / 20 kg.
SPEAKER SPECIFICATIONS:
  • Frequency Response: 20Hz - 20KHz
  • Crossover: 3.8k
  • Nominal Dispersion: 90 x 50 (HXV)
AMPLIFIER SPECIFICATIONS:
  • Power consumption: 12 Watts
  • Line: -20dB(100mV)
  • Microphone: -40dB(10mV)
  • Output Sensitivity: 97.4 ± 2dB/m/w

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
XSP-12A Cut Sheet Download
XSP-A Series User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for XSP-12A
