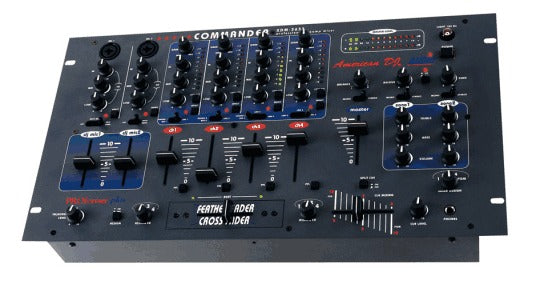

XDM-3633
This item is discontinued
XDM-3633
Sale price$0.00
XDM-3633
Specifications
- 3 phono, 6 line, 3 microphone inputs & 3 auxiliaries
- Balanced outputs
- High quality Feather Faderª for smooth, clean crossfades (replaceable/made in Japan)
- Bass, mid and treble for each channel
- 2 independent microphones with separate bass, mid & treble with Neutrikª connection - 1/4" (6.3mm)/XLR
- 2 zones with bass and treble
- Zone 2 is assignable to any of the 4 channels
- High level 1/4-inch Stereo Phone output
- Cue mixing
- Split cue for 1/4-inch Stereo Phone
- Low cut bass switch - 30dB cut feature for bass, mid and treble
- Auto mute
- Talk over level control
- Send & receive for every channel including independent mics - all selectable at the same time
- Left & right turntable ground connectors conveniently located at each end of the rear panel
- Master level LED display w/ peak hold
- Pre Fader Levels (PFL) for each channel
- Accurate beat LEDs for easy crossfades
- On/off switch for channel assign
- LED display for each channel
- Gain control for each channel
- Independent light control output for touch panels and chase controllers - 1/4" connection
- Soft-touch rubber knobs for better control
- 12V DC BNC connector for gooseneck light
- "L" shaped rear case design XDM-3633 "COMMANDER" Specif2ications:
- Line Output: 25V peak to peak, (+21.5dB)
- S/N Ratio: Line= >88dB, Mic= >78dB, Phono= >83dB,
- Channel EQ: -30dB - +20dB for bass, mid & treble
- Frequency Range: 20Hz - 20kHz, +/-1dB
- Distortion: <0.03%
- Talkover: -15dB
- 1/4-inch Stereo Phone Jack Impedance: 16 Ohms
- Power: 110V/220V switchable
- Crossfader: FF-2
- Dimensions: 19" W x 10.5" D x 3.5" H - 482mm x 267mm x 89mm
- Weight: 12 lbs. / 5.3kg.
