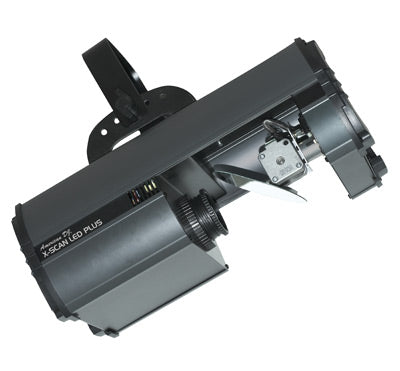

X-Scan LED Plus

UPC#: 640282001083
Advantage Points: 560
Redemption Points: 11200
SKU
XSC200

Where to Buy

Enter your zip code below to find this product at a retailer near you!

  • New advanced high performance light source - 30% brighter than the original X-Scan LED 20W LED source
  • Improved optical system – Sharper spot and better focus
  • More color saturation
  • No color ring around the spot
  • High performance mobile DMX scanner with a new advanced high performance LED source

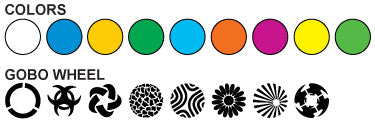

  • 8 colors + white
  • 8 gobos + spot
  • Separate Color & Gobo Wheels
  • 8 DMX Channels
  • 4-Button menu system LED Display making it easy to navigate

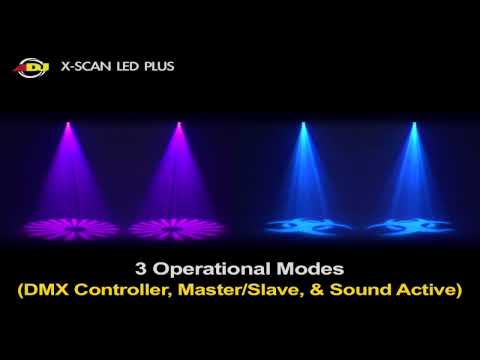

  • 3 Operational modes: DMX controller, Primary/Secondary & Sound Active
  • Built-in lighting programs
  • Pan/Tilt Inversion Mode: When using 4 scanners in Primary/Secondary scanner 1 & 3 sync opposite scanner 2 & 4
  • Sound Active
  • Audio sensitivity knob
  • Compact & portable design
  • Manual focusing lens
  • Gobo Shake effect
  • 13-degree beam angle
  • X/Y mirror movement
  • Stepper motors with micro stepping
  • DMX-512 protocol
  • Fan cooled
  • Hanging Bracket Included
  • Power consumption: 40W
  • Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
  • Multi-voltage operation: 100V~240V 50/60Hz- IEC socket
  • Dimensions (LxWxH): 8"x6"x15.25" / 200x150x386mm
  • Weight: 10 lbs. / 4.4 kgs.

Videos

Downloads

The following downloads are available for this product:

Title Description
X-Scan LED Plus User Manuals Download
