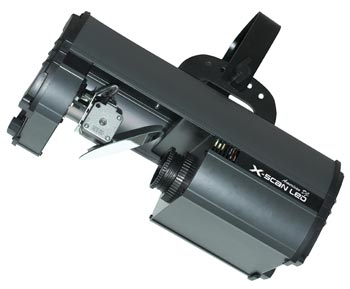

X-Scan LED

(Discontinued)
SKU:
Advantage Points: 400

Find this Product

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

  • High performance mobile DMX scanner with 1 x 20W LED source

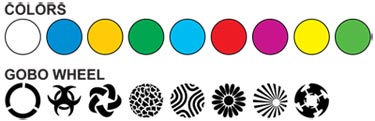

  • 8 Colors + White
  • 8 Gobos + Spot
  • Separate Color & Gobo Wheels
  • 6 DMX Channels
  • 4-Button menu system LED Display making it easy to navigate
  • 3 Operational modes: DMX controller, Master/Slave & Sound Active
  • Built-in lighting programs
  • Pan/Tilt Inversion Mode: When using 4 scanners in master/slave scanner 1 & 3 sync opposite scanner 2 & 4
  • Sound Active
  • Audio sensitivity knob
  • Compact & portable design
  • Run All Night - High velocity fan keeps unit cool - No Duty Cycle!
  • Manual focusing lens
  • Gobo Shake effect
  • Strobe effect in every color
  • 13-degree beam angle
  • X/Y mirror movement
  • Stepper motors with micro stepping
  • DMX-512 protocol
  • Fan cooled
  • Hanging Bracket Included
  • Output similar to a 250W Halogen lamp
  • Power consumption: 44W
  • Multi-voltage operation: 100V~240V 50/60Hz- IEC socket (“Auto Sensing” feature: unit automatically senses the voltage when power is connected)
  • Dimensions (LxWxH): 15” x 7.87” x 6” / 386 x 200 x 150mm
  • Weight: 10 lbs. / 4.4 kgs.
  • Optional controller: easy-to-use American DJ UC3 controller (sold separately)

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
X-Scan LED User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for X-Scan LED
