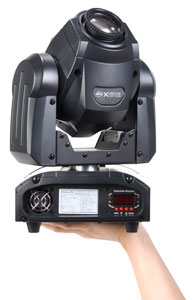

This advanced LED Moving Head provides a bright hard edge beam at a much lower power and with a much longer bulb life. Built for portability without sacrificing durability or function, ADJ's X-Move LED 25R, with its 8 colors rotating separately from its 6 replaceable gobos, will make a great addition to any light show.
Advantage Points: 450

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description


It's time to rock the show like a pro with the X-Move LED 25R by ADJ. Compliment any light entertainment system with this lightweight, compact Moving Head at a price that won't break the bank and with a low power draw. With a separate color and interchangeable gobo wheel and a poweful 25 Watt LED, the X-Move 25R has the professional features professionals require. As hot as it will get on the dance floor, with the X-Move LED 25R's high end cooling system you'll never have to worry about it overheating. On top of all that the X-Move LED 25R features a 4-button LED display menu and built-in lighting programs making it easier for you to get set up and get the party rolling. Used in conjunction with the rest of your entertainment system you'll make it a night to remember with the X-Move LED 25R by ADJ, the first in line for exceptional DJ equipment.



  •  High powered DMX-512 moving head with a bright 25W CREE white LED
  •  8 colors + white
  •  6 rotating, replaceable gobos + spot
  •  Separate Color & Gobo Wheels
  •  Gobo scroll mode
  •  17-degree beam angle
  •  Auto X-Y repositioning
  •  9 DMX Channels
  •  3 Operational modes: DMX-512, Master/Slave & Sound Active
  •  4-Button menu system LED Display making it easy to navigate
  •  Built-in lighting programs
  •  Gobo Shake effect
  •  Gobo size: 23.8mm (19mm viewable / 0.2mm thickness)
  •  540° pan / 270° tilt (8-bit)
  •  Manual Focus
  •  Shutter: Pulse effect; random strobe slow to fast
  •  Dimming: 0% - 100%
  •  Fan Cooled
  •  Stepper motors with micro stepping
  •  Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
  •  Runs extremely cool! - NO Duty Cycles! – Run all night!
  •  Power consumption: 75W
  •  Switchable voltage: (120V/60Hz or 230V/50Hz) - IEC socket
  •  LED Source: 25W CREE White LED (50,000 hour rated)
  •  Dimensions (LxWxH): 8.75” x 8” x 12.75” / 221 x 202 x 320mm
  •  Weight: 14 lbs. / 6.2 kgs.





The following downloads are available for this product:

Title Description
X-Move LED 25R User Manual Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

I plugged in one of my xmove r25 moving head lights and the unit blow, I unplugged it and plugged it back in and the unit still operates but it looks as if the led bulb has gone as it no longer lights up I am wondering where I can send the unit to be repaired


PHN# 0031 45 546 85 00


Will "Cool Ink" custom gobos work in the X-Move LED 25R, or would the LEDs run too hot and melt the gobos?

Since it is using a 25W CREE LED SOURCE it may melt plastic. Best to stick with the metal Gobos.

What is the Gobo Size for X-Move LED 25R?

Hello Ken,

Thank for reaching out to us. The gobo size is 23.8mm (19mm viewable / 0.2mm thickness)

Let me know if you have any further questions.


I search the replacement LEDs for adj x-move 25r, is on sale?

Please visit parts.adj.com
