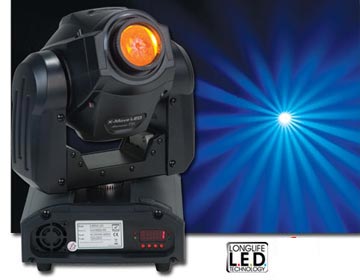

X-Move LED

(Discontinued)
SKU:
Advantage Points: 600

Find this Product

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

  • High powered DMX moving head with 20W LED source (Output similar to a 250W Halogen lamp*)

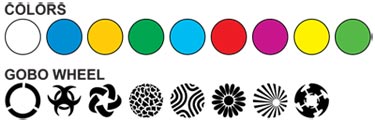

  • 8 colors + white
  • 8 gobos + spot
  • Separate Color & Gobo Wheels
  • Gobo scroll mode
  • 4-Button LED menu system making it easy to navigate
  • 14-degree beam angle
  • Auto X-Y repositioning
  • 6 DMX Channels
  • 4-Button menu system LED Display making it easy to navigate
  • 3 Operational modes: DMX controller, Master/Slave & Sound Active
  • Built-in lighting programs
  • Gobo Shake effect
  • Gobo size: 26.7mm (24.7 mm viewable gobo size)
  • 540° pan / 270° tilt (8-bit)
  • Manual Focus
  • Shutter: Pulse effect; random strobe slow to fast
  • Dimming: 0% - 100%
  • Internal programs operational via sound activation
  • Stepper motors with micro stepping
  • Power consumption: 44W
  • Multi-voltage switch: (115V/60Hz or 230V/60Hz) - IEC socket
  • Dimensions (LxWxH): 8” x 7.5” x 12.5” / 205 x 190 x 320 mm
  • Weight: 10 lbs. / 4.5 kgs.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
X-Move LED User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for X-Move LED
