X-Color LED Plus

Advantage Points: 300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

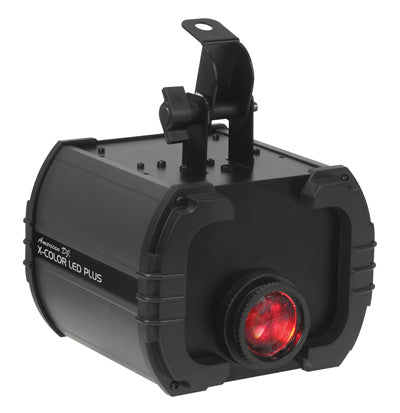

  • Hybrid high performance mobile DMX color spot & gobo projector in one with a new advanced high performance LED source

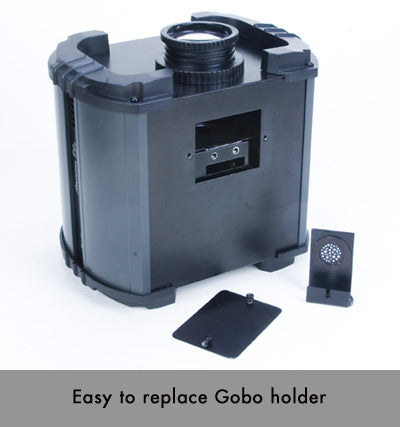

  • Includes one replaceable gobo pattern (Gobo size: 22.5mm; Viewable size: 17mm)
  • 3 DMX Channels: Color, Dimmer & Strobe

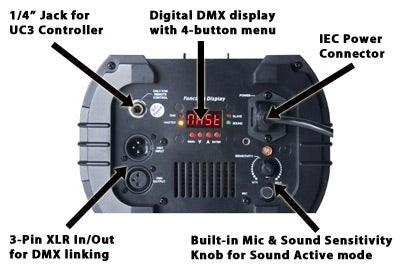

  • 4-Button menu system LED display making it easy to navigate
  • 3 Operational modes: DMX controller, Master/Slave & Sound Active
  • Ideal for Mobile DJs, Clubs & Bars
  • Great for projection lighting where fog can’t be used
  • Sound Active
  • Audio sensitivity knob
  • Beam Angle: 13 degree
  • Compact & portable design
  • Run All Night – High velocity fan keeps unit cool – No Duty Cycle!
  • Manual focusing lens
  • Strobe effect
  • 8 colors + white
  • DMX-512 protocol
  • Fan cooled
  • Hanging Bracket Included
  • Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
  • Power consumption: 28W
  • Multi-voltage operation: 100V~240V 50/60Hz- IEC socket
  • Dimensions (LxWxH): 7.87” x 6x 6.7” / 200 x 150 x 170mm
  • Weight: 6 lbs. / 2.4 kgs.





The following downloads are available for this product:

Title Description
X-Color LED Plus User Manual Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

I take it that if a gobo is installed it will always effect the light displayed (e.g. you cannot get it to switch between straight light (no image) and gobo (image) without installing or removing the gobo slide? What are the gobos made of and is it a simple task to design/make your own?

Yes, the Gobo will always be there to show it's shape till it is removed. The Gobos are typically made of steel taht has been LASER Cut or Acid etched. For this product making a GoBO is a Job for a Gobo Manufacturer.

Why this product isn't sell anymore? It is still a great unit to buy used or I should look forward to buy new model? Best Regards.

The reason most products are discontinued is that they are outdated.

We don't have a replacement for it at this time.
