WiFLY Par QA5

UPC#: 819730010100
Advantage Points: 380
Redemption Points: 7600
SKU
WIF068

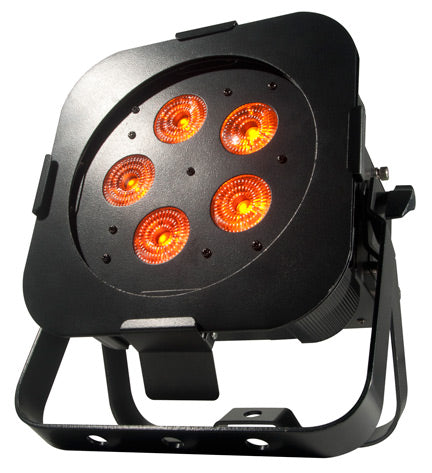

The ADJ WiFLY Par QA5 is a battery powered compact wash fixture is flicker free and with electronic dimming of zero to 100%. Perfect for those parts of the stage or club where wiring and other ways for power are inconvenient or just unsafe.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

  •  Rechargeable Lithium battery powered, with wireless DMX, slim flat par fixture with 5x 5-Watt QUAD LEDs (4-in-1 RGBA- Red, Green, Blue & Amber)

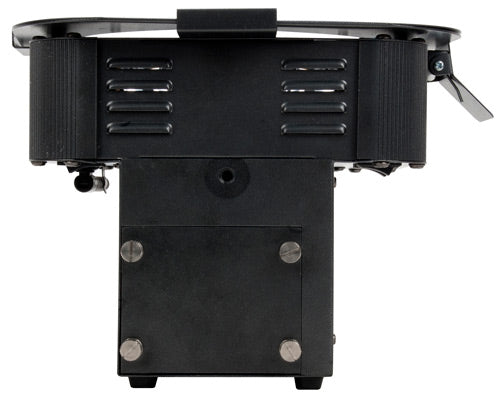

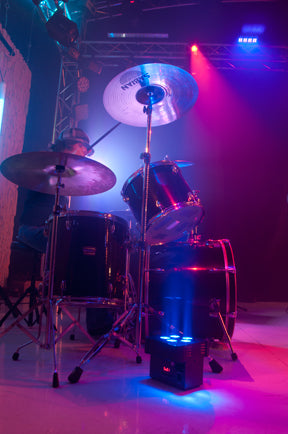

  •  Unique “sit flat” design – Power & DMX Ins/Outs are intelligently designed so the unit can be set flat on the ground or set inside truss

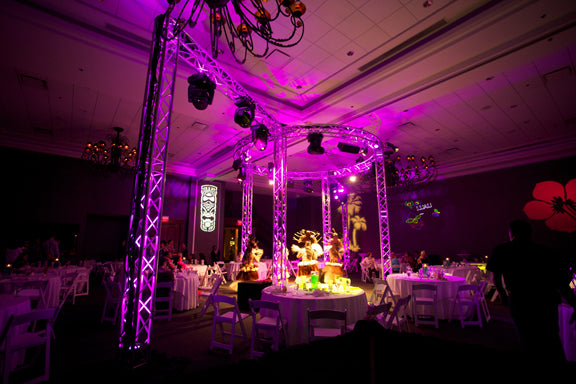

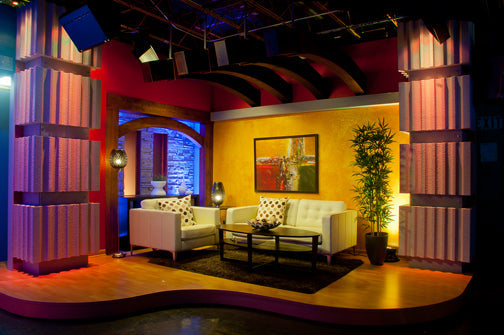

  •  Variable RGBA color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!
  •  Low profile case design
  •  Compatible with ADJ’s WiFLY Transceiver Wireless DMX onboard

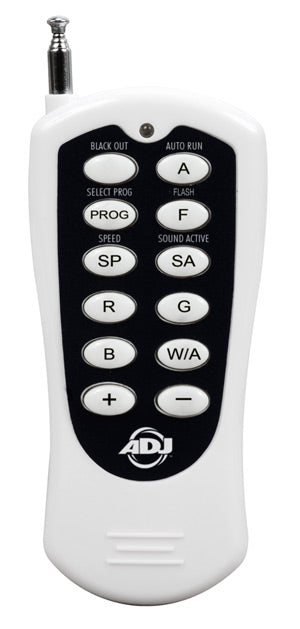

  •  Compatible with ADJ RFC wireless remote control (sold separately)
  •  8 DMX Channel modes: 1, 2, 3, 4, 5, 6, 7 or 8 channel modes
  •  6 Operational modes: Manual Color Mode; Color Change Mode; Color Fade Mode; Auto (Program Run) Mode; Sound Active Mode and DMX-512 Mode
  •  Smooth RGBA color mixing (fast or slow color change operation)
  •  QUAD LED (4-in-1) projects no RGB shadows
  •  15 built-in Color Macros
  •  LED pulse and strobe effect
  •  Flicker Free
  •  Refresh Rate: 1KHz
  •  Electronic Dimming: 0 - 100%
  •  Beam angle: 25-degree
  •  Linkable via 3-pin XLR cable (In/Out)
  •  With Wired Digital Communication Network
  •  4-button LED DMX display on rear panel
  •  Dual bracket yoke allows fixture to be hung or set on the ground
  •  IEC AC IN/OUT outlets on rear to daisy chain power (up to 10 units)
  •  Includes gel frame for optional diffusion filters
  •  Run all night – No duty cycle
  •  Long Life LEDs (50,000 hrs.)
  • Light Output: 2400 LUX @2M; 652 LUX @4M (25-degree beam)
  •  Power Draw: 55W max
  •  Rechargeable Lithium battery life: 6 hours full on (with a full charge); 9 hours charge time
  •  Multi-voltage operation: AC 100-240V, 50/60Hz (IEC power In/Out)
  •  Dimensions (LxWxH): 10.5” x 9.5” x 6.5” / 265 x 240 x 164mm
  •  Weight: 10 lbs. / 4.2 kg.
  • ETL Approved
Battery Specifications
  • Battery Charge Time: 9 Hours (Load Switch Off)
  • Battery Life: 6 Hours Full On (Full Charge)
  • Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)
  • Battery Type: Fixed Lithium Battery
  • Battery Energy: 146.52WH (Watt Hours)
  • Battery Weight: 1.8lbs. / 0.84kg
  • Battery Voltage: 22.2V
  • Battery Capacity: 6.6AH
  • Total Lithium Ion Cells: 18pcs
  • Battery Wrap Material: PVC Sleeving + Highland Barley Paper

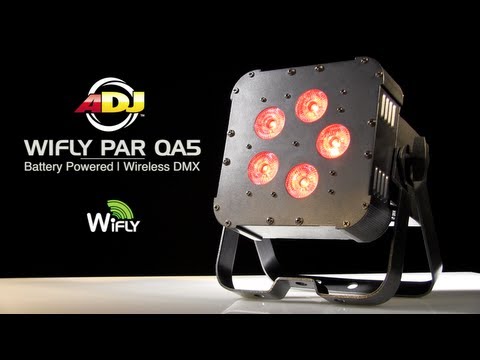

Videos

Downloads

The following downloads are available for this product:

Title Description
WiFly Par QA5 User Manual User Manual Download
The ADJ WiFLY Par QA5 is a Battery Powered compact Wash Fixture with ADJ’s WiFLY Transceiver with wireless DMX built-in. The rechargeable lithium battery is long lasting and safe to use. With a full charge you will receive up to six hours of life with nine hours needed to fully charge it back to full life.

The WiFLY Par QA5 allows you to create rich hues and smooth color mixing for stage or wall washing. The RGBA color mixing offers a seemingly unlimited color palette. The fixture uses LEDs rated at 50,000 hours with a maximum power draw of 55W. The fixture operates on AC or DC power.

You can run the device in six operational modes, Manual Color Mode, Color Change Mode, Color Fade Mode, Auto Program Run Mode, Sound Active Mode and DMX-512 Mode. Flicker free and with electronic dimming of zero to 100%. Perfect for those parts of the stage or club where wiring and other ways for power are inconvenient or just unsafe.
