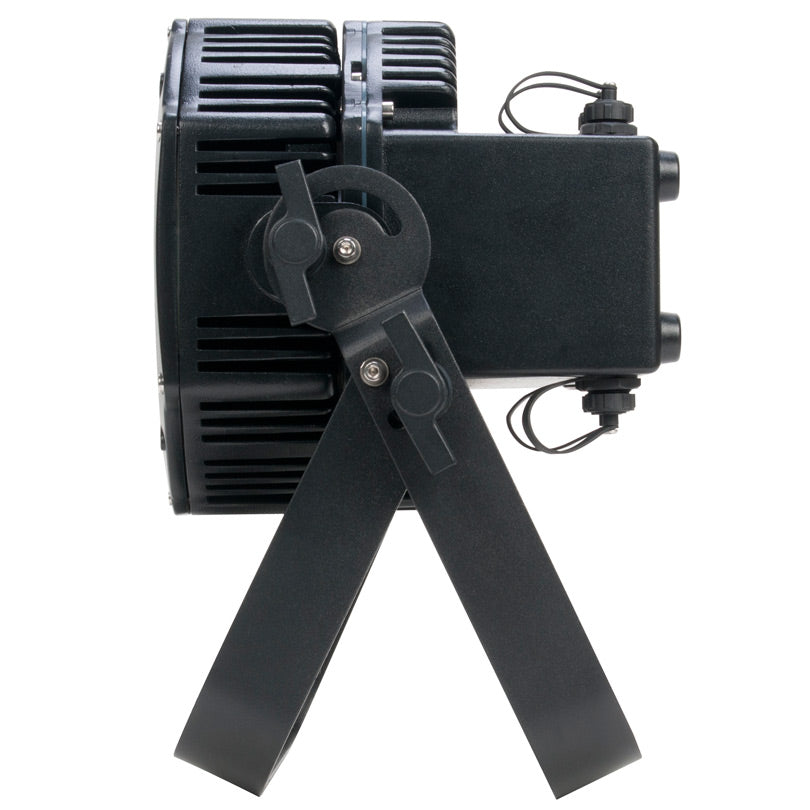

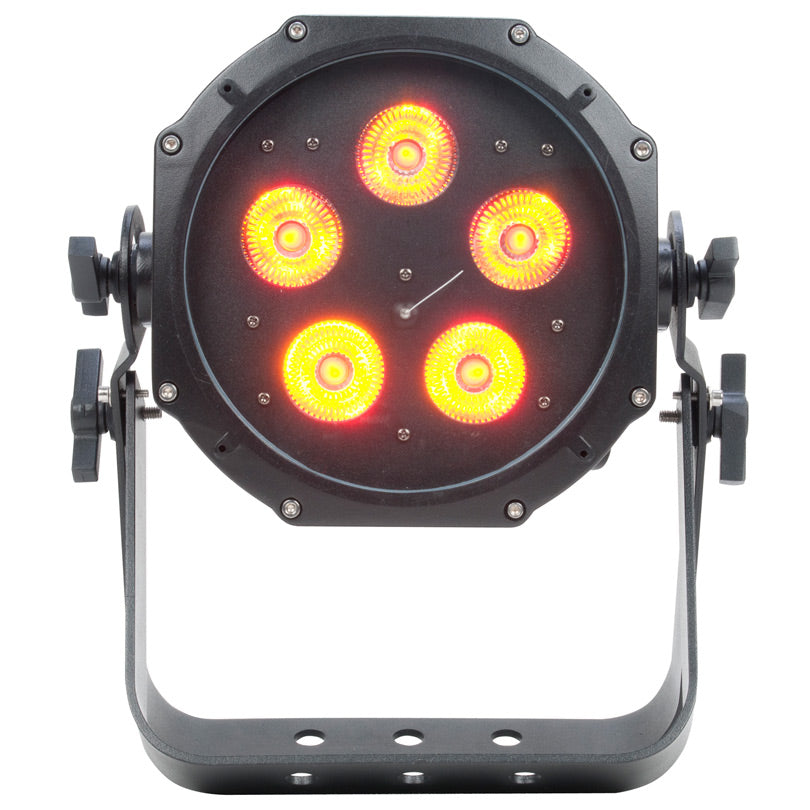

WiFLY EXR QA5 IP

UPC#: 819730014245
Advantage Points: 530
Redemption Points: 10600
SKU
WIF901

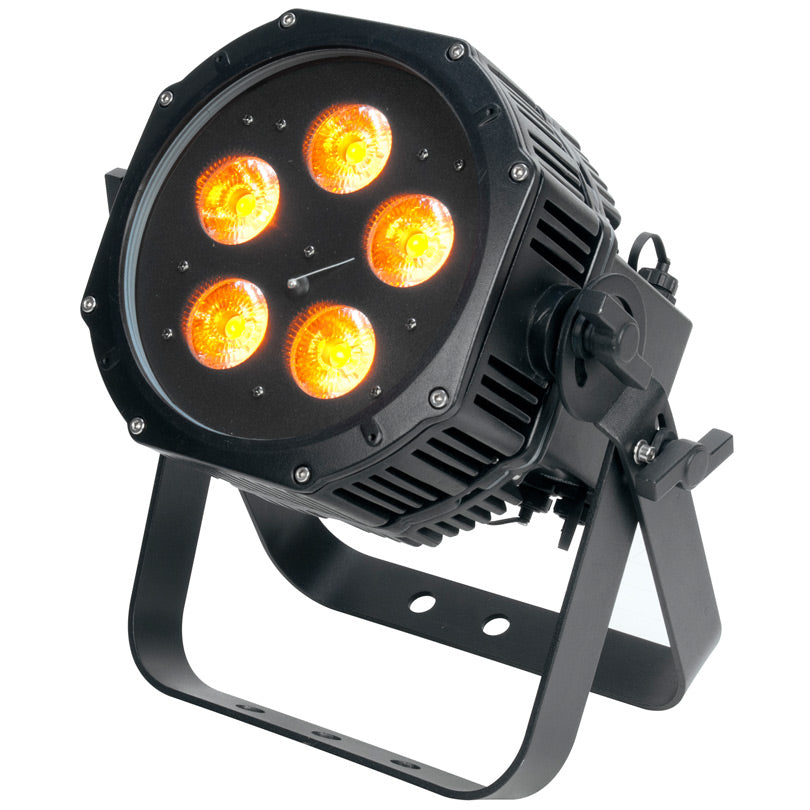

The ADJ WiFLY EXR QA5 IP is an IP65 outdoor rated compact Wash Fixture with ADJ’s WiFLY EXR extended range wireless DMX built-in and can be operated with built in battery.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

  • Light Source: 5x 5-Watt QUAD LEDs (Red, Green, Blue & Amber)
  • Rechargeable Lithium battery powered, with wireless DMX, IP65, & Outdoor Rated
  • Built-in WiFLY wireless DMX: compatible with ADJ’s WiFLY Transceiver (sold separately)
  • Extended wireless range - up to 2500 ft.
  • With Wired Digital Communication Network
  • 5 DMX Channel modes: 4, 5, 6, 10 or 11 channel modes
  • LED pulse and strobe effect / Flicker Free Operation / Electronic Dimming: 0 - 100%
  • Beam angle: 25-degree
  • 6 Operational modes
  • 64 built-in Color Macros
  • Refresh Rate: 1.44KHz
  • Light output: 2480 LUX @ 2M; 554 LUX @ 4M (25-degree beam)
  • Power Draw: 50W total (All LED’s @ Full On)
  • Multi-voltage operation: AC 100-240V, 50/60Hz
  • Power Cable Length: 1.8m (CHOGORI IP)
  • Dimensions (LxWxH): 12.25” x 11” x 7.75” in. /  310 x 280 x 194 mm
  • Weight: 12 lbs. / 5.48 kg
  • ETL Approved
Battery Specifications
  • Battery Charge Time: 5 Hours (Load Switch Off)
  • Battery Life: 5 Hours Full On (Full Charge), 10 Hours in Energy Saving Mode (Full Charge)
  • Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)
  • Battery Type: Fixed Lithium Battery
  • Battery Energy: 146.52WH (Watt Hours)
  • Battery Weight: 1.8lbs. / 0.84kg
  • Battery Voltage: 22.2V
  • Battery Capacity: 6.6AH
  • Total Lithium Ion Cells: 18pcs
  • Battery Wrap Material: PVC Sleeving + Highland Barley Paper

Videos

There are currently no videos available for this product.

Downloads

The following downloads are available for this product:

Title Description
WiFly EXR QA5 IP User Manual User Manual Download

The ADJ WiFLY EXR QA5 IP is an IP65 outdoor rated compact Wash Fixture with ADJ’s WiFLY EXR  extended range wireless DMX built-in. It offers the power of 5x 5-Watt RGBA Quad LEDs (Red, Green, Blue & Amber) to create rich hues and smooth color mixing for stage or wall washing. ADJ’s WiFLY EXR Battery Transceiver will communicate up to 2500 feet/760M (open line of sight) with the WiFLY EXR QA5 IP. For a complete wireless solution the WiFly EXR QA5 IP  also comes with built in rechargeable Lithium Battery.

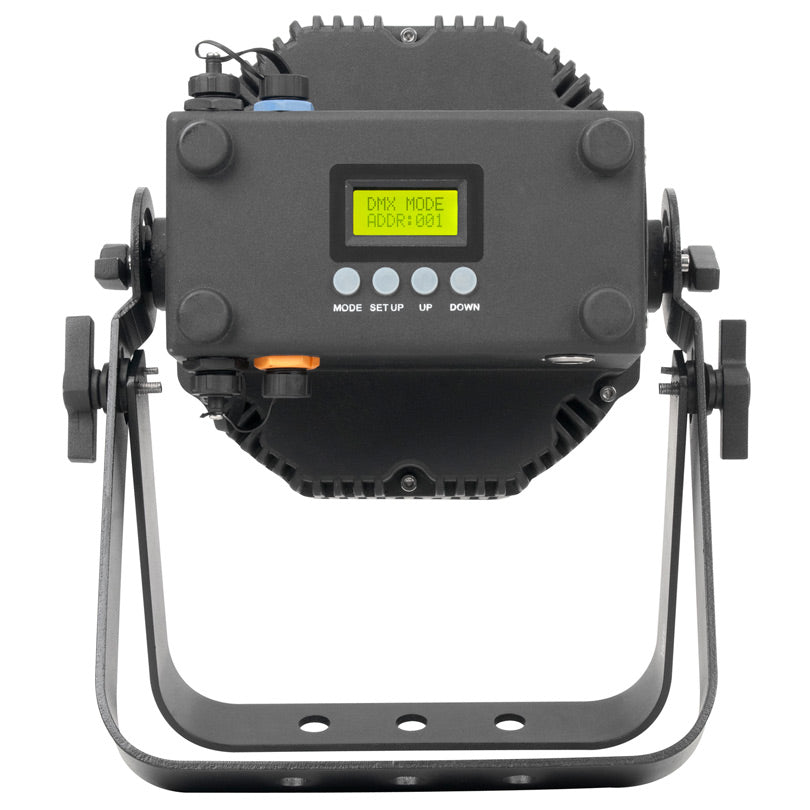

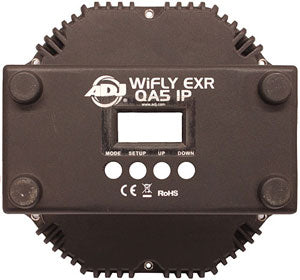

This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 50W. DMX addressing may also be changed by the unit’s 4-button LED display, or controlled by a DMX Controller by DMX cabling or via ADJ’s stand alone WiFLY Transceiver.
