WiFLY EXR HEX5 IP

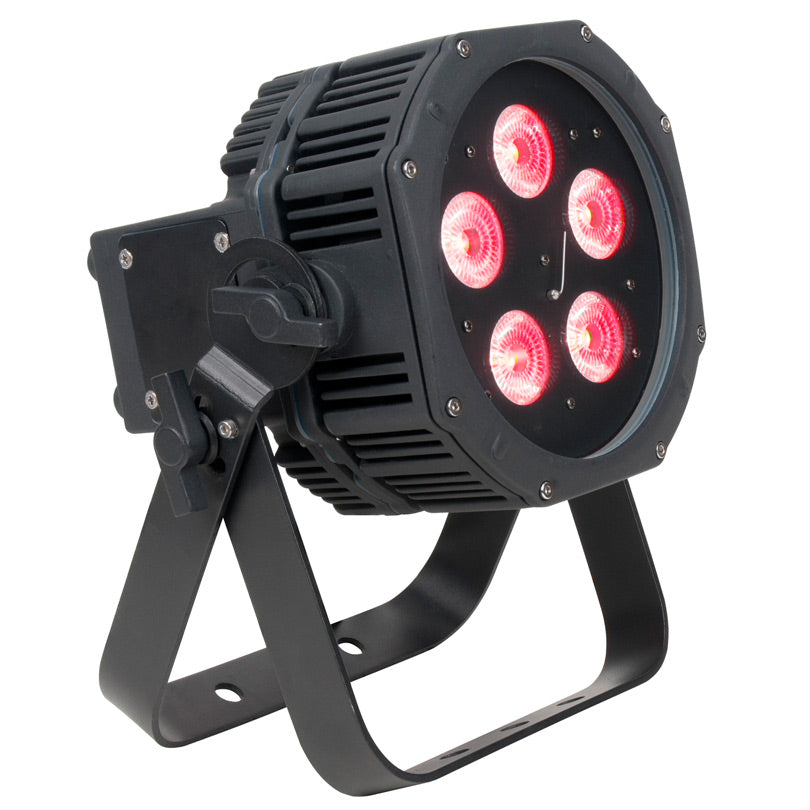

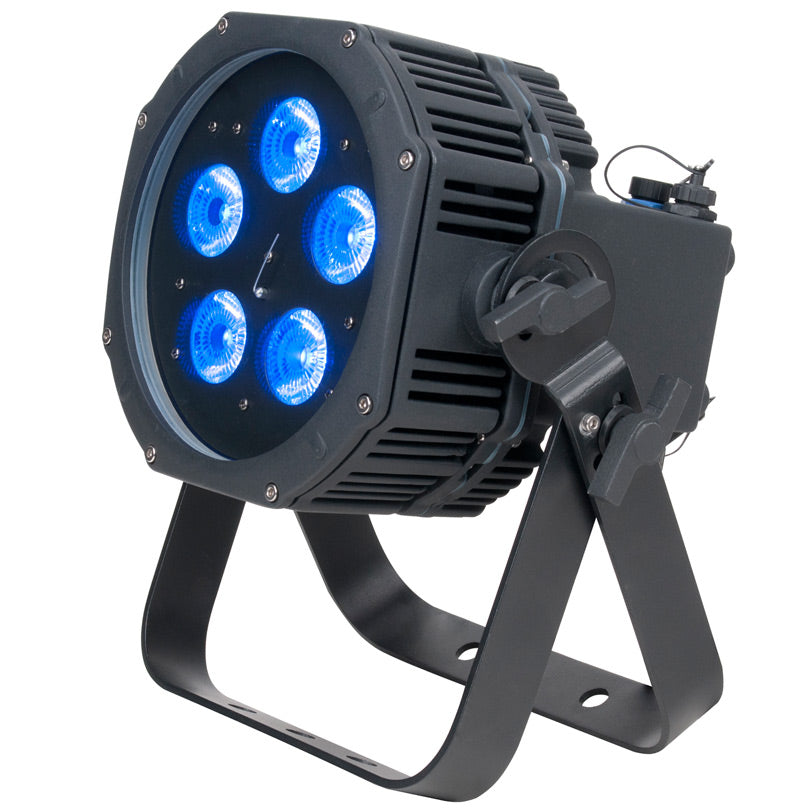

The ADJ WiFLY EXR HEX5 IP is an IP65 outdoor rated compact Wash Fixture with ADJ’s WiFLY EXR extended range wireless DMX built-in. It offers the power of 5x 10-Watt RGBWA+UV Hex LEDs (Red, Green, Blue, White, Amber, & UV) to create rich hues and smooth color mixing for stage or wall washing. ADJ’s WiFLY EXR Battery Transceiver will communicate up to 2500 feet/760M (open line of sight) with the WiFLY EXR HEX5 IP. For a complete wireless solution the WiFLY EXR HEX5 IP also comes with a rechargeable Lithium Battery.
This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 50W. DMX addressing may also be changed by the unit’s 4-button LED display, or controlled by a DMX Controller by DMX cabling or via ADJ’s stand alone WiFLY Transceiver.
• Extended range wireless DMX: up to 2,500 feet (760M) when used with ADJ's WiFLY EXR Battery Transceiver
• IP65, Outdoor Rated, par fixture with five Hex RGBWA + UV LEDs (6in- LEDs)
• Built-in WiFLY wireless DMX: compatible with ADJ’s WiFLY Transceiver (sold separately)
Variable RGBWA+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
• Compatible with ADJ RFC wireless remote control (sold separately)
• 5 DMX Channel modes: 6, 7, 8, 11 or 12 channel modes
• 6 Operational modes: Static Color; RGBWA+UV Dimmer Mode; Color Change; Color Fade; Auto Run (Program Run); and DMX Controlled
• 16 Color Change Modes
• 16 Color Fade Modes
• 64 built-in Color Macros
• LED pulse and strobe effect
• Flicker Free Operation
• Refresh Rate: 1KHz
• Electronic Dimming: 0 - 100%
• Beam angle: 40-degree
• Linkable via 3-pin IP cable (In/Out)
• 4-button DMX menu display on rear panel
• Dual bracket yoke allows fixture to be hung or set on the ground
• 4-Pin Power AC IN/OUT outlets on rear to daisy chain power (up to 10 units)
• Run all night – No duty cycle
• LED Source: 5x 10-Watt Hex LEDs (6-in-1 RGBWA+UV- Red, Green, Blue, White, Amber, & UV LEDs, rated at approximately 50,000 hrs)
• Battery Charge Time: 5 Hours (With LOAD Off)
• Battery Life: 5 Hours Full On, 8 Hours in Energy Save Mode (With Full Charge)
• Light output: 966 LUX @ 2M; 241 LUX @ 4M (40-degree beam)
• Energy Saving Mode
• Power Draw: 56W total (All LED's @ Full On)
• Power Cable Length: 1.8m (CHOGORI IP)
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Dimensions (LxWxH): 12.25” x 11” x 7.5” / 310 x 280 x 194mm
• Weight: 12 lbs. / 5.48 kg.
- Battery Charge Time: 5 Hours (Load Switch Off)
- Battery Life: 5 Hours Full On (Full Charge), 7 Hours in Energy Saving Mode (Full Charge)
- Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)

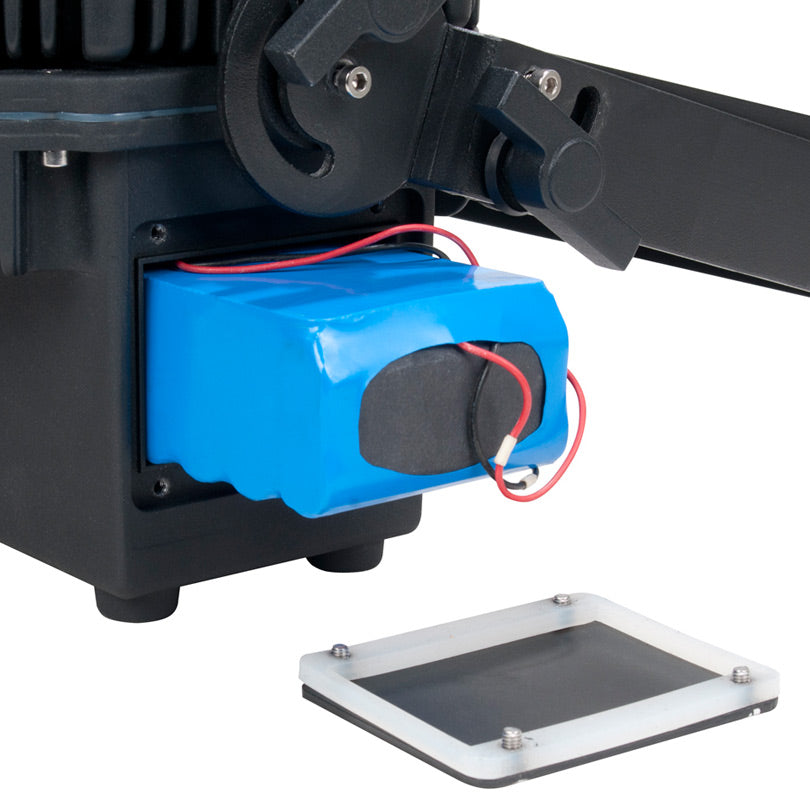

- Battery Type: Fixed Lithium Battery
- Battery Energy: 146.52WH (Watt Hours)
- Battery Weight: 1.8lbs. / 0.84kg
- Battery Voltage: 22.2V
- Battery Capacity: 6.6AH
- Total Lithium Ion Cells: 18pcs
- Battery Wrap Material: PVC Sleeving + Highland Barley Paper
There are currently no videos available for this product.
The following downloads are available for this product:
|WiFly EXR HEX5 IP User Manual||Download|
