WiFLY Chameleon

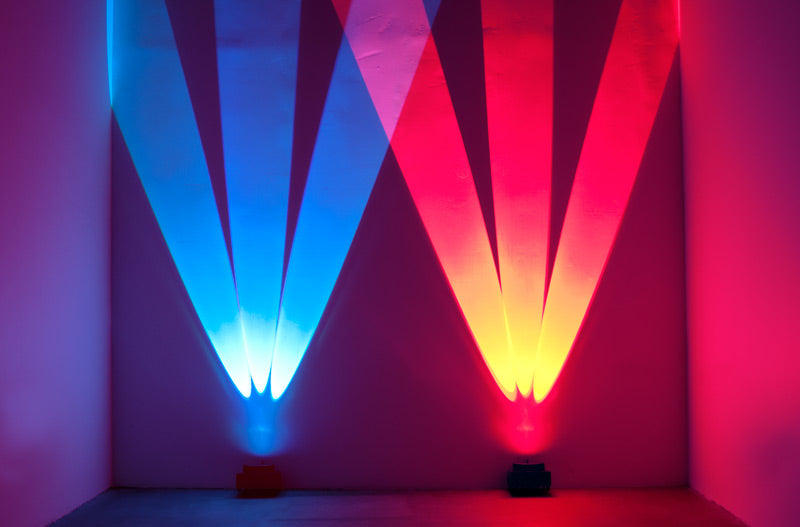

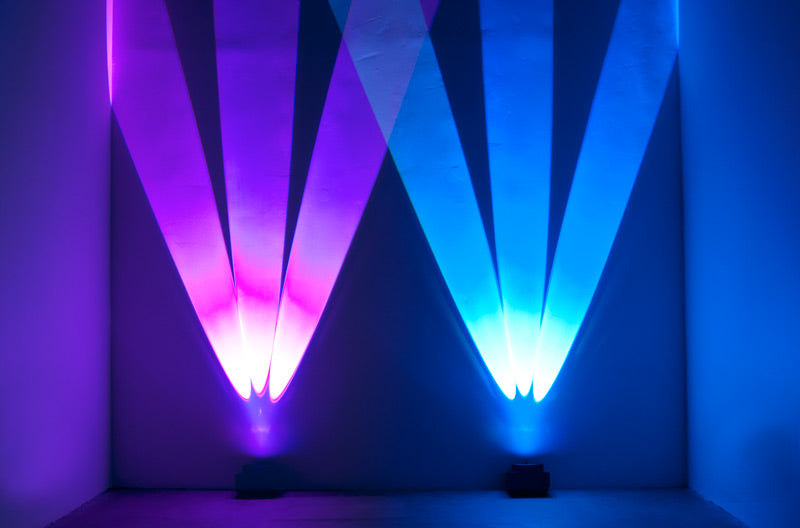

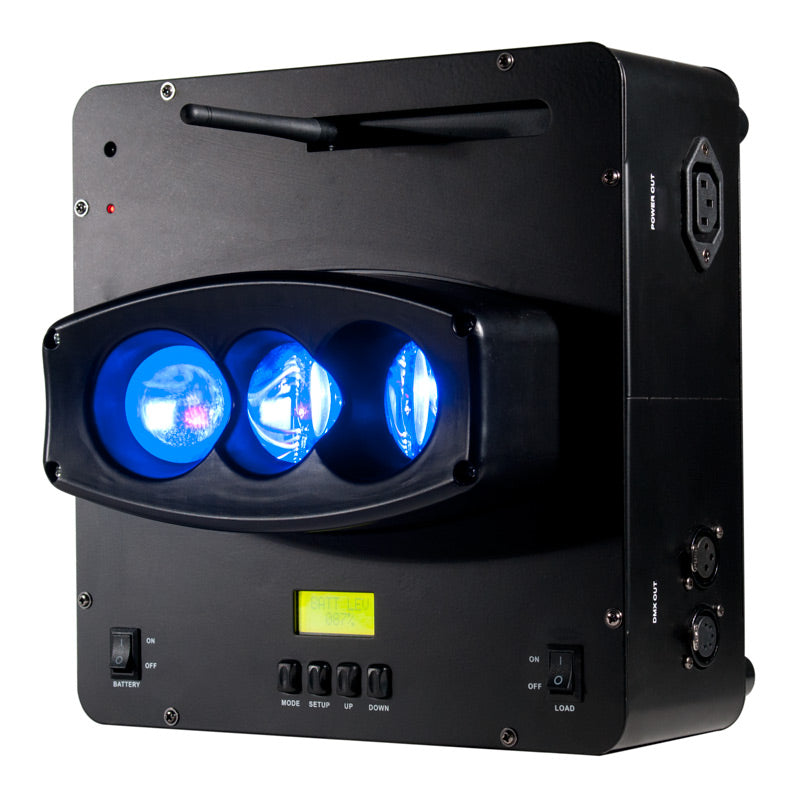

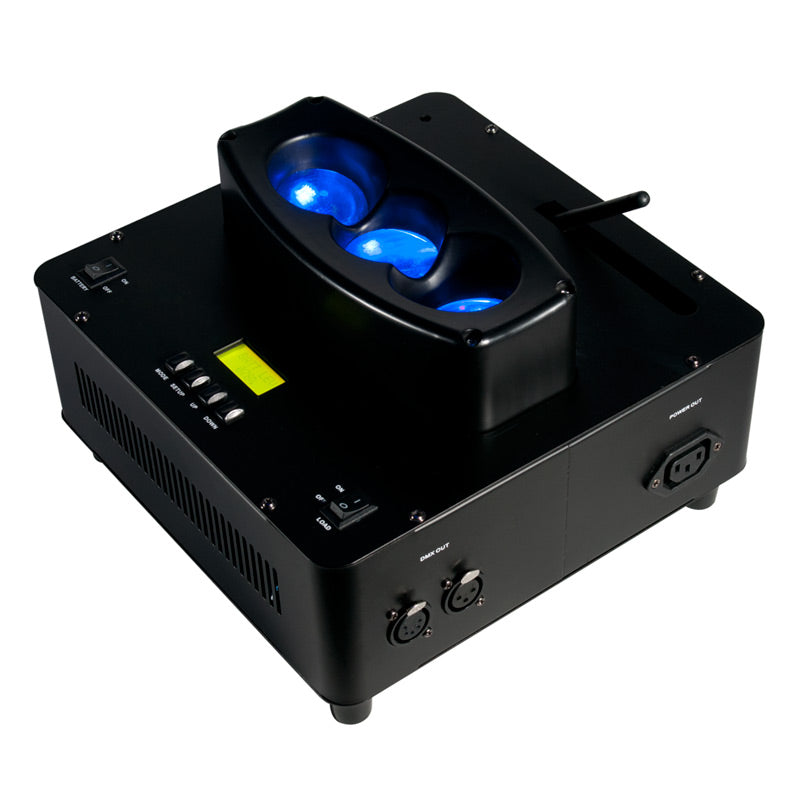

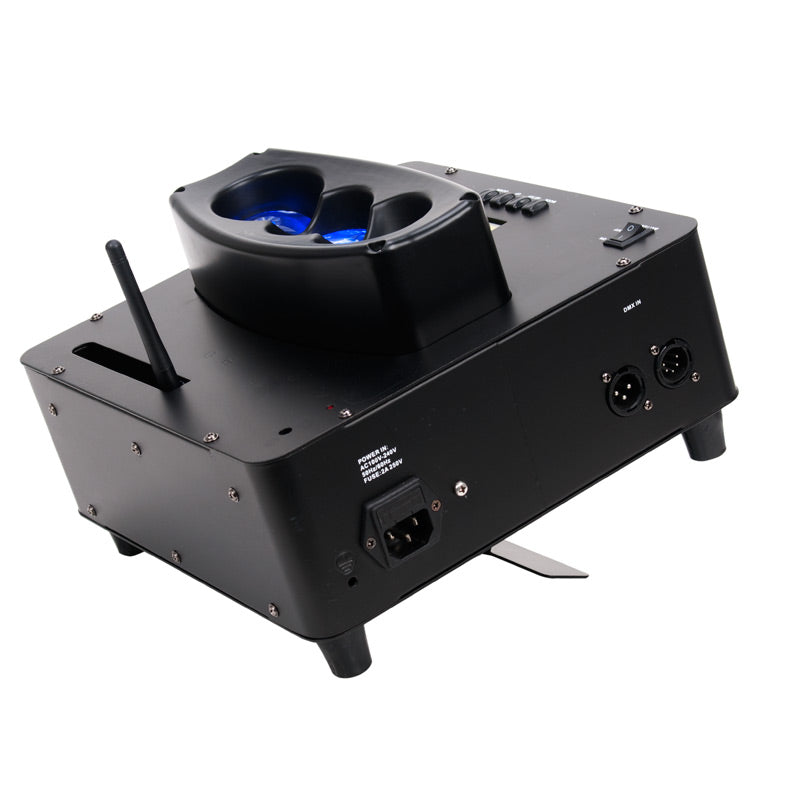

Available now from ADJ USA • $399.99The ADJ WiFLY Chameleon creates 3 beams from three lenses with offset colors for a one-of-a-kind effect. This unique wall washing fixture is powered by three 18W RGBWA+UV (6-IN-1) LEDs, has a built-in rechargeable lithium battery, and includes ADJ’s WiFLY EXR “Extend Range” wireless DMX up to 2,500 feet. There is a multi-angle kick stand on the bottom for further adjustments.
The WiFLY Chameleon has 6 DMX channel modes, 6 operational modes, 3 and 5-pin DMX and IEC In/Out to daisy chain power. Its compatible with all ADJ WiFLY fixtures and controllers.Learn more about the WiFLY Chameleon from the product spotlight article: CLICK HERE
Specifications
Features:
• Rechargeable Lithium battery powered with built-in WiFLY Extended Range wireless DMX (up to 2,500 ft)
• Replaceable Battery
• Energy Saving Mode
• Individual Pixel Control

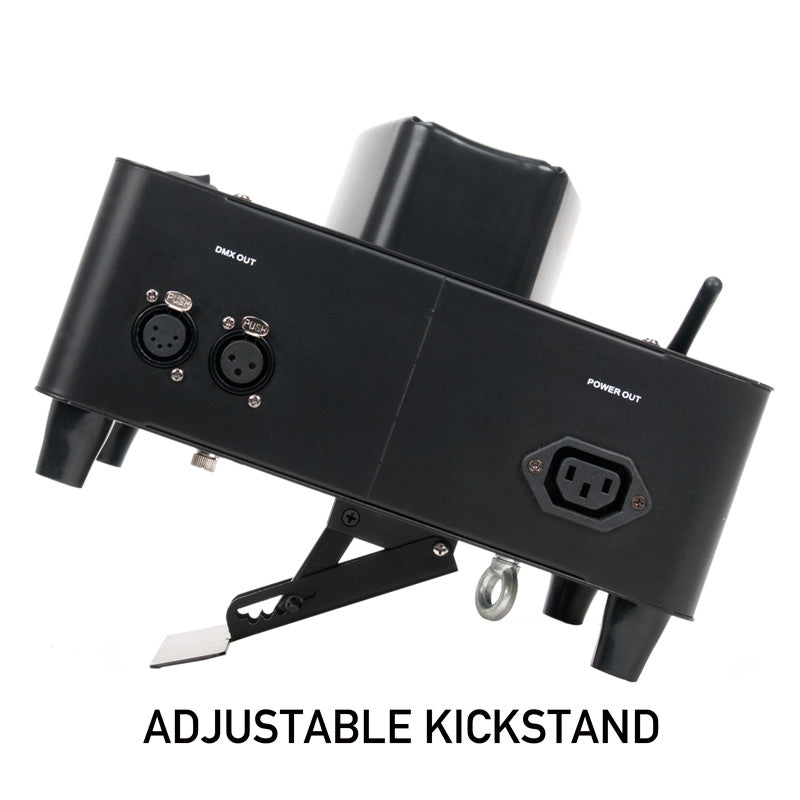

• Kick stand on rear to change fixture angle
• 2 x 8 Character LCD Display
• 22 Built-In Programs
• 63 Static Colors
• LED pulse strobe effect
• Electronic Dimming: 0 - 100%
• Compatible with all ADJ WiFLY fixtures and controllers plus the ADJ LED RC4 and UC IR wireless remotes (both remotes sold separately), and Airstream IR
Specifications:
• 6 DMX channel modes 6/7/9/11/18/20
• 6 Operating Modes: RGBWA+UV Dimmer Mode, Built-In Program Mode (22 Programs) Auto Run Mode, Static Color Mode, Sound Active Mode, DMX Control
• 15 degree beam angle
•Light Output: 427 LUX @2M; 109.7 LUX @4M (5-degree), 22.1 LUX @2M; 51.2 LUX @4M (40-degree)
• Refresh Rate: 900Hz
• DMX512 Protocol 3-pin 5-pin XLR In/Out
• With Wired Digital Communication Network
• IEC in/out to Daisy Chain Power (Connect up to 12 fixtures max.)
• Power Consumption: 57W
• Rechargeable Lithium battery life: 3.5 Hour Battery Life (Full On in Normal Mode) / 5 Hour Battery Life (Energy Saving Mode with Full Charge)
• Battery Charge Time: 3 Hours (With LOAD switch Off)
• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• Power Cable Length: 1.8m (IEC)
• 3 x 18W RGBWA+UV (6-in-1) LEDs
• Dimensions (LxWxH): 260x260x175mm / 10.25” x 10.25” x 5” / 7” H with kickstand extended
• Weight: 11 lbs. / 5.1 kg.
Battery Specifications
- Battery Charge Time: 3 Hours (Load Switch Off)
- Battery Life: 3.5 Hours Normal Mode (Full Charge), 5 Hours in Energy Saving Mode (Full Charge)
- Battery Lifetime: Average Lifetime is 500 Charges (This depends on charging frequency)
- Battery Type: Fixed Lithium Battery
- Battery Energy: 97.68WH (Watt Hours)
- Battery Weight: 1.23lbs. / 0.56kg
- Battery Voltage: 22.2V
- Battery Capacity: 4.4AH
- Total Lithium Ion Cells: 12pcs
- Battery Wrap Material: PVC Sleeving + Highland Barley Paper
Downloads
Cad drawing
Photometrics
User manual
