Vortex
UPC#: 810087371173
Advantage Points: 600
Redemption Points: 12000
SKU
VOR100

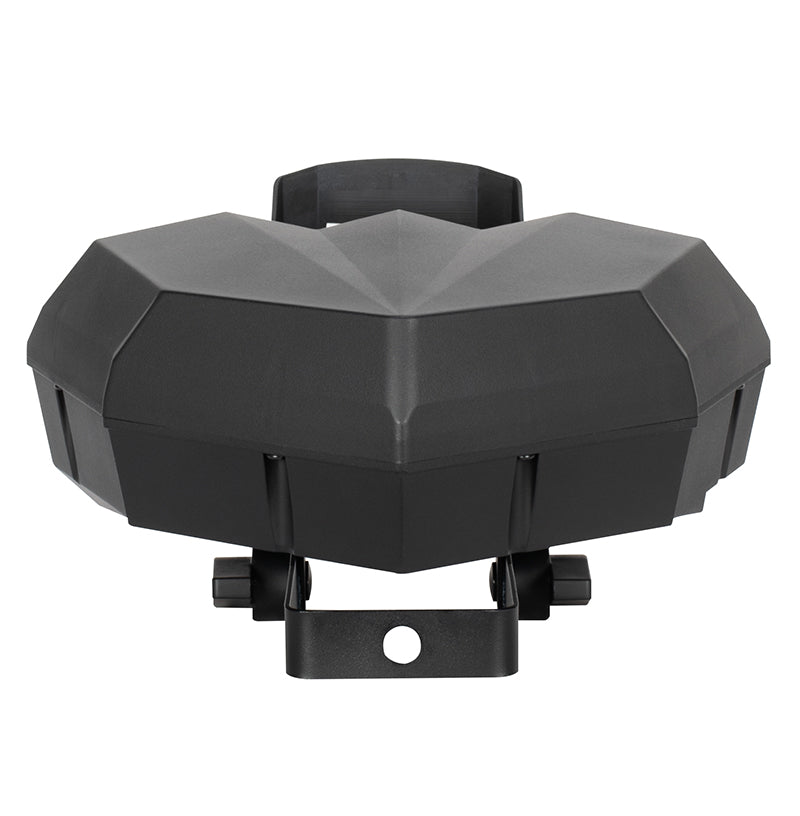

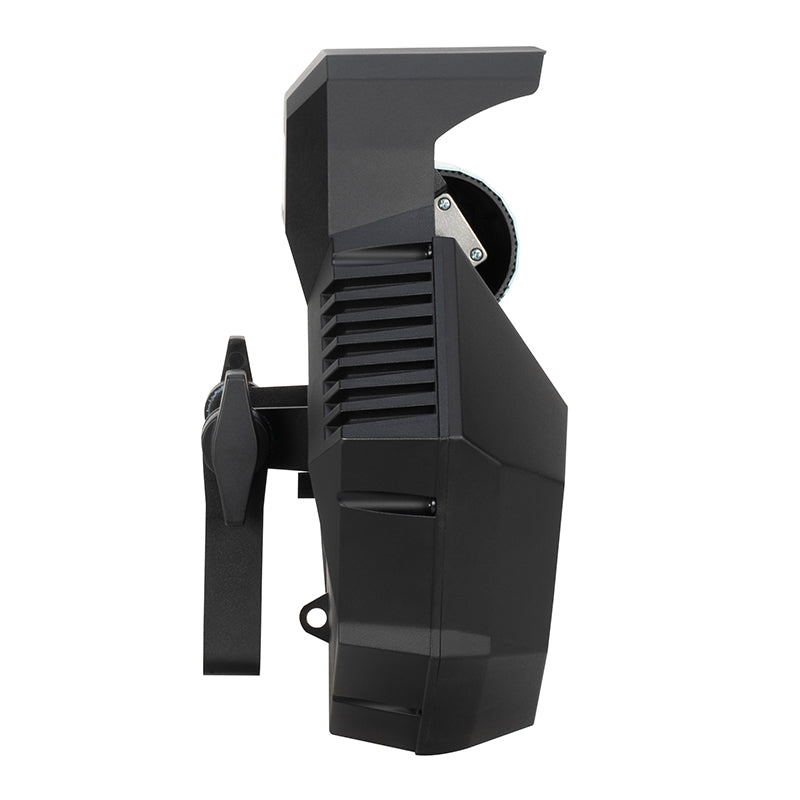

The Eliminator Vortex is a classic 80W LED moonflower effect featuring a barrel mirrored scanner.
Light Source:
• 80W White LED (50,000 Hrs.)

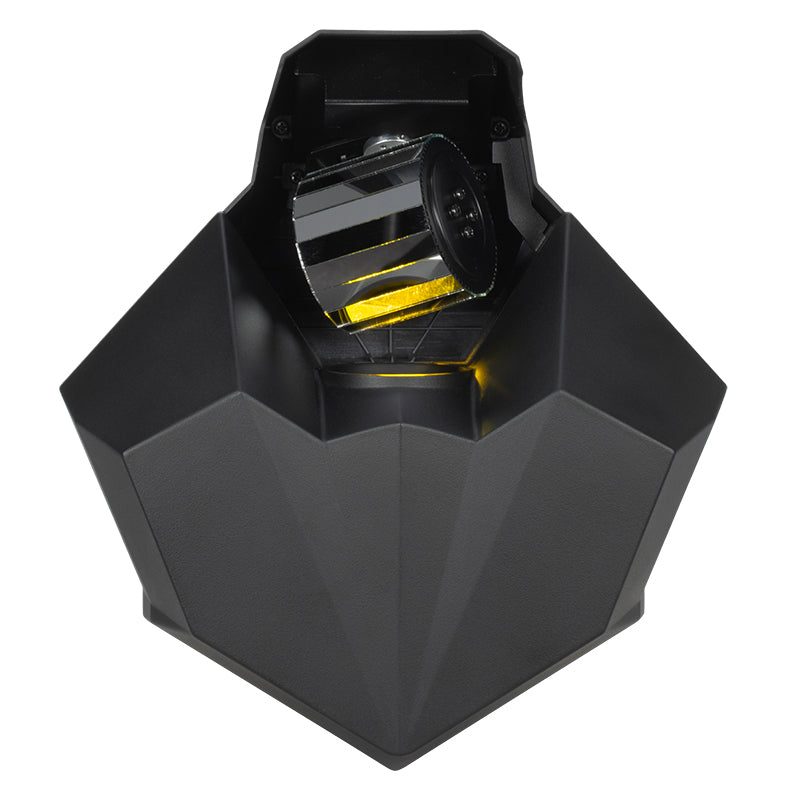

Barrel Mirror:
• Barrel Movement: X-Axis = 180°, Y-Axis 360°
• Beam Angle: Multiple Beams, 5° each
• Beam Focusing Knob
Colors/GOBOs:

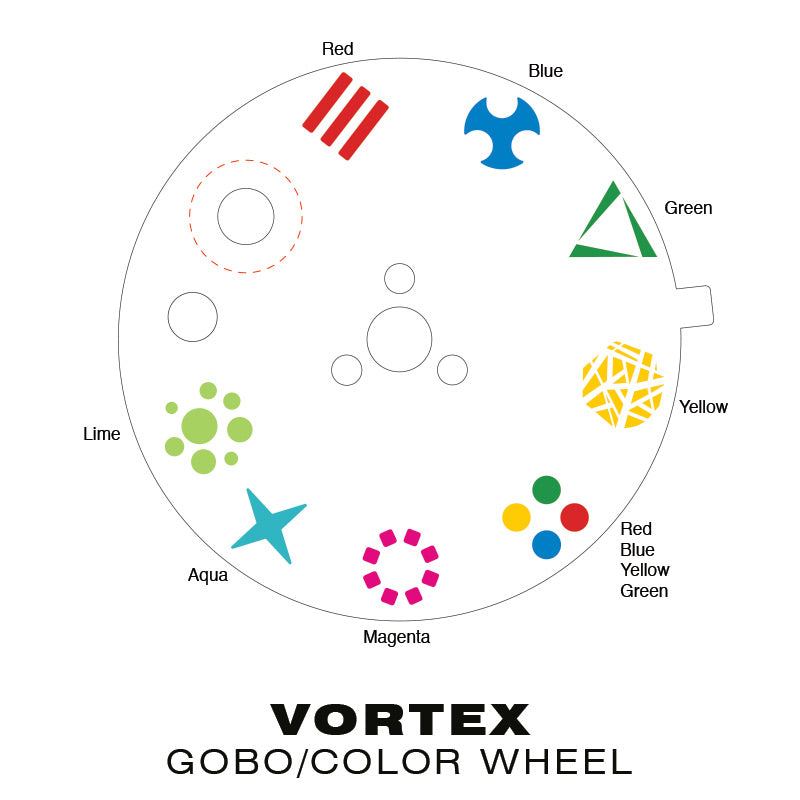

• 10 Color / Gobo combinations
• Color/Gobo Shake
Control:
• 1-40Hz Strobe Rate
• 6 Built-In Light Shows
• Control: DMX512, RDM, Sound and Show Mode
• DMX Modes: 2 DMX Control Modes (10 & 12 Channels)

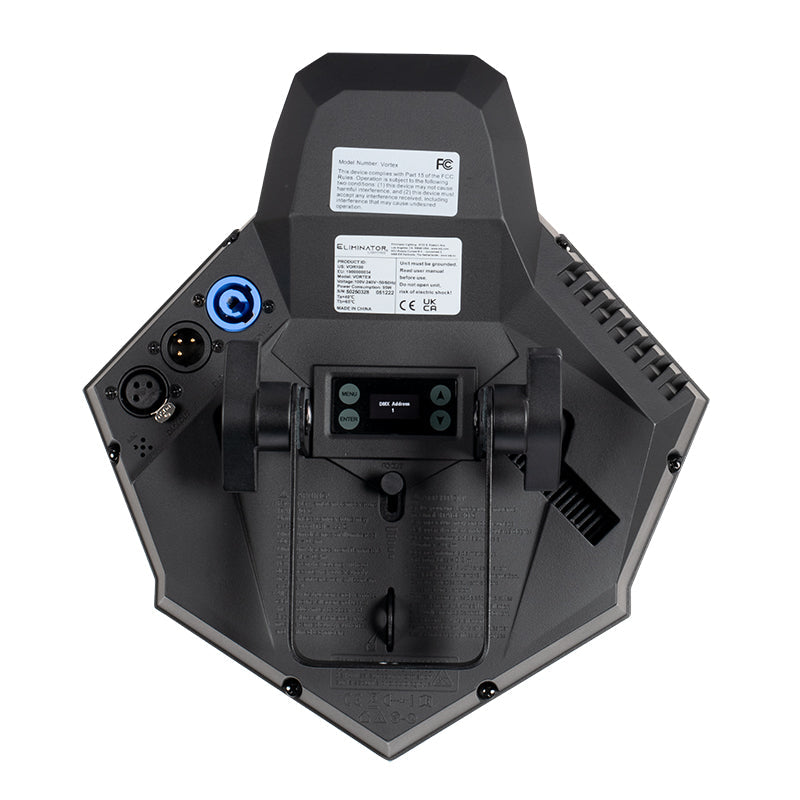

• 4-Button Digital Display
Connections:
• 3-pin DMX In/Out
• Indoor Locking power input
• Safety eye to attach a safety cable
Electrical:
• Power: 100-240VAC, 50/60HZ
• Power Consumption: 100W
Size / Weight:
• Dimensions (LxWxH): 12.3" x 11.11" x 6.2" (312x282x157mm)
• Weight: 7.1 lbs. (3.2Kg)
Approvals:
• CE and cETLus (Pending)
• IP20
Included:

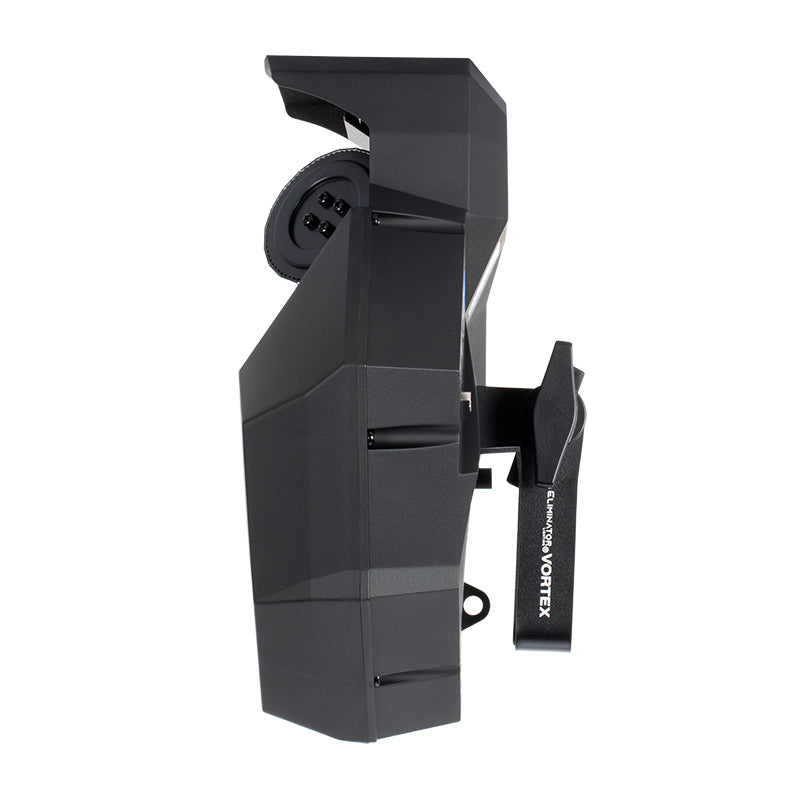

• Adjustable Angle Hanging Bracket
• Power Cable
Videos
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| Eliminator Vortex Cut Sheet | 3MB PDF File | Download |
| Vortex - 2D Cad | Vortex - 2D Cad | Download |
| Vortex - Dimensional Drawing | Vortex - Dimensional Drawing | Download |
| Vortex - User Manual | User Manual | Download |
| Vortex - DMX Traits | Vortex - DMX Traits | Download |
| Vortex - 3D Cad | Vortex - 3D Cad | Download |
Available now from ADJ USA Dealers
The Vortex may be controlled by DMX, Remote Device Management (RDM), sound activation or in show mode from a 4-buttom control menu with a digital display. The quick barrel movements run 180-degrees on the X-axis and 260-degrees on the Y-axis. The beams may be focused from manual focusing knob.
A great effect for those who love fast moving scanner, the Vortex is compact and lightweight, making it a great effect for venues with low ceilings or tight spaces, bars, lounges, roller rinks, jump parks and fun centers.
