VMS4.1

(Discontinued)
SKU: VMS743

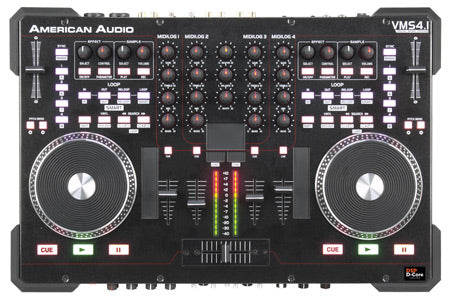

American Audio VMS4.1 -- 4 Channel Midi Controller comes bundled with Virtual DJ LE Software. The VMS4.1 features four MIDILOG Channels (compatible with any "Midi Software" or Analog Inputs - such as CD Players, Turntables, etc. ) two microphones inputs, Balanced XLR outputs, a 4 in/4 Out Sound Card built-in, and comes with American Audio's exclusive "SDP D-Core" Audio Engine inside.
Advantage Points: 500

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The American Audio VMS4.1 is designed for performance minded DJs looking for a solid, all-in-one Midi Controller to play MP3 racks from their laptop, plus have the option to add CD Players and turntables to the mix.   Some general features include 4 USB / Analog selectable Midilog (Midi & Analog) channels.  2 phone lines selectable analog channels. It also has gain/treble/mid/bass EQ on all MIDILOGTM Channels.  It has full analog mixer operation if the computer crashes or with external power supply.

Another nice feature is it has split cueing headphones with rotary mix control. The Crossfader has curve control and assign and reverse.  Master & Booth outputs with L/R balance. It has DSP D-Core inside, Studio Quality Audio Engine + Pro Stage Microphone Circuitry.  It has 34 assignable rotary controllers, 4 assignable rotary encoders. 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs.

62 Assignable MIDI buttons and switches.  Dual 2000 point resolution touch sensitive turntable scratch controllers.  Dual MISI Controls on all buttons and switches.  5 assignable linear fader controllers.  Two 10 bit resolutions pitch sliders.  Long life MIDI assignable touch strips and a built in mouse pad.

Specifications

Specifications

  • 4x Midilog™ Channels (Compatible with any "Midi Learn" Software or Analog Inputs - such as CD Players, Turntables, etc.)
  • DSP D-Core Inside: Studio Quality Audio Engine + Pro Stage Microphone Circuitry
  • 2x Mics with Gain, Treble, Mid & Bass Control
  • Crossfader Curve Adjustment
  • Balanced XLR Outputs
  • Assignable Touch Strips
  • Built-in Mouse Pad
  • Built-in 4 In/4 Out Soundcard
  • Bundled with Virtual DJ LE Software
GENERAL FEATURES:
  • Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi & Analog) channels
  • All audio control faders, knobs, switches, and buttons smoothed - eliminates popping, wiper noise, and zipper noise
  • On/Off soft startup and turnoff
  • Gain/treble/mid/bass EQ on all MIDILOGTM channels
  • 2 phono/line selectable analog channels
  • Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
  • On/off cueing on each MIDILOGTM channel
  • Split cueing headphones with rotary mix control
  • Illuminated rubber knobs for ease of use in dark environments
  • Solid 1.6mm thick faceplate for extra durability
  • Panel mounted rotary knobs
  • Full analog mixer operation if the computer crashes or with external power supply
  • Innofader replaceable crossfader compatible (sold separately)
  • Crossfader curve control
  • Crossfader assign and reverse
  • Q-Start crossfader controlled startup for 2 external audio players
  • User replaceable channel faders
  • Master and Booth outputs with L/R balance
  • Balanced Master outputs
  • 12 position stereo master output VU meter
  • Dimensions (LxWxH): 19”x12.75”x1.5” / 482x325x40mm
  • Weight: 13 lbs. / 6 kg.
MIDI FEATURES:
  • Built-in mouse pad
  • Long life MIDI assignable touch strips
  • Two 10- bit resolution pitch sliders
  • 62 assignable MIDI buttons and switches
  • 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
  • 4 assignable rotary encoders
  • 34 assignable rotary controllers
  • 5 assignable linear fader controllers
  • Dual MIDI controls on all buttons and switches
  • Dual 2000 point resolution touch sensitive turntable scratch controllers
AUDIO FEATURES:
  • 24-bit 48 kHz analog audio
  • 16-bit 44.1kHz USB audio
  • 10-bit resolution on all analog fader controls
  • THD <0.1%*
  • Channel separation >60dB*
  • S/N ratio >85dB*
  • Analog channel audio latency < 1msec
  • Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or 2 in 8 out mode for running 4 software channels and master recording
  • 2 msec response on all buttons
  • 4 msec response on all rotary and linear faders
  • 1 msec USB latency

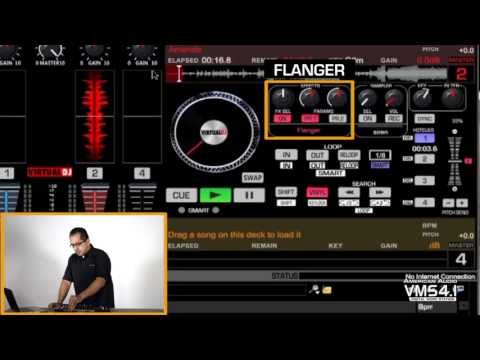

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
VMS4.1 Virtual DJ LE V7.0.5 Download
VMS4.1 Midi Table Download
VMS4.1 User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Dear Ladys and Gentlemen , I have a question for ' American Audio VMS4.1 " : Is it possible to use this controler only with a tablet with Android system, installed software ( Virtual DJ ) , or do i need a additional PC to use it. I would be grateful for an early reply , because I want to buy a Dj controller soon . Best regards , M.Hagen

This unit will only be compatible with a PC or mac.

HOW DO I GET MY VMS4.1 TO WORK ON MY Mac OS X 10.5 PPC. IS MY VMS4.1 COMPADIBLE WITH OTHER VERSIONS OFVIRTUAL DJ

Please call support at 800-322-6337 for a walk through. when you call please have the unit handy.

cuing music coming out of right headphone instead of left.

Hello Brendan,

Thank you for reaching out to us. The reason that is happening it's because you have to put it in 4 channel mode and then restaert the software again. Let me know if this helps.

Thanks

where can buy the software for vms4.1 why I lost

Hello julio,

Contact our service dept. Here is their Email: service@americandj.com
Phone: (323) 582-2650

Thanks

Hi, My VMS4.1 reset in the middle of a gig and then the cuing was full of static. Next day I uninstalled both Virtual DJ 8 and VMS4.1 drivers and reinstalled them both. VDJ 8 1st and now I have cuing music coming out of right headphones. I have to pull my jack 1/2 out for semi normal operation, Is this a known issue that can be fix using the support # or does it require repair? I purchased my VMS4.1 9/27/2014 and I recently started having other issues like, deck 1 sync and cue 4 button is unresponsive which could be the VDJ 8 software but the resetting has happened twice now. Please provide feedback on next steps? Thanks, Troy

Hello Troy,

Thank you for reaching out to us. The resetting can be caused by a power issue or bad USB cable. Make sure that the correct power supply is being used (5.9 – 6VDC 1amp) and try a new USB cable. As for the headphone issue, try a different set of headphones or cable. If the problem continues, then the product needs to be serviced. Let me know if you have any further questions.

Thanks,
