VMS4

SKU: VMS532
Advantage Points: 500

Find this Product

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

  • 4x Midilog™ Channels (Compatible with any "Midi Learn" Software or Analog Inputs - such as CD Players, Turntables, etc.)
  • 2x Mics with Gain, Treble, Mid & Bass Control
  • Crossfader Curve Adjustment
  • Balanced XLR Outputs
  • Assignable Touch Strips
  • Built-in Mouse Pad
  • Built-in Soundcard

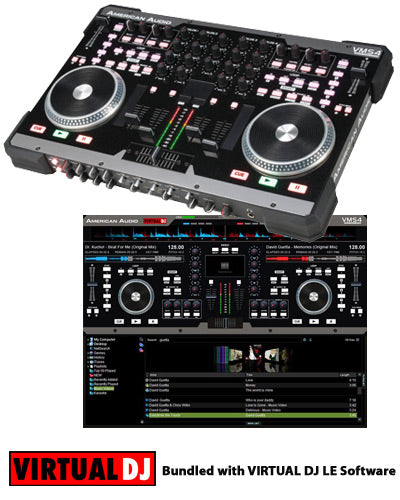

  • Bundled with Virtual DJ LE Software
GENERAL FEATURES:
  • Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi & Analog) channels
  • All audio control faders, knobs, switches, and buttons smoothed - eliminates popping, wiper noise, and zipper noise
  • On/Off soft startup and turnoff
  • Gain/treble/mid/bass EQ on all MIDILOGTM channels
  • 2 phono/line selectable analog channels
  • Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
  • On/off cueing on each MIDILOGTM channel
  • Split cueing headphones with rotary mix control
  • Illuminated rubber knobs for ease of use in dark environments
  • Solid 1.6mm thick faceplate for extra durability
  • Panel mounted rotary knobs
  • Full analog mixer operation if the computer crashes or with external power supply
  • Innofader replaceable crossfader compatible (sold separately)
  • Crossfader curve control
  • Crossfader assign and reverse
  • Q-Start crossfader controlled startup for 2 external audio players
  • User replaceable channel faders
  • Master and Booth outputs with L/R balance
  • Balanced Master outputs
  • 12 position stereo master output VU meter
  • Dimensions (LxWxH): 19”x12.75”x1.5” / 482x325x40mm
  • Weight: 13 lbs. / 6 kg.
MIDI FEATURES:
  • Built-in mouse pad
  • Long life MIDI assignable touch strips
  • Two 10- bit resolution pitch sliders
  • 62 assignable MIDI buttons and switches
  • 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
  • 4 assignable rotary encoders
  • 34 assignable rotary controllers
  • 5 assignable linear fader controllers
  • Dual MIDI controls on all buttons and switches
  • Dual 2000 point resolution touch sensitive turntable scratch controllers
AUDIO FEATURES:
  • 24-bit 48 kHz analog audio
  • 16-bit 44.1kHz USB audio
  • 10-bit resolution on all analog fader controls
  • THD <0.1%*
  • Channel separation >60dB*
  • S/N ratio >85dB*
  • Analog channel audio latency < 1msec
  • Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or 2 in 8 out mode for running 4 software channels and master recording
  • 2 msec response on all buttons
  • 4 msec response on all rotary and linear faders
  • 1 msec USB latency

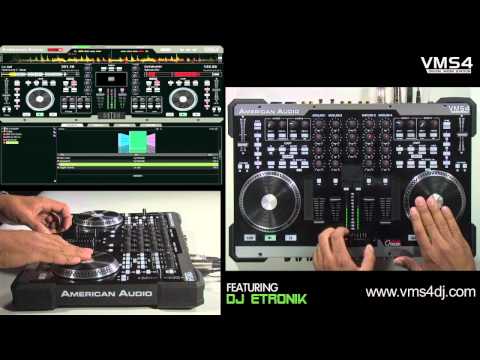

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
VMS4 User Manual Download
VMS4 Firmware 3.11 (Cue LED Fix) Download
Traktor 1.2.4 Midi Files (For Pro/Scratch/Duo) Download
ASIO Driver 1.07 (Windows PC Only) Download
VMS4 Midi Table Download
Virtual DJ LE (VMS4) Mac Version Download
Virtual DJ LE (VMS4) PC Version Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for VMS4
