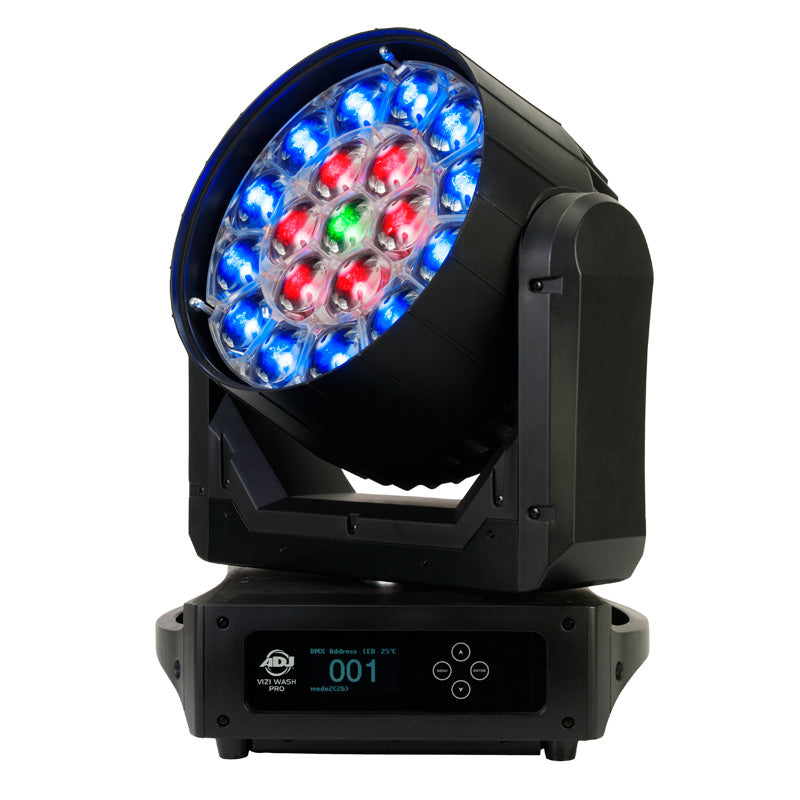

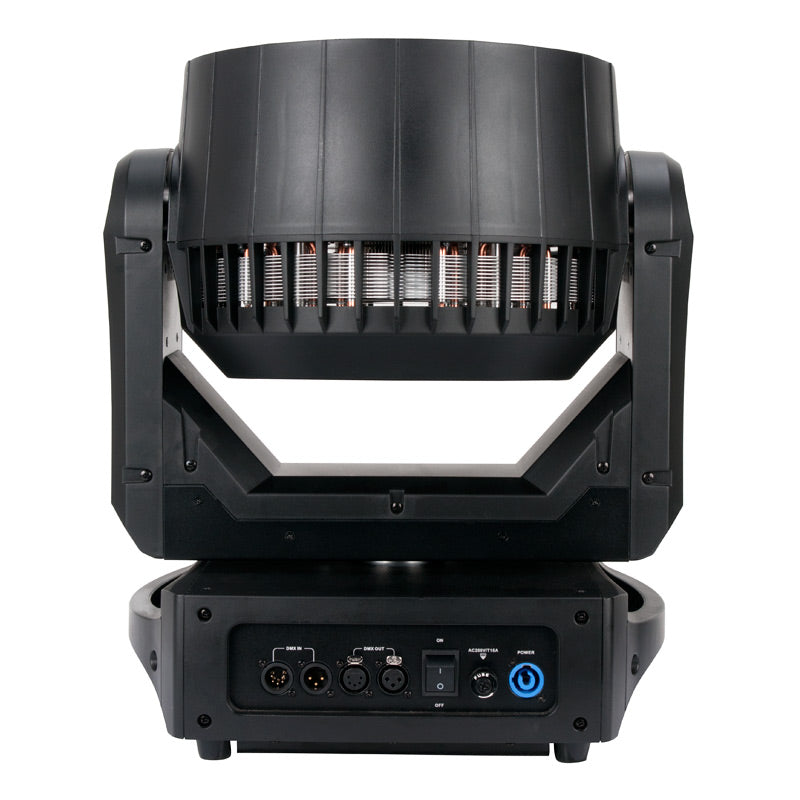

Vizi Wash Pro
Part of the ADJ Vizi Series of professional moving heads, the Vizi Wash Pro is a high output, 570W wash fixture with variable zoom. Its powered by nineteen 30W RGBW (4-IN-1 - Red, Green Blue & White) Osram LEDs rated at 50,000 hours. It creates spectacular color wash effects for mid-size to large staging applications.
It features motorized zoom from 5 ~ 50-degrees, a 3-zone ring control with eye-popping color macros, 3 DMX channel modes, 6 dimming curve modes and a 4-button touch control panel with a large LED display.

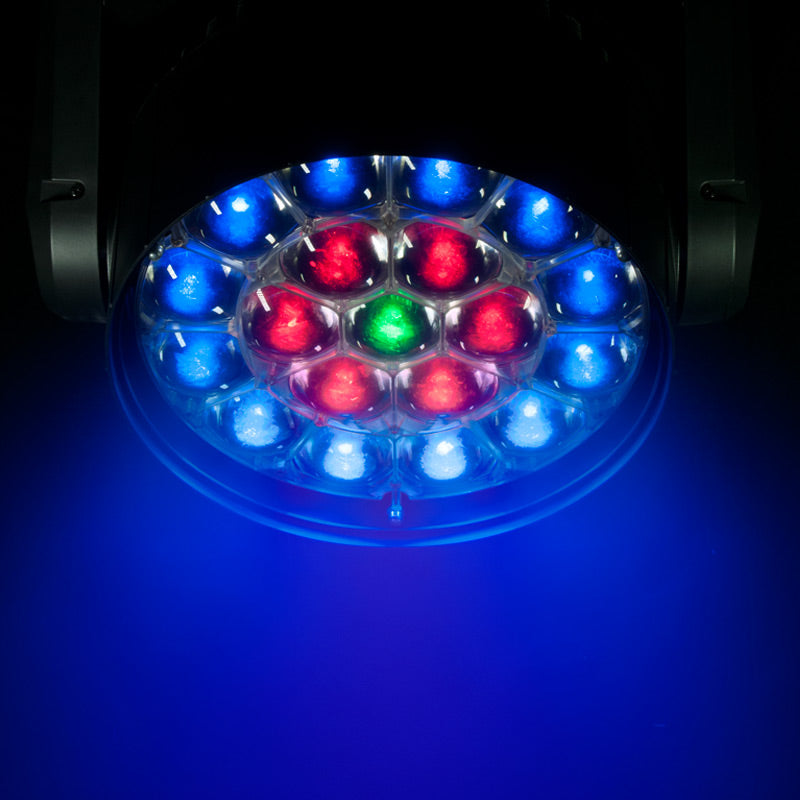

• 19x 30W RGBW (4-IN-1 - Red, Green Blue & White) Osram LEDs
• 50,000 Hour Average LED Life
• LUX: 28000 @ 5M (5-degree Zoom) Full On
• 3-zone Ring Control with Color Macros
• Variable Strobe & Pulse effects
• 32 Built-in Color Macros
• Power Input: powerCON
• DMX: 3-pin and 5-pin
• RDM (Remote Device Management)
• Motorized Linear Zoom: 5 ~ 50-degrees
• 4-button Touch Control Panel with Large LED Screen
• Control Channels: 15, 19 or 36
• DMX Modes: 3
• Control: 3-pin and 5-pin DMX
• Pan / Tilt Range: 540˚ / 270˚
• 16-bit Fine Pan/Tilt
• Pan/Tilt Inversion
• Electronic Dimming 0-100%
• 6 Dimming Curve Modes
• Master On/Off Button
• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power Draw: 725W, 6.03A @ 120V or 700W 3A @ 230V
• Dimensions (LxWxH): 13.25” x 17” x 21.25” / 335 x 430 x 541mm
• Weight: 48.5 lbs. / 22 kg.
Included in box:
• 1.5M powerCON power cord
• Two (2) Omega brackets for truss mounting
