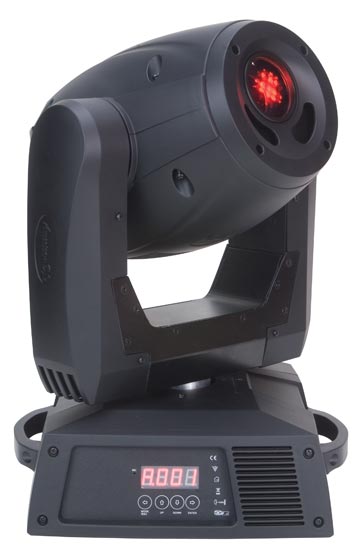

Vizi Spot 5R

Utilizing the revolutionary Philips® Platinum 5R discharge lamp technology, the Vizi Spot 5R from ADJ offers quality and power in a lighter and more compact unit. Sporting 7 dichroic colors + white and 8 interchangeable rotating gobos, this Moving Head will provide the effect you need to make the perfect light show.
Advantage Points: 1500

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description


Get your stage productions, nightclub or special event going with this professional grade fixture to enhance your light show. The Vizi Spot 5R from American DJ works great either as a standalone piece or as part of a larger light entertainment system. With its powerful Phillips Platinum 5R lamp, this fixture will provide an intense beam or clear image from short to long distances. You'll have no trouble setting up the ADJ Vizi Spot 5R in DMX mode, Master/Slave, Stand Alone or Sound Active modes with its built in LED display. Create stunning lighting effects with 7 dichroic colors + white along with 8 rotating replaceable gobos + spot and a 3 facet prism. ADJs Vizi Spot 5R is the perfect lighting solution for live events, nightclubs, corporate functions or anytime a quality spot lighting effect is required.



  •  RDMX - Remote DMX addressing (Change DMX values remotely from any DMX console)
  •  4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active
  •  13 DMX channels
  •  Gobo scroll mode
  •  LED DMX 4-Button menu system
  •  18-degree beam angle
  •  Auto X-Y repositioning
  •  7 dichroic colors + white
  •  8 rotating gobos + spot (interchangeable: 4x metal, 4x glass)
  •  3-facet prism with macros
  •  Gobo Shake effect
  •  Gobo size: 14mm (8 mm viewable gobo size)
  •  Independent gobo and color wheels
  •  Pan: 360-degree standard (540-degree optional)
  •  Tilt: 270-degree
  •  Shutter: Pulse effect; random strobe slow to fast
  •  Dimming: 0% - 100%
  •  Strobe effect
  •  Stepper motors with micro stepping
  •  Hanging bracket included
  •  3-pin XLR In/Out
  •  LUX: 2947 @ 5M
  •  Lumens: 8000 LUX
  •  Multi-voltage Operation: 115V/60Hz or 230V/50Hz (Switchable)

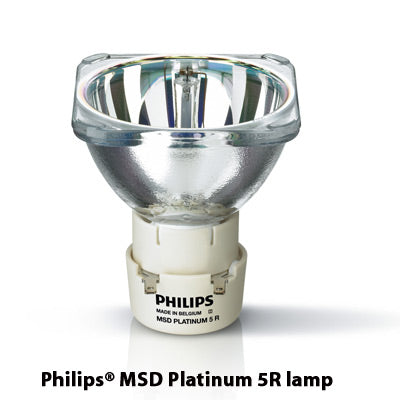

  •  Lamp: Philips® Platinum 5R discharge, 8,000°K - 2,000 hr. long life
  •  Dimensions (LxWxH): 13.25”x12.25”x17.75” / 335x310x448mm
  •  Weight: 27 lbs. / 12 kg.
  •  ETL approved





The following downloads are available for this product:

Title Description
Vizi Spot 5R User Manual Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

I was in the profile for this fixture in My dmx 2.0 and it didn't show the colors, it just came up with color 1, color 2 etc. How do i add the colors to this so it is easier to program the lights.

Please contact
