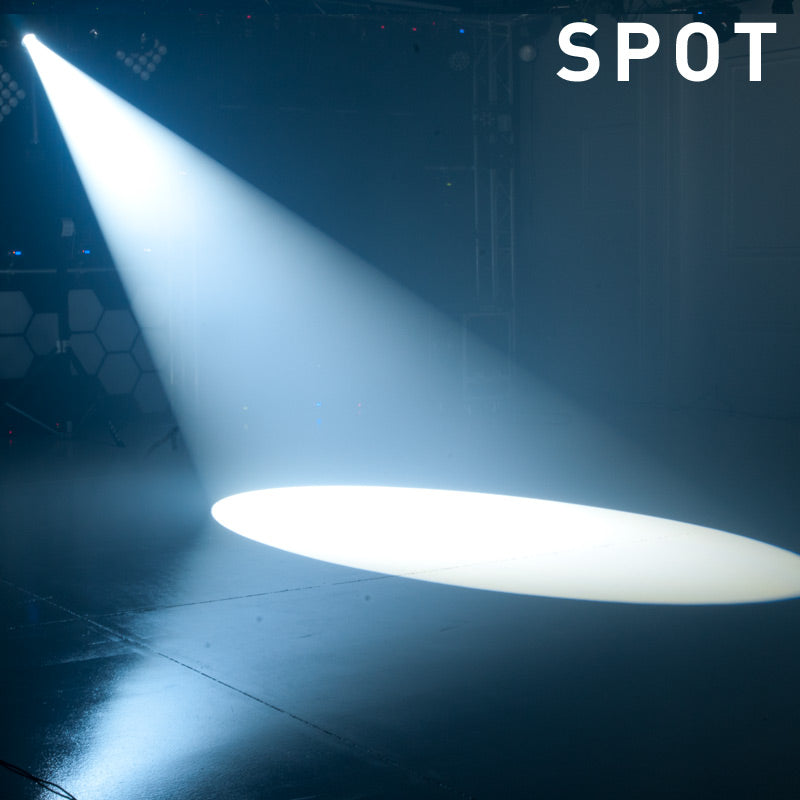

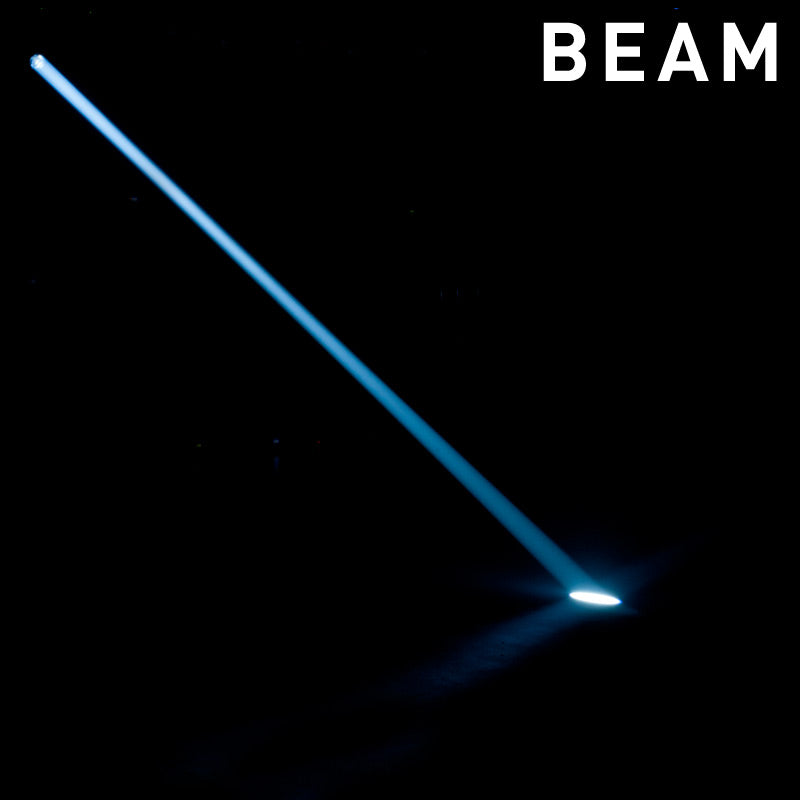

The Vizi CMY300 is ADJ’s next generation LED Hybrid moving head. It uses a specially designed 300W LED engine that offers massive output for most large venues and event productions. It is a great hybrid utility fixture as it acts as a beam, spot and wash all-in-one with a massive zoom range from 8 to 46-degrees. This allows for designers to get maximum effects from one fixture without having to crowd truss in an installation with multiple fixtures. It also allows for less fixtures to be packed in a truck for production events. What’s more, is it comes in a smaller footprint than most other movers in its class. Plus, the Vizi 300 CMY offers a CMY color mixing so designers can custom make colors to create a one-of-a-kind lightshow. The fixture has a built-in antenna with ADJ's WiFLY EXR wireless DMX that transmits a signal up to 2500 feet / 700M (line of sight).

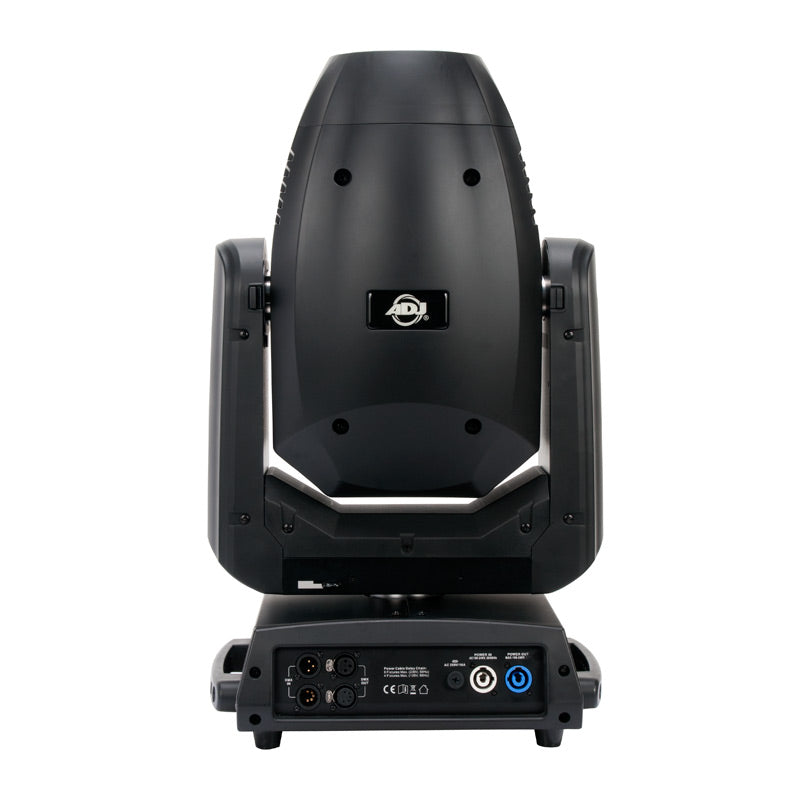

The Vizi CMY300 offers motorized focus, motorized zoom, two rotating prisms (one 6-facet linear & one 3-facet circular), 2 GOBO wheels (1 wheel fixed metal & one wheel rotating/replaceable GOBOs). There is a full color function display on the front panel, with the rear panel offering powerCON In/Out and 3-pin & 5-pin DMX connections. Under the hood, the Vizi CMY300 offers a modular design making servicing and GOBO replacement easier than ever before.
The Vizi CMY300 won the PLSN Magazine Gold Star Product Award for “Best New Club Light” at LDI 2017. Read More...
• 300W Cool White LED Engine
• 50,000 Hour Average LED Life
• Color Wheel: 9 + Open (Including: CTO 3200K & UV)

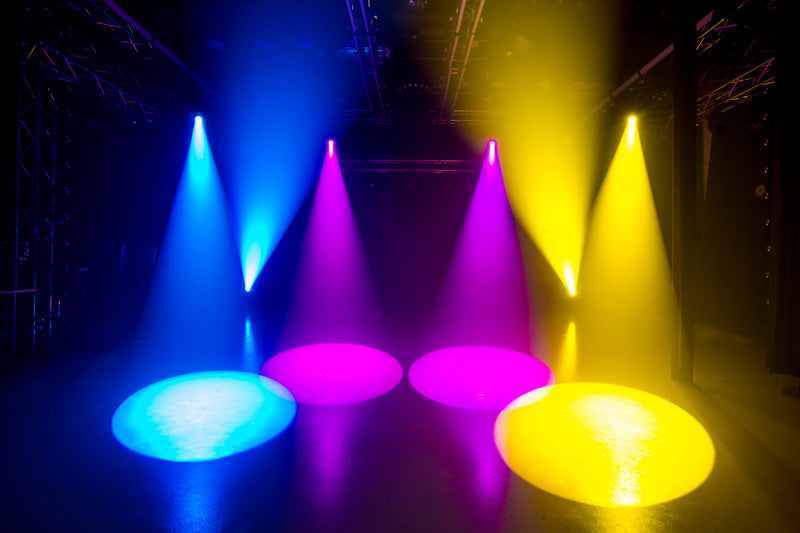

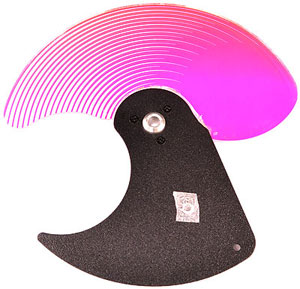

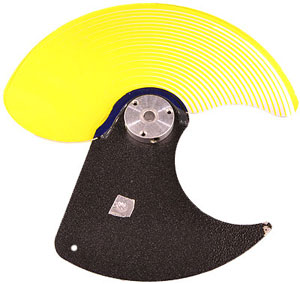

• Full CMY Color Mixing

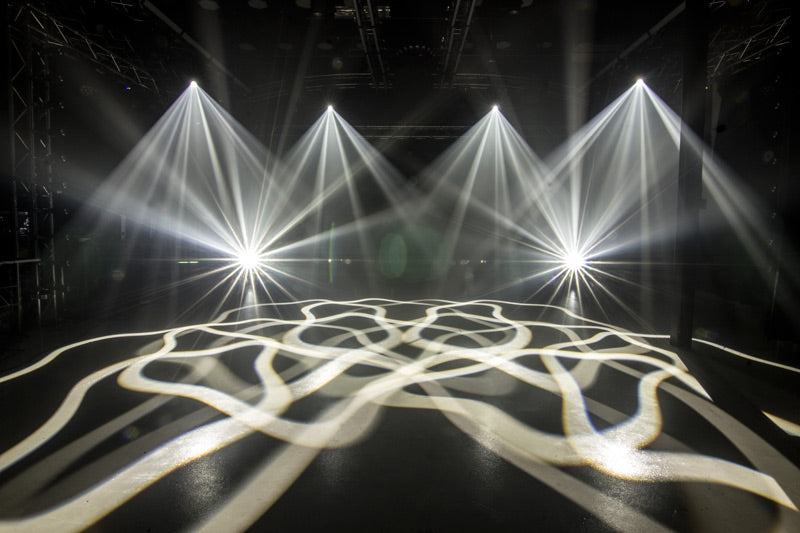

• GOBO Wheel 1: 8 Fixed + Open (1 Beam Reducers Beam Mode)
• GOBO Wheel 2: 6 Rotating/Replaceable + Open (Size: 26.8mm; Viewable: 20mm)

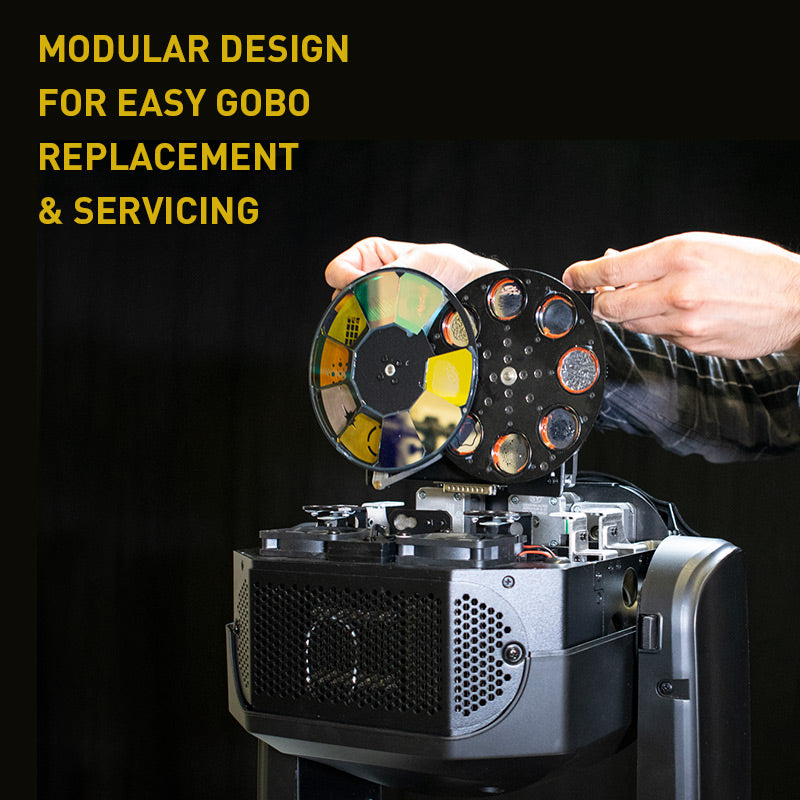

• Modular design for easy servicing and GOBO replacement
• Zoom Range: 8 ~ 46-degrees
• Iris: Motorized 5-100%
• Focus: Motorized
• Frost effect

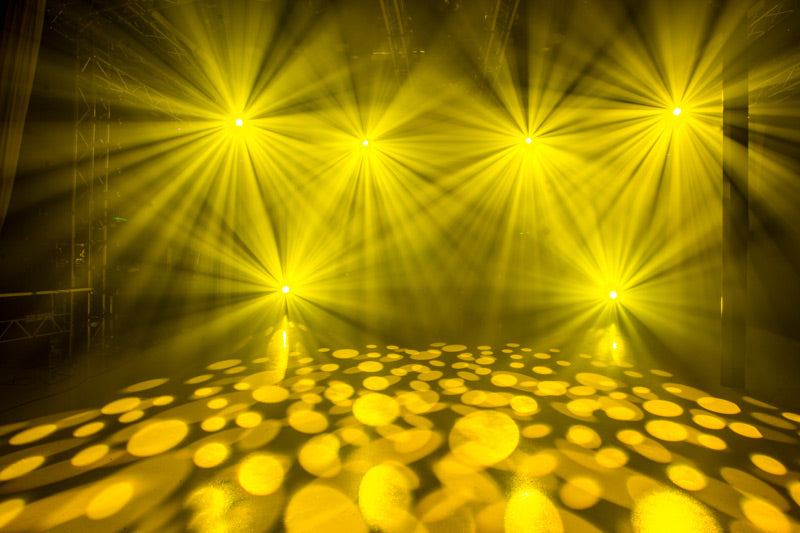

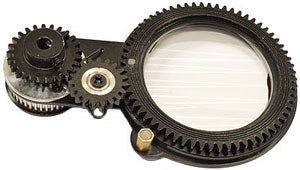

• Prism 1: Rotating 3-facet Circular
• Prism 2: Rotating 6-facet Linear Rotating
• Prism Layering
• Power Input: powerCON
• Power Pass through: powerCON @120V or 220V
• USB firmware update port
• Built-in WiFLY EXR wireless DMX (up to 2500 ft. / 700M line of sight)
• Control Channels: 21, 24 or 26
• DMX Modes: 3
• Control: 3-pin and 5-pin DMX

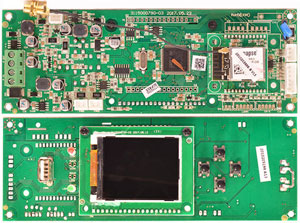

• Full color display menu
• Pan / Tilt Correction: Automatic
• Pan / Tilt Lock
• Pan / Tilt Range: 540˚ / 270˚
• Fine Tilt
• Pan/Tilt Speed: Fast to Slow
• Dimming & Fine Dimming: Electronic
• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Daisy chain max: 4 fixtures (@120V); 8 fixtures (@230V)
• Power Draw: 398W (3.31A @ 120V; 1.8A @ 220V)
• Dimensions (LxWxH): 14.75” x 12.75” x 24.5” / 370 x 325 x 619mm
• Weight: 51 lbs. / 23 kg.
