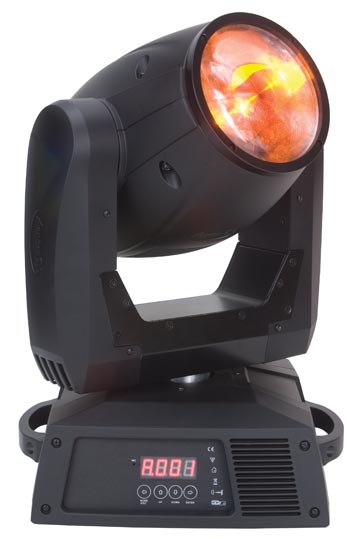

Vizi Beam 5R

SKU: VIZ478
American Dj's Vizi Beam 5R provides 12 colors using Philips® Platinum 5R lamp technology to bring you the power you need to dazzle your crowd. With excellent color saturation and a flat, even spot field, it brings the quality lighting you need to put on the show of a lifetime.
Advantage Points: 1400

Find this Product

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

When you're in need of a compact sharp beam effect for your stage production, look no further than the Vizi Beam 5R by ADJ. Weighing in at only 25 lbs., it offers superior portability when compared to other Moving Heads in the same class.  With its four operational modes and LED DMX 4-Button menu system, set-up is a breeze. This lightweight fixture packs a punch thanks to Phillips(r) Platinum 5R technology, making it ideal for any time a sharp beam is necessary.

The Vizi Beam 5R is designed with professional lighting designers in mind. Your crowd will be mesmerized by the 12 dichroic colors (plus white) and the amazing output thanks to Philips® Platinum 5R lamp technology. Because of the Vizi Beam's professional design features, top-notch materials, and easy set-up, this will provide an amazing entertainment experience. Loaded with great features and built to last, the Vizi Beam 5R from American DJ will help make your parties and shows the place to be for years to come.

Specifications

Specifications

  •  RDMX - Remote DMX addressing (Change DMX values remotely from any DMX Console)
  •  4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active
  •  12 DMX channels
  •  Gobo scroll mode
  •  LED DMX 4-Button menu system
  •  3-degree beam angle
  •  Auto X-Y repositioning
  •  12 dichroic colors + white (UV included)
  •  14 static, fixed gobos + spot
  •  3D Prism with macros
  •  Gobo Shake effect
  •  Gobo size: 6 mm viewable gobo size
  •  Independent gobo and color wheels
  •  Pan: 360-degree standard (540-degree optional)
  •  Tilt: 270-degree
  •  Auto Focus
  •  Shutter: Pulse effect; random strobe slow to fast
  •  Dimming: 0% - 100%
  •  Strobe effect
  •  Frost Filter
  •  Stepper motors with micro stepping
  •  Hanging bracket included
  •  3-pin & 5-pinXLR In/Out
  •  LUX: 99250 @ 10M, 70030 @ 15M
  •  Lumens: 8000 LUX
  •  Multi-voltage Operation: 115V/60Hz or 230V/50Hz (Switchable)

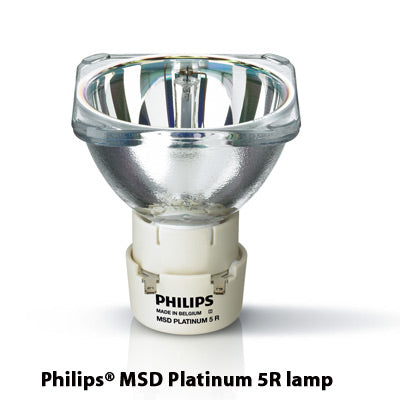

  •  Lamp: Philips® Platinum 5R discharge, 8,000°K - 2,000 hr. long life
  •  Dimensions (LxWxH): 13.25”x12.25”x17.75” / 335x310x448mm
  •  Weight: 25 lbs. / 11 kg.
  •  ETL approved

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Vizi Beam 5R User Manual Rev.10/13 Download
Vizi Beam 5R Gobos Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Vizi Beam 5R
