Ultra HEX Par 3

UPC#: 819730012289
Advantage Points: 200
Redemption Points: 4000
SKU
ULT482
The ADJ Ultra Hex Par 3 great for lighting stages and also uplighting a venue. Daisy-chain up to 20 units together and have the entire venue light up for the entire night with the long life low heat LEDs. Produce wide washes with smooth color mixing from the 63 built-in color macros.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

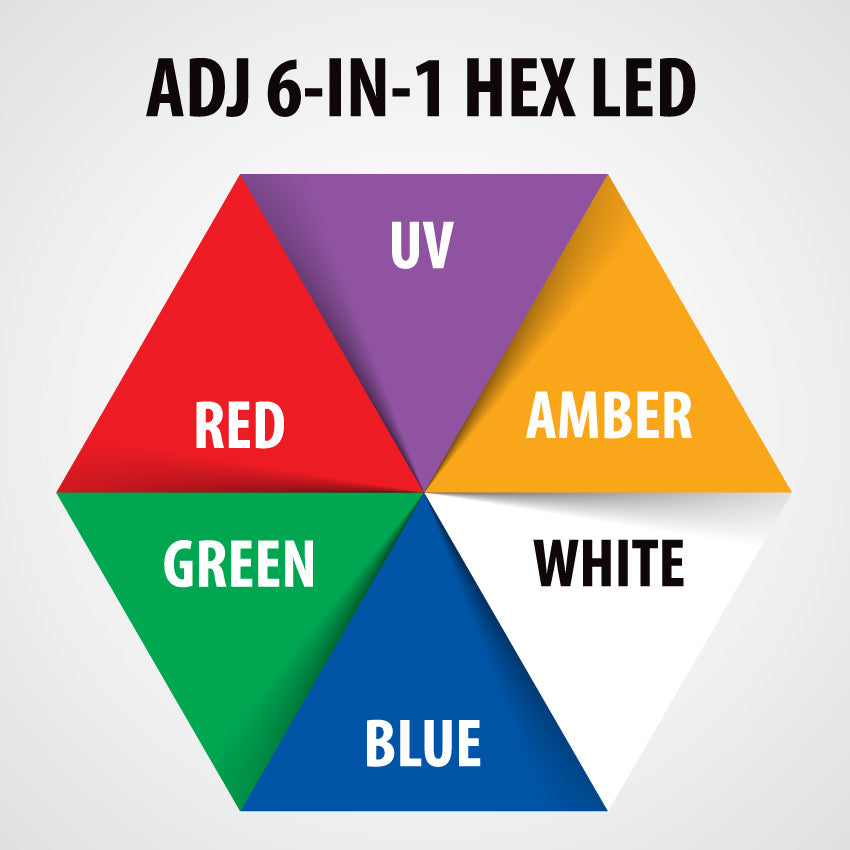

  •  Ultra bright, flat Par 38 wash fixture with 3x Red, Green, Blue, Amber, White & UV LED pixels
  •  Smooth RGBAW + UV color mixing
  •  Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

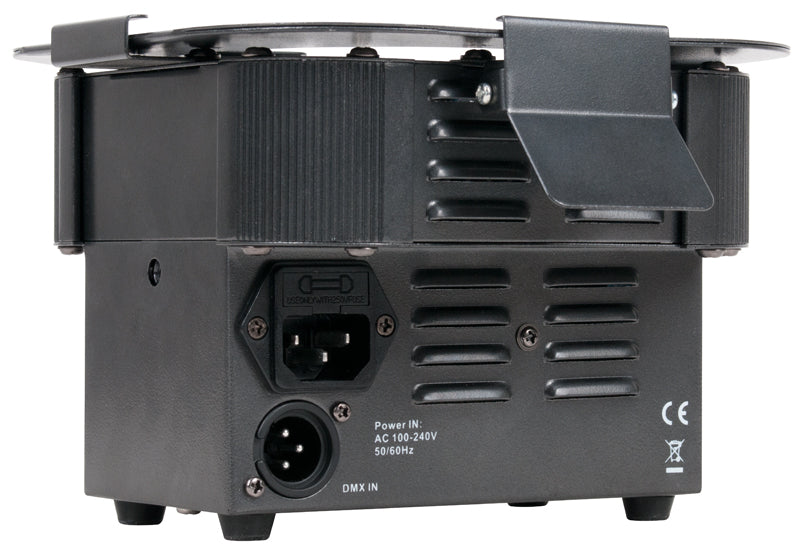

  •  Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
  •  5 DMX Modes: 6, 7, 8, 11 & 12 channel
  •  5 Operational modes: Static Color, Dimmer, Auto Run, Sound Active and DMX Controlled
  •  Flicker Free operation (No flickering on camera)
  •  Refresh Rate: 1KHz
  •  63 built-in Color Macros
  •  5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  •  LED pulse and strobe effect
  •  Electronic Dimming: 0 - 100%
  •  Beam angle: 40-degree
  •  4-button, DMX digital display on rear panel
  •  Compatible with ADJ RFC wireless remote control (sold separately)
  •  Dual yoke allows fixture to be hung or set on the ground
  •  Data linkable via 3-pin XLR cables
  •  With Wired Digital Communication Network
  •  Power linkable via IEC power cables. (20 Ultra Hex Par3’s Max.)
  •  Includes gel frame for optional diffusion filters
  •  Light Source: 3x 10-Watt RGBAW + UV LEDs, (Rated at approximately 50,000 hrs.)
  • Light Output: 561 LUX @2M; 140 LUX @4M (40-degree beam)
  •  Power Draw: 26W total (All LED's @ Full On)
  •  Multi-voltage operation: AC 100-240V, 50/60Hz (IEC power In/Out)
  •  Dimensions (LxWxH): 9” x 8.5” x 4.75”/ 224 x 213 x 120mm
  • Fuse: 1Amp
  •  Weight: 5 lbs. / 2.02 kgs

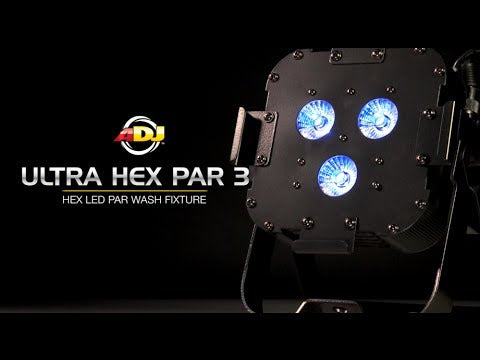

Videos

Downloads

The following downloads are available for this product:

Title Description
Ultra Hex Par 3 User Manual User Manual Download

The ADJ Ultra Hex Par 3 LED Fixture features 3x 10Watt six in one HEX LEDs. When you are able to achieve a 40 degree beam angle, you get the chance to produce wide washes with smooth color mixing from the 63 built-in color macros. These built-in macros use red, green, blue, amber, white, and UV LEDs. So your party will have the highest quality and range of light. Not only is the ADJ Ultra Hex Par 3 great for lighting stages, but also uplighting a venue.

The amount of features offered in this single package is perfect for any starting light show designer or someone looking to add to their arsenal. With a wide range of professional features, including five DMC modes, five operational modes, five dimming curves, flicker free operations and a 4-button DMX menu with digital display. You can set any kind of light show you desire, be it for a club or a stage where you need the music to be as hot as the band.

Daisy-chain up to 20 units together and have the entire venue light up for the entire night with the long life low heat LEDs.
