Ultra Bar 12

The Ultra Bar 12 offers a slew of features that allow you to change the effect, modes, and lighting intensities of the linear bar. This product is perfect for lighting designers and mobile entertainers and will add that perfect ambiance to your environment.
Advantage Points: 250

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

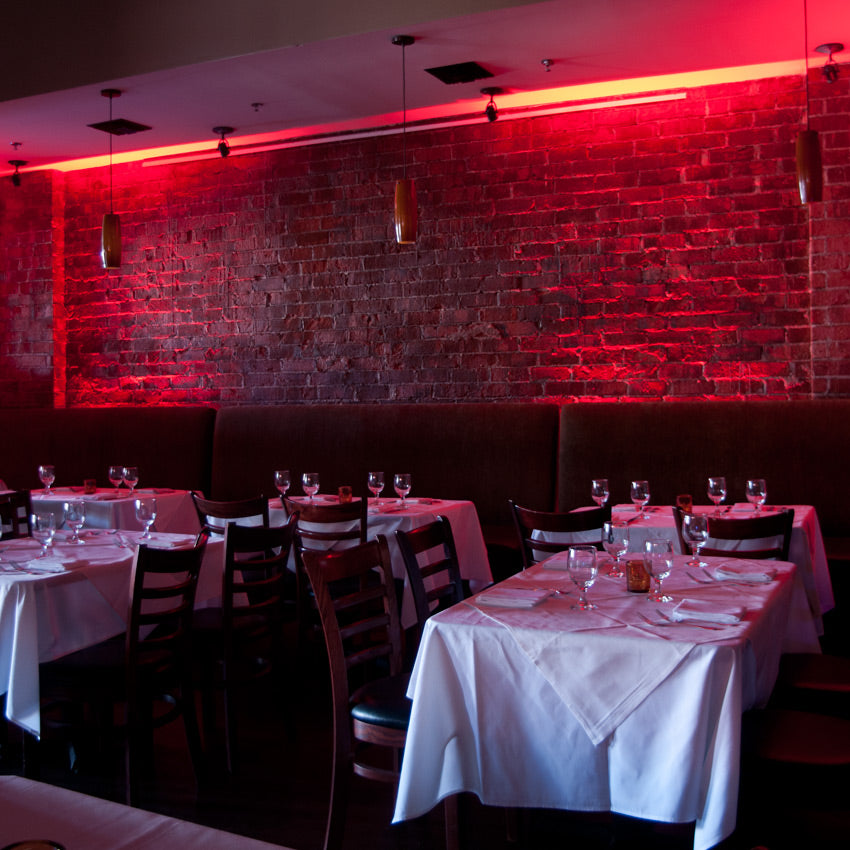

If you are having problems with getting that ambient lighting just right when it comes to your restaurant or dance floor, then look no further than the ADJ Ultra Bar 12. With the 1 meter long bar and 12 x 3W ultra bright TRI LEDs, you will really see the difference it will make to your space. If you wanted to get some serious stage or wall washing going then check out the variable RGB color mixing that provides a seemingly unlimited color palette.

There are 35 built-in color macros so you can set it up and go about your day while it runs all day thanks to the 50,000 hr long life LEDs. The ADJ Ultra Bar 12 can be controlled with the ADJ RFC remote with RF control up to 30 ft/10M (sold separately). It offers a linkable DMX via 3-pin XLR cable and has mounting brackets so that it can be put on a wall or secured to the ground. The quick align end locking (patent pending) mechanism will allow for a quick and easy setup and a seamless output of light.

Flexible programming is offered through the on-board 4-Button LED DMX-512 menu and will allow you to customize your setup the way you want it to be.

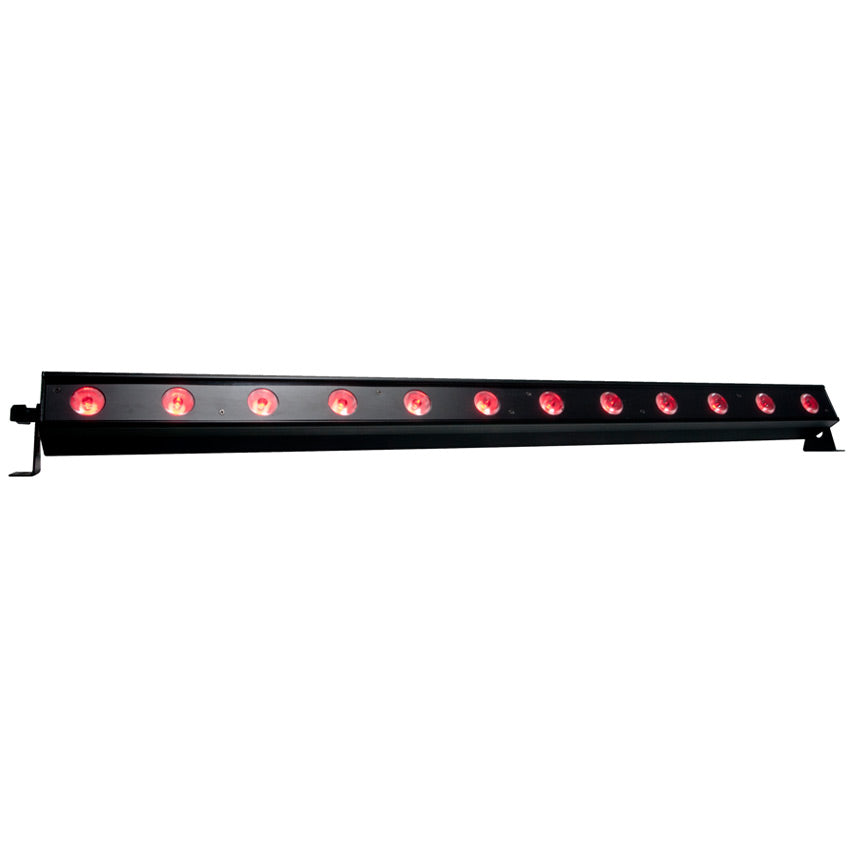

  •  41.75-inch (1 meter) indoor Linear Bar with 12 x 3W Ultra bright TRI (RGB: 3-IN-1) LEDs
  •  Variable RGB color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!
  •  9 DMX Channel Modes: 3, 5, 6, 7, 8, 9, 11, 18 or 20 channels (9 Channel & 11 Channel in 3 Section Mode Only) (18 Channel & 20 Channel in 6 Section Mode Only)
  •  6 operational modes: Auto Run, Program Mode, Sound Active, RGB Dimmer, Static Color and DMX-512 Mode
  •  3 or 6-Section Pixel control

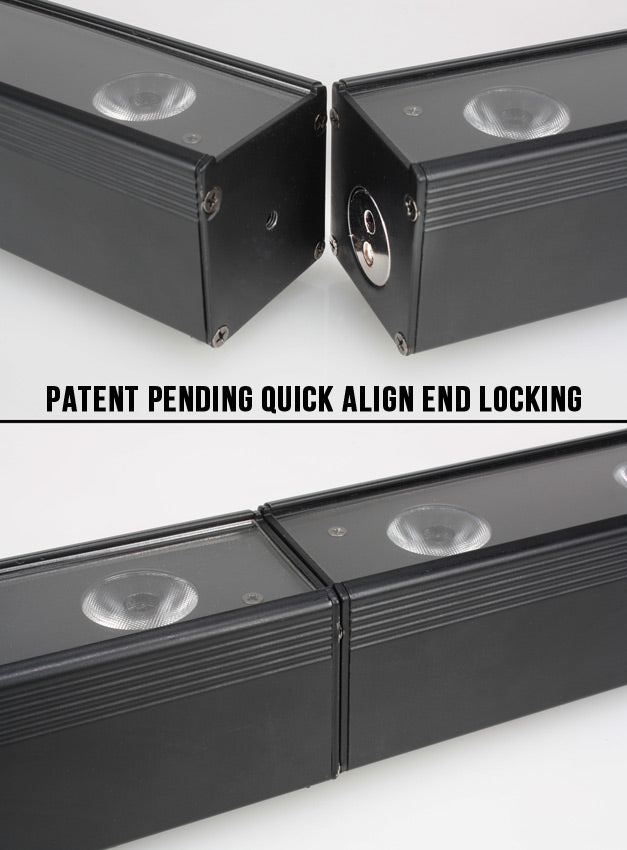

  •  Patent Pending Quick Align (Magnetic)
  •  Beam Angle: 40 degrees
  •  Flicker Free
  •  Refresh Rate: 1KHz
  •  4-Button DMX LED Display
  •  35 built-in Color Macros
  •  LED pulse & strobe effect
  •  Electronic Dimming: 0-100%
  •  Includes mounting brackets to mount on a wall or set on the ground
  •  Compatible with the ADJ RFC remote with RF control up to 30 ft./ 10M (sold separately)
  •  Long Life LEDs (Rated at approximately 50,000 hrs.)
  • Light output: 1794.5 LUX @ 2M; 535 LUX @ 4M (40-degree beam)
  •  Power Draw: 43W
  •  Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 13 Ultra Bar 12 fixtures)
  •  Multi-voltage operation: AC 100V-240V 50/60Hz
  • Power cable length: 1.8 meter (IEC)
  •  Dimensions (LxWxH): 41.75” x 2.5” x 3.75”/ 1060 x 63 x 90mm
  •  Weight: 6 lbs./ 2.7 kg.
  • ETL Approved





The following downloads are available for this product:

Title Description
Ultra Bar 12 Cutsheet Download
Ultra Bar 12 User Manual Download
Ultra Bar 12 Photometric Test Reports Photometric Test Reports Download
Ultra Bar 12 Photometric IES Files Photometric IES Files Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Will this product work with the wifly DMX controller and accessories?

Not without adding a WIFLY BATTERY so it can talk to the controller.

How to find this bar in Martin LightJockey to control them

Hello Bane,

Since the light jockey is not our software. I would recommed contacting Martin for better assistance. Let me know if you have any further questions.


In chase mode, the Ultra Bar 12 can use each LED by itself, why not in DMX mode?

Hello Andrew,

The Ultra bar can only chase in two zones. Can you email me any video to Petern@americandj.com of the ultra bar 12 doing a chase with a single zone.
