Ultra Bar 10 Plus Pak

(Discontinued)

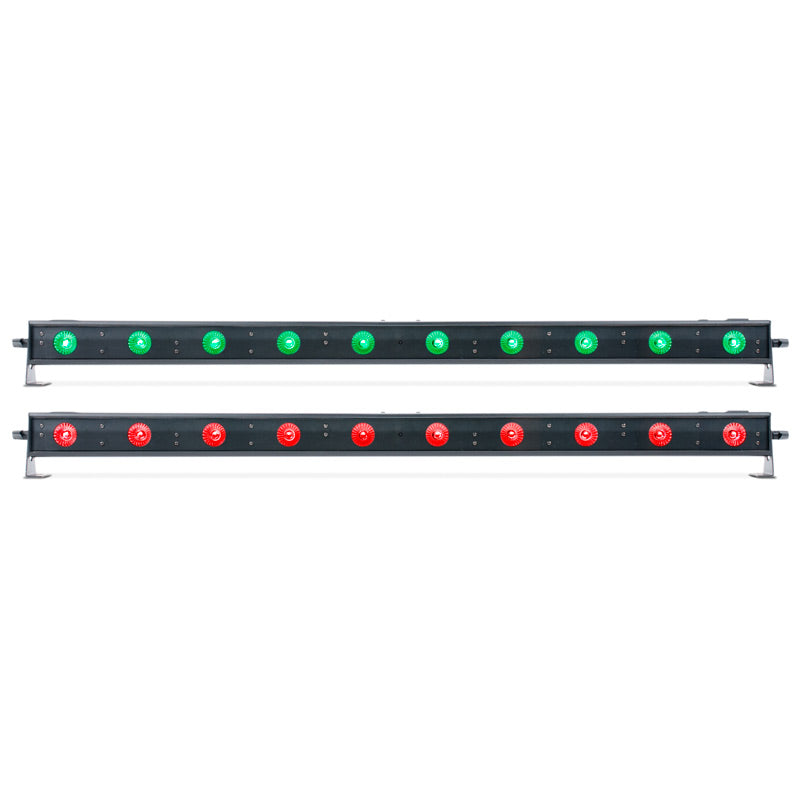

The ADJ Ultra Bar 10 Plus Pak is a low profile LED Linear fixture kit with two Ultra Bar 10 Plus LED Bars, a deluxe padded bag and an IR wireless remote. The ADJ Ultra Bar 10 Plus Pak is a low profile LED Linear fixture kit with two Ultra Bar 10 Plus LED Bars, a deluxe padded bag and an IR wireless remote. The ADJ Ultra Bar 10 Plus Pak is a low profile LED Linear fixture kit with two Ultra Bar 10 Plus LED Bars, a deluxe padded bag and an IR wireless remote. The ADJ Ultra Bar 10 Plus Pak is a low profile LED Linear fixture kit with two Ultra Bar 10 Plus LED Bars, a deluxe padded bag and an IR wireless remote. The ADJ Ultra Bar 10 Plus Pak is a low profile LED Linear fixture kit with two Ultra Bar 10 Plus LED Bars, a deluxe padded bag and an IR wireless remote.
SKU: ULT105 | UPC: 819730016850
The ADJ Ultra Bar 10 Plus Pak is a low profile LED Linear fixture kit with two Ultra Bar 10 Plus LED Bars, a deluxe padded bag and an IR wireless remote.
Advantage Points: 400

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

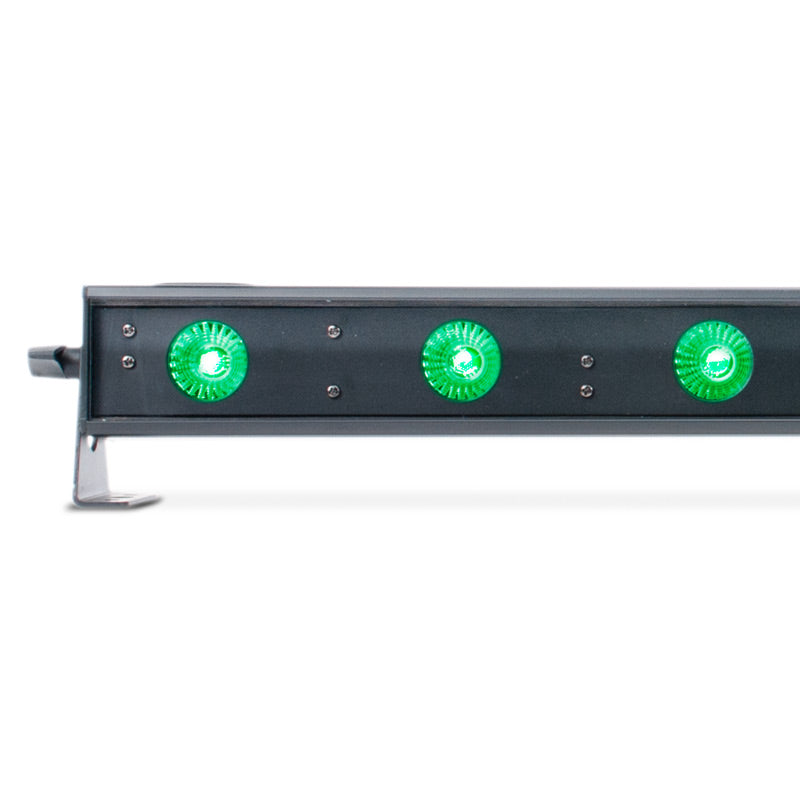

The ADJ Ultra Bar 10 Plus Pak is a low profile LED Linear fixture kit with two Ultra Bar 10 Plus LED Bars, a deluxe padded bag and an IR wireless remote. The LED Bars feature ten 4-Watt, 4-IN1 LED (red, green, blue and UV), adjustable hanging brackets, and a 4-button DMX display. The Ultra Bar 10 Plus is designed for linear uplighting and stage lighting, and will bring color and excitement to any party.



The Ultra Bar 10 Plus offers smooth RGB+UV Color Mixing, have a 40-degree beam angle, 64 built-in color macros, 5 operational modes (including DMX, Sound Active and auto run), and has 5 DMX Channel modes for a variety of programming options. Users can also use the included ADJ LED RC2 IR wireless remote to change colors and functions of the LED Bars.

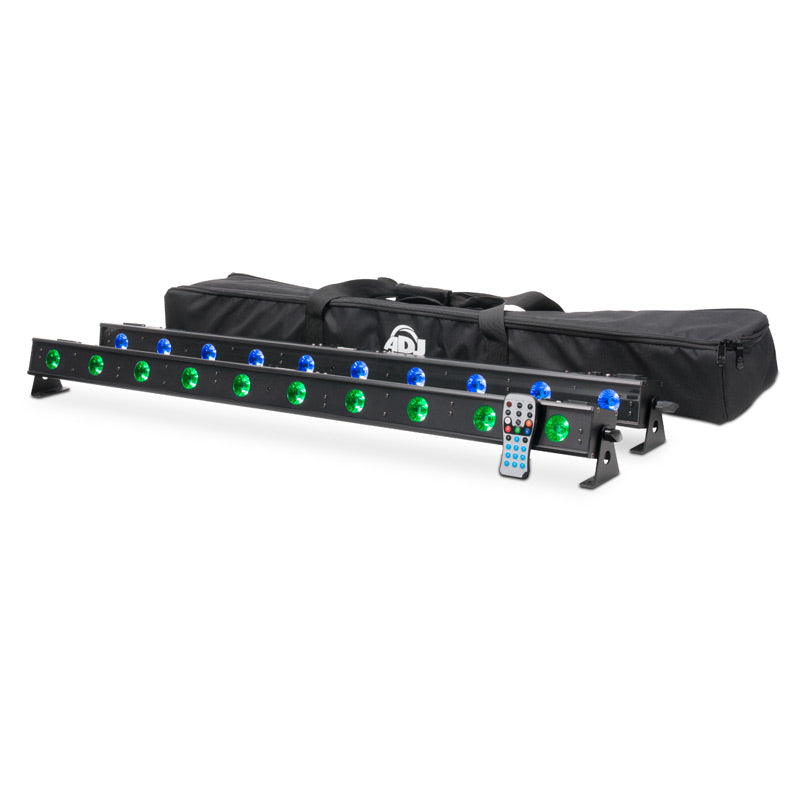

Pack Includes:
• 2x Ultra Bar 10 Plus Linear Fixtures

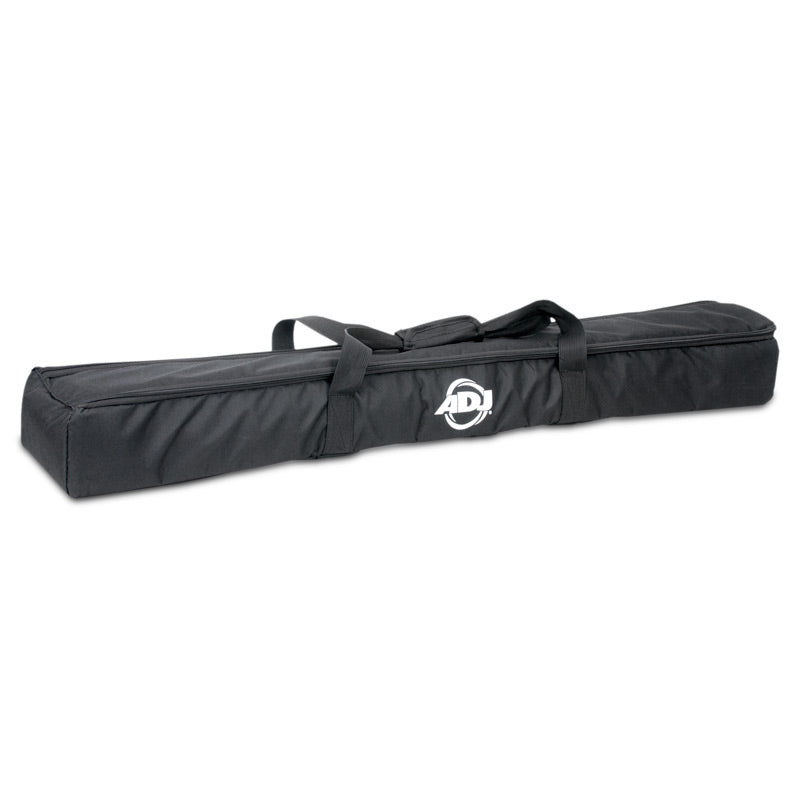

• 1x Deluxe padded Bag

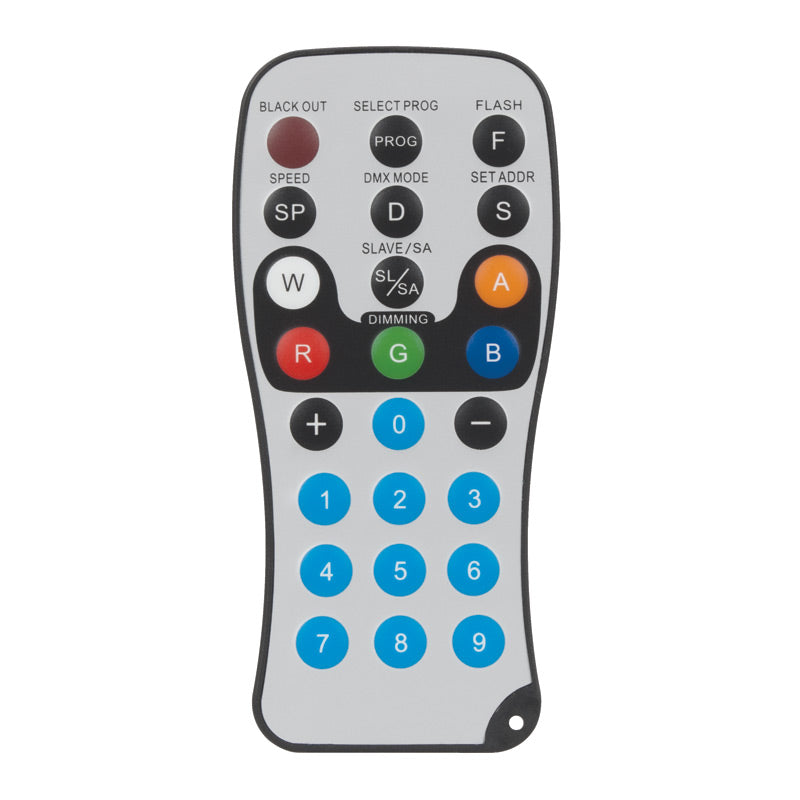

• 1x ADJ LED RC2 IR Wireless Remote

Specifications

Specifications

• Ultra bright, compact black linear fixture with 10 x 4-Watt, 4-IN-1 QUAD LEDs (RGB+UV) – casts no RGB shadows

• Smooth RGB+UV Color Mixing (fast or slow color change operation)

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

• 5 DMX Channel modes: 4, 5, 6, 9, or 10 channels

• 5 Operational modes: RGB+UV Dimmer mode, sound active mode, static color mode, auto run mode (16 color change, 16 color fade, & 1 combined programs), and DMX Control

• Digital LED Display with 4-button menu for easy navigation

• Stand Alone or Master/Slave Configuration

• Beam Angle: 40 degrees

• 64 built-in Color Macros

• DMX-512 protocol

• Color strobe effect

• Linkable via 3-pin XLR cable

• Electronic Dimming: 0-100%

• Flicker Free
• Refresh Rate: 504Hz

• Adjustable mounting brackets; mount on a wall or set on the ground

• Long Life LEDs (50,000 hrs.)

• Power Draw: 50W Max

• IEC AC input and out put on the side of the fixture to daisy chain the power cords

(link up to 12 fixtures)

• Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./ 10M (included in the pak)

• Multi-voltage operation: AC 100V-240V 50/60Hz

• Dimensions (LxWxH): 41.75” x 2.5” x 3.5”/ 1060 x 63 x 90mm
• Weight: 5.5 lbs./ 2.51 kg.

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
Ultra Bar 10 Plus Pak User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

What does the back of the Ultra Bar 10 look like? Is it the same as the 6, 9, and 12 bars? Does it also have the alignment magnets?

Hello Johnny,

The ultra 10 bar is smiliar to the ultra bar 6,9,12. The only thing is that it does not have the aligment magnets. Let me know if you have any further questions.

Thanks,

Does it have zones?

Hello Andrew,

This light system does not offer zone control. If you want zone control look into our ultra hex her bar 12. Let me know if you have any further questions.

Thanks,

hello you specify in your description that the wear is 10 m but I was wondering if the sensor was facing the bar or LED at the rear and the handle so well captais the signal.

The sensor faces the same way of the light output.
