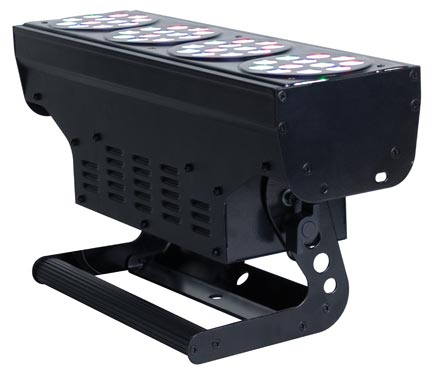

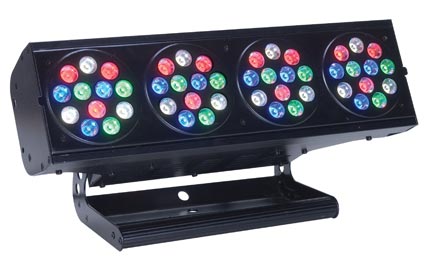

Theatrix Pro 48 LED

SKU:
Advantage Points: 700

Find this Product

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

  • High output LED color wash bar with 48x 1Watt LEDs (12x Red, 12x Green, 12x Blue & 12x White LEDs)
  • Smooth RGBW color mixing (fast or slow color change operation)
  • Increased versatility and color mixing capabilities due to the 12x White LEDs
  • Operational modes: Built-in programs, Sound mode, Master/Slave mode & DMX mode
  • 7 different DMX Modes: 4 Channel, 5 Channel, 7 Channel, 8 Channel, 11 Channel, 16 Channel &19 Channel modes
  • Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
  • Color strobe effect
  • DMX-512 Protocol
  • Electronic Dimming: 0 - 100%
  • Linkable via 3-pin XLR cable

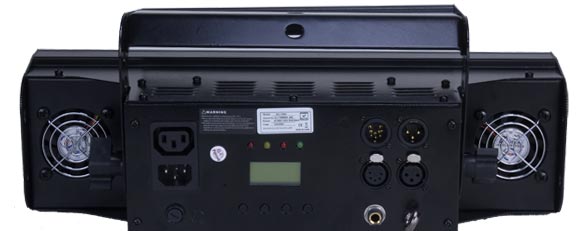

  • 4-button LED display on rear panel
  • Optional controller: easy-to-use American DJ UC3 controller (sold separately)
  • IEC AC outlet on rear to daisy chain power
  • Includes pro mounting brackets to hang on truss or set on the floor
  • Beam angle: 12-degrees (120-degrees when lenses are removed)
  • Optional 15-degree beam angle lenses sold separately
  • Power consumption: 57W
  • Multi-voltage: 100-240V, 50/60Hz
  • Dimensions (Including bracket - LxWxH): 16.75” x 6.25” x 7” / 422x169x174mm
  • Weight: 11 lbs. / 5 kgs.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Theatrix Pro 48 LED User Manual Download
Theatrix Pro 48 LED Photometric Chart Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Theatrix Pro 48 LED
