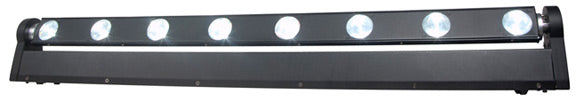

Sweeper Beam LED

SKU: SWE032
Advantage Points: 350

Find this Product

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

  •  Unique lighting fixture with quick sweeping narrow beams combined with an 8-Zone LED chase
  •  8x 3-Watt white Cree LEDs
  •  4-Button DMX LED Display
  •  3 Operational modes: DMX controller, Master/Slave & Sound Active
  •  4 DMX Channel modes (1, 6, 11 or 15 Ch.)
  •  DMX-512 Protocol
  •  Electronic Dimming: 0 - 100%
  •  Includes exciting sound activate built-in programs
  •  LED pulse & strobe effect
  •  270 degree tilt from smooth Stepper Motors
  •  Extremely Long Life (50,000 hr. rated)
  •  Beam angle: 3.5-degrees
  •  Runs extremely cool! - NO Duty Cycles! – Run all night!
  •  Includes mounting brackets to mount on a wall or set on the ground

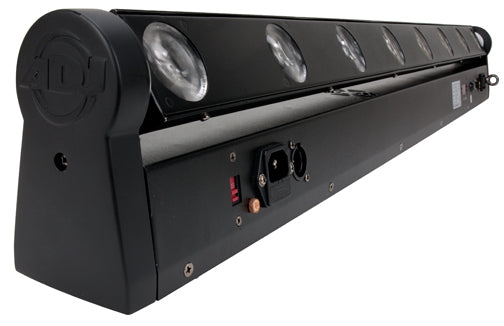

  •  Safety hook on rear panel
  •  Very low power consumption - connect more units in a single circuit
  •  IEC AC IN/OUT on rear to daisy chain power (up to 8 Sweeper Beam LED’s @ 120V and 14 Sweeper Beam LED’s @ 230V )
  •  Compatible with ADJ UC3 Series easy-to-use controllers (sold Separately)
  •  Power Consumption: 46W maximum
  •  Multi-voltage operation: AC 100-240V 50/60Hz- IEC socket
  •  Dimensions (LxWxH): 38.5”x 3”x 5.25” / 973 x 74 x 132mm
  •  Weight: 13 lbs. / 5.5 kg.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Sweeper Beam LED User Manual Download
Sweeper Beam LED Cut Sheets Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Sweeper Beam LED
