Saber Spot WW
Optical
• Light Source: 15-Watt Warm White LED
• LED Life Expectancy: 10,000 Hrs
• Beam Angle: 4-degrees
• Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
• Refresh Rate: 3.6KHz
Technical Features
• 4-button Digital Display for easy navigation
• Electronic Dimming 0 – 100%
• Flicker Free
• Includes a scissor yoke to be hung or set on the ground
Connections
• Power Input: locking connection
• Power Pass through: locking connection
• Control: 3 Pin DMX In/Out pigtails
• With Wired Digital Communication Network
Control
• 2 DMX Channel Modes: 1 or 2
• RDM (Remote Device Management)
Electrical
• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power draw 120V 60Hz: 15W, 0.13 Amps
• Power draw 220V 50Hz: 15W, 0.07 Amps
Physical
• Dimensions (LxWxH): 3.5” x 6.75” x 3.5” / 88 x 170 x 87mm
• Weight: 2.6 lbs / 1.2 kg.
• Metal Black Housing
Certifications
• ETL Approved, UL, CE
• IP 20: Dry area, No liquids
What’s Included
• Manual
• Locking power cord
• 2 frost filter lens (10-degree & 45-degree)
• O-ring for frost filter lens
Optional Accessories
• PLC 3,PLC 6, PLC 10 (powerCON passthrough cables)

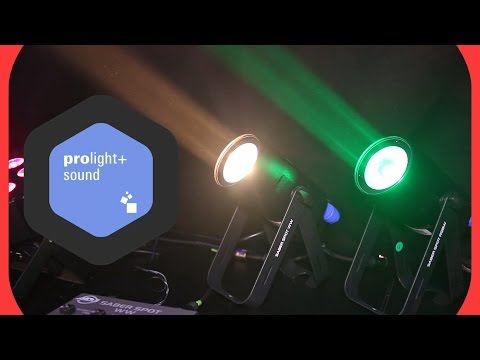

Videos
Downloads
The following downloads are available for this product:
Title | Description | |
---|---|---|
Saber Spot CAD Drawing | CAD Drawing | Download |
Saber Spot WW Cut Sheet | Cut Sheet | Download |
Saber Spot WW User Manual | User Manual | Download |
Saber Spot WW Photometric Test Reports | Photometric Test Reports | Download |
Saber Spot WW Photometric IES Files | Photometric IES Files | Download |
Available now from ADJ USA
The Saber Spot WW is a compact Pinspot with a 15-Watt warm white LED. Features DMX-512, flicker-free operation, strobing, electronic dimming and has a 4-Button DMX display system on the rear panel. Its built-in ACL lens produces a razor sharp 4-degree beam angle.
The Saber Spot WW has a scissor bracket system that allows the fixture to be hung or set on the ground, and is ideal for performance stages, installations, table spotting, lighting retail stores.
Learn more about the Saber Spot Series in this product spotlight blog: http://tinyurl.com/jphslm3
