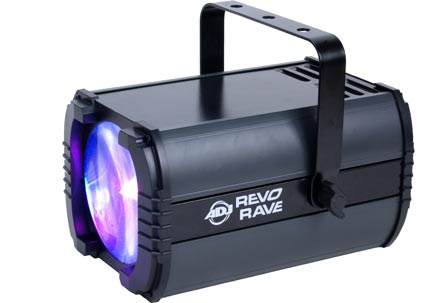

Revo Rave

(Discontinued)
SKU: REV520
Advantage Points: 200

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

  • LED DMX-512 Moonflower with very wide Red, Green, Blue & White Beams
  • 162 total LEDs : 48 Red, 36 Green, 42 Blue and 36 White
  • 5 DMX Channels

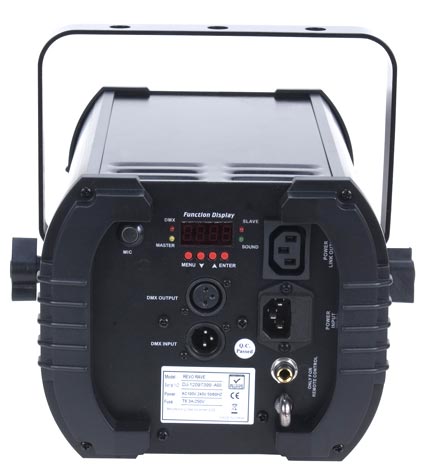

  • 4-button LED DMX display on rear panel
  • Linkable via XLR connections
  • Wide beam spread covers a large area
  • 3 operation modes: DMX, Sound Active & Master/Slave
  • Built-in “high-energy” lighting programs (Master/Slave & Sound Active)
  • Beam angle: 29 degrees
  • Color strobe effect (fast to slow)
  • Electronic Dimming 0 - 100%
  • Linkable via 3-pin XLR cable
  • IEC IN/OUT on rear to daisy chain power
  • Includes mounting bracket & safety hook
  • Power Consumption: 12W max
  • Extreme long lifetime of the LEDs (100,000 hr. rating)
  • Multi-voltage operation: AC 120-240V 50/60Hz (IEC Plug)
  • Compatible with the UC3 easy-to-use controller (sold separately)
  • Dimensions: 12”x12.5”x9.5” / 312x316x239mm
  • Weight: 9 lbs. / 3.8 kg.
  • ETL approved (see user manual for more info)

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Revo Rave User Manual (Rev. Nov. 2010) Download
Revo Rave Cut Sheet Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Can the Revo Rave work with a 3 channel (RGB) dmx controller? Or if i canslave it to other 3 channel lights? I have a few ADJ Mega Par Profile Plus lights to go along with it

Hello Mitchel,

Thank you for reaching out to us. Unfortunately, the revo rave connot be set in a 3 dmx chanel mode. The only way you can do master slave is by having two or more of the same light. Let me know if you have any further questions.

Thanks,
