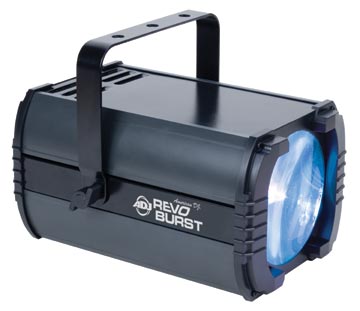

Revo Burst

SKU: REV566
Advantage Points: 200

Find this Product

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

  • LED DMX-512 Moonflower with sharp Red, Green, Blue & White Beams
  • 7 LED Clusters - 294 total LEDs : 84 Red, 105 Green, 63 blue and 42 White
  • 10 DMX Channels (4 Channel mode or 10 Channel mode)

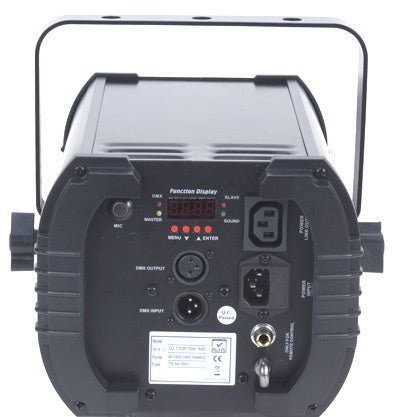

  • 4-button LED DMX display on rear panel
  • Linkable via XLR connections
  • Wide beam spread covers a large area
  • 3 operation modes: DMX, Sound Active & Master/Slave
  • Built-in “high-energy” lighting programs (Master/Slave & Sound Active)
  • Beam angle: 46 degrees
  • Color strobe effect (Slow to Fast)
  • Electronic Dimming 0 - 100%
  • Linkable via 3-pin XLR cable
  • IEC IN/OUT on rear to daisy chain power (up to 16 units)
  • Includes mounting bracket & safety hook
  • Power Consumption: 20W max
  • Extreme long lifetime of the LEDs (100,000 hr. rating)
  • Multi-voltage operation: AC 100-240V 50/60Hz (IEC Plug)
  • Compatible with the UC3 easy-to-use controller (sold separately)
  • Dimensions: 12”x8.5”x9.5” / 312x216x239mm
  • Weight: 8 lbs. / 3.4 kg.
  • ETL approved (see user manual for more info)

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Revo Burst User Manual Download
Revo Burst Cut Sheet Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Revo Burst
