Revo 4

Advantage Points: 300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

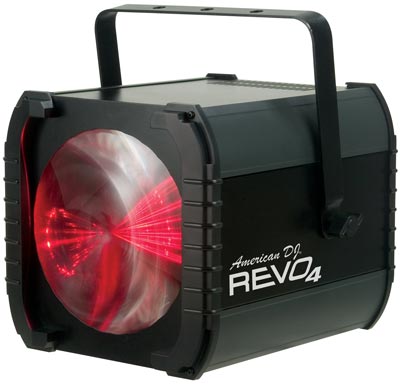

  •  LED DMX-512 Moonflower from the popular REVO Series with 256 razor sharp Red, Green, Blue & White Beams
  •  Produces unique and exciting LED patterns that may be projected on a wall, ceiling or dance floor - great with or without fog
  •  256 total 5mm LEDs : 64 Red, 64 Green, 64 blue and 64 White
  •  2 DMX Channel Modes (4 Channel mode or 256 Channel mode)
  •  4-Button LED DMX Display
  •  Linkable via XLR connections
  •  Wide beam spread covers a large area
  •  3 operation modes: DMX, Sound Active & Master/Slave
  •  Sound active from built-in programs
  •  Strobe function
  •  Beam angle: 50 degrees
  •  Runs extremely cool! - NO Duty Cycles! - Run all night!
  •  Includes hanging bracket
  •  Power Consumption: 29W maximum
  •  Extreme long lifetime of the LEDs (100,000 hr. rating)
  •  1/4” input for optional American DJ UC3 remote control (sold separately)
  •  In/Out IEC power connections to daisy-chain power
  •  Multi-voltage Operation: AC 100-240V, 50/60Hz
  •  Dimensions (LxWxH): 12.25”x 12” x 13.25” / 312 x 306 x 334 mm
  •  Weight: 10 lbs. / 4.2 kgs.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Revo 4 User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Hi, I have 2 ADJ Revo 4. I want to install the Revo at an height of 6 mt. and at a distance of te wall of almost 10 mt. I would like to know if is still working and the best height and distance to light a wall. thank you Domenico

This light was designed to light up a dance flor from a vertical distance of up to 7meters and shining down at an angle to the dance floor. I don't think you will see much lighting at 10 Meters unless the room was totaly dark.
