Quad Scan LED

Advantage Points: 300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

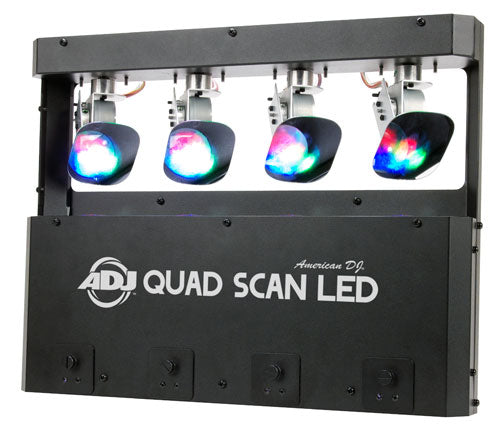

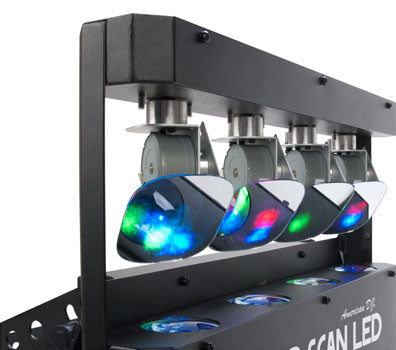

  •  4x 3-watt 3-in-1 RGB “TRI Color” LEDs - produces a variety of color effects
  •  Includes 4 replaceable gobo patterns (Gobo size: 20.5mm; Viewable size: 12mm)
  •  3 DMX Channel Modes (1, 5 or 28 Channels)
  •  4-Button menu system LED Display making it easy to navigate
  •  3 Operational modes: DMX controller, Master/Slave & Sound Active
  •  Exciting built-in lighting programs
  •  Dimming: 0-100%
  •  LED Strobe effect
  •  Hanging Bracket + safety hook included
  •  Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
  •  Run all night – No duty cycle – Unit stay cool all night

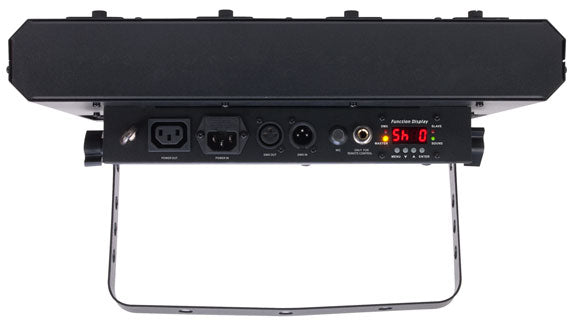

  •  IEC AC IN/OUT on rear to daisy chain power (up to 5 units)
  •  Extreme long lifetime of the LED (50,000 hr. rating)
  •  Power consumption: 65W max
  •  Multi-voltage operation: AC 100V~240V 50/60Hz- IEC socket
  •  Dimensions (LxWxH): 17.25"x13.5"x5" / 438x338x126mm
  •  Weight: 13.5 lbs. / 6kg.





The following downloads are available for this product:

Title Description
Quad Scan LED Cut Sheet Download
Quad Scan LED User Manual Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

In need to purchase parts as both of my units have stopped working. I'm UK based. Thanks

Hello Mat,

Thank yor for reaching out to us. Here is our contact for Adj Europe.

ADJ Europe

Junostraat 2
6468 EW Kerkrade
The Netherlands

Phone: +31 (0)45 546 85 00
Fax: +31 (0)45 546 85 99
Email: info@americandj.eu
