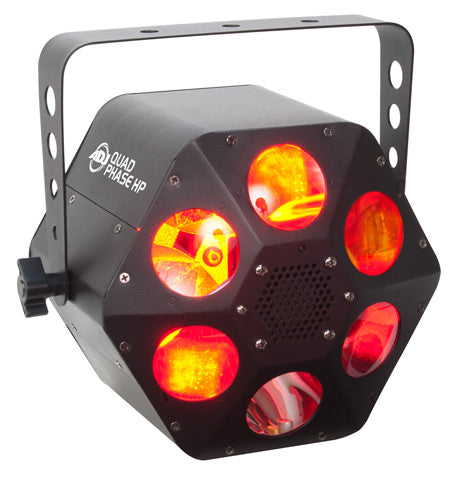

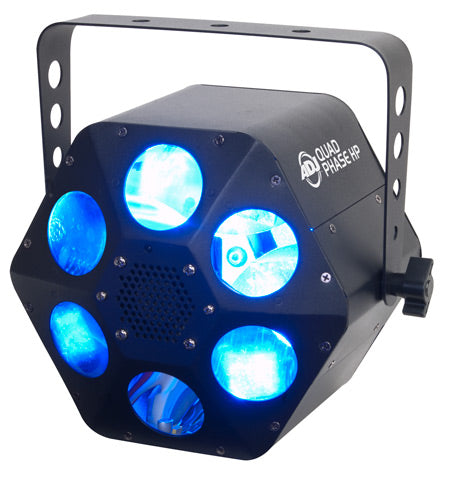

Quad Phase HP

ADJ's Quad Phase HP 32W "4-in-1" quad color LED moonflower offers twice as many majestic colors as a TRI LED. Making sure that it will bring you brilliant, razor sharp beams of light. Expect a great assortment of programmable modes and features. The Quad Phase HP from American DJ will certainly offer you the tools you need to create that engaging light show you are looking for.
Advantage Points: 250

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description


$249.99 from ADJ Dealers

American DJ's Quad Phase HP is designed to fill a room and dazzle a crowd with it's dozens of razor sharp beams of light. This device is perfect for clubs, wedding receptions, parties, or dance stages. This technologically advanced moonflower features a homogenized 32W 4-in-1 quad color LED source (RGBW). Offering twice as many majestic colors as a “TRI LED”, the Quad Phase produces up to fifteenth colors in all.

Using a 1.8 Degree Long Life Stepper motor Technology it can produce quick accurate movement or smooth fluid move movements for mood music. Use one of the 4 DMX channels for a truly customized experience (Color, Rotation, Strobe, Shutter).

The Quad Phase HP also offers all the latest features sought after in special effects lights such as: DMX-512 for programming or linking capabilities, exciting built-in sound active programs, no duty cycle (run all night), a long life LED source (30,000 hours), 4-button DMX display on rear (for easier programmability), IEC power daisy-chaining, a 1.8 steeper motor for smooth movement and is compatible with ADJ's UC IR easy-to-use mini controller (sold separately) and the Airstream IR app. Use the Quad Phase HP at your next gig and show off your superiority.



  •  High output Moonflower effect with 32-Watt Quad-Color LED 4-in-1 (Red, Green, Blue, White) technology produces color-changing beams of light
  •  Dozens of razor sharp beams fill a dance floor, ceiling or wall
  •  Using a 1.8 Degree Long Life Stepper motor Technology it can produce quick accurate movement or smooth fluid move movements for mood music
  •  4 DMX Channels (Color, Rotation, Strobe, Shutter)
  •  Operation modes: Sound Active, Master/Slave or DMX-512
  •  Exciting built-in programs (Sound Active & Master/Slave modes)
  •  Produces 15 Preset Colors
  •  Linkable via 3-pin XLR cable

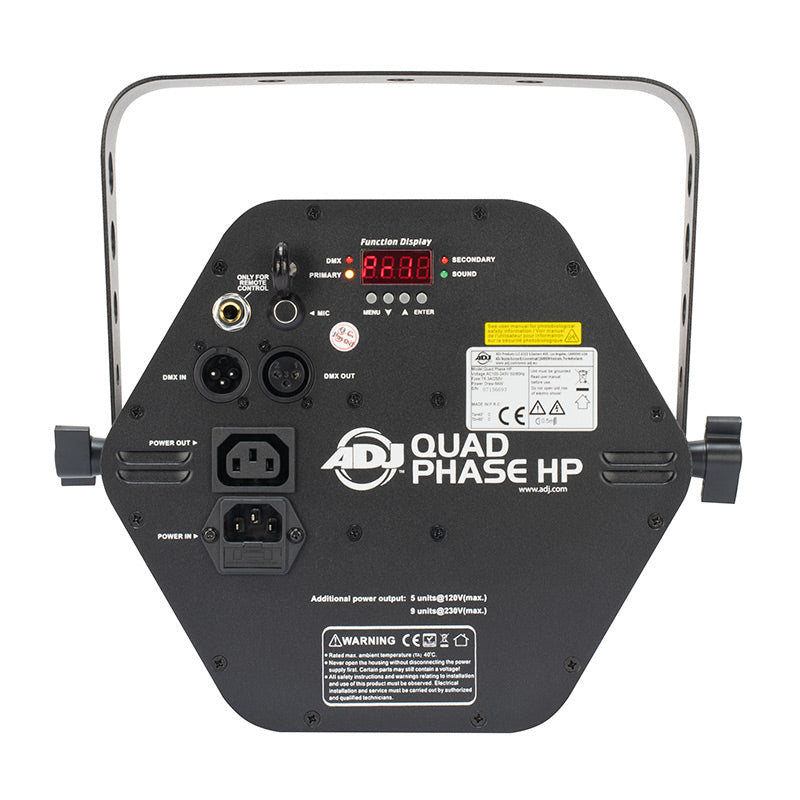

  •  4-button DMX display on rear panel
  •  Beam Angle: 65 degree
  •  Strobe & Pulse LED Effect
  •  DMX-512 Protocol
  •  Electronic Dimming: 0 - 100%
  •  Runs extremely cool! - NO Duty Cycles! - Run all night!

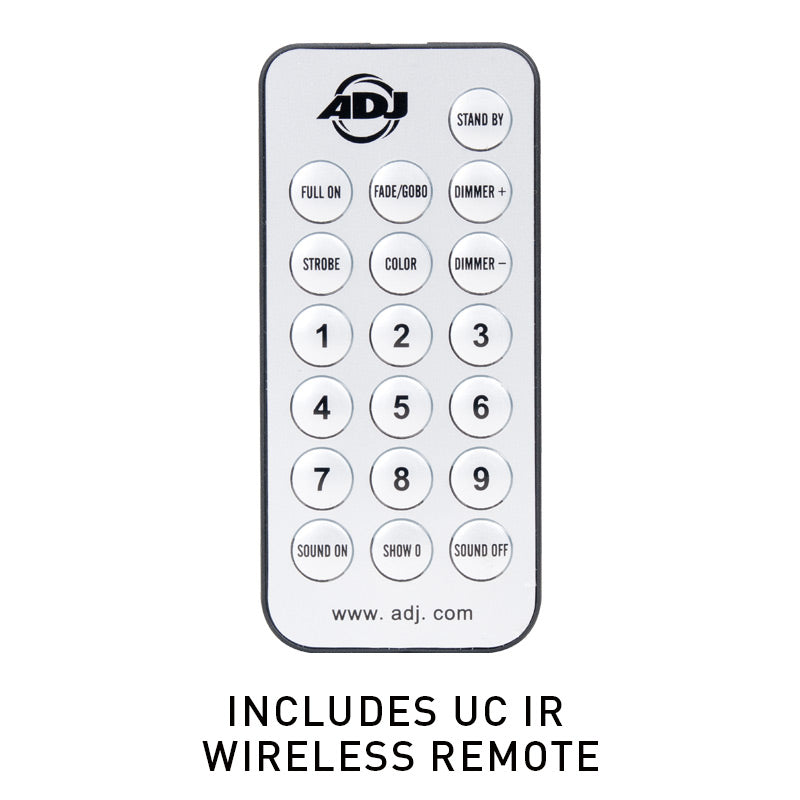

  •  Includes a Wireless IR Remote (ADJ RC1)
  •  Compatible with the ADJ UC IR easy-to-use controller (sold separately) and the Airstream IR App
  •  IEC AC IN/OUT on rear to daisy chain power (up to 5 Quad Phase HP’s @ 120V and 9 Quad Phase HP’s @ 230V )
  •  Safety hook on rear panel
  •  Power Draw: 64W Max
  •  Multi voltage: 100V~240V, 50/60Hz
  •  Long life LEDs (30,000 hr. rating)
  •  Light Source: 32W RGBW LED 4-in-1
  •  Dimensions (LxWxH): 12.5” x 8” x 11” / 312 x 198 x 279mm
  •  Weight: 9 lbs. / 4 kg.





The following downloads are available for this product:

Title Description
Quad Phase HP User Manual Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

With the 4-in-1 LEDs, is it possible to mix colors via a DMX controller? As in if I wanted primarily to use shades of purple, etc. Thanks!

Hello Nat,

You wont be able to mix thru colors since the quad phase has fix colors built in it. Let me know if you have any further questions.


I have two Quad Phase HPs and the green LEDs on both units went out within a couple weeks of each other. Any idea why this would happen and how to fix it?

Please contact our service team @ 800-322-6337 ext 592 and request an RMA for repair.
