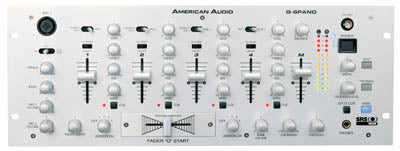

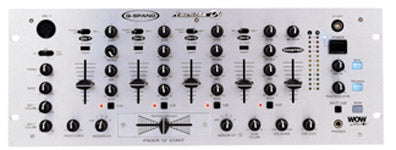

Q-SPAND

• 3 Phono, 4 Lines, 3 Auxiliaries & 3 Mics
• Fader "Q" Start w/ on/off switches for each channel
• WoW™ by SRS® button - Sonic Enhancer with 3 dimensional sound
• 3D Stereo button w/ Width level knob (Highs)
• Tru Bass button w/ Bass level knob (Lows)
• Feather Fader plus Crossfader with VCA fader control (replaceable)
• Balanced XLR Mutputs
• Bass, treble for each microphone
• Volume control for each microphone
• on/off/Talkover for mics
• Gain for each channel
• on/off channel assign switch
• Split Cue on 1/4-inch Stereo Phone Jack
• High level 1/4-inch Stereo Phone Jack
• Zone volume knob
• Cue Mixing and Cue Level knobs
• Master level indicators w/ peak hold
• Cue button w/ L.E.D. for each channel
• Left/right master balance
• 12V BNC light connector for gooseneck light
• Neutrik™ microphone connection 1/4" (6.3mm)/XLR
• Independent light control signal output for touch panels and chase controllers – 1/4" connection
• Soft-touch rubber knobs for better control
• "L" shaped rear case design
• Line output: 28V, peak to peak (+20dB)
• S/N ratio: >85dB
• Frequency Range: 20Hz – 20kHz, +/- 1dB
• Distortion: <0.03%
• Talkover: -15dB
• 1/4-inch Stereo Phone Jack Impedance:16 ohms
• Power: 115V 60Hz / 230V 50Hz switchable
• Crossfader: Feather Fader plus
• Dimensions: 19" W x 7" D x 3.25" H
• Weight: 8 lbs.
