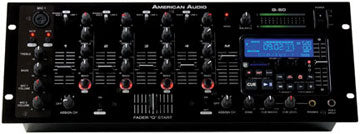

Q-SD MIXER

(Discontinued)
SKU:
Advantage Points: 400

Find this Product

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

  • SD card slot for full functioning MP3 player (reads SD cards up to 4GB)
  • Q-SD does not accept SDHC-cards
  • 4-channel, 19-inch Professional SD DJ mixer
  • 2 Phono, 4 Line, 4 Aux & 2 Mic inputs
  • Folder & Track knob selector
  • Big LCD display with back-light
  • Crossfader start control for CD player
  • Mic input and master output trim control
  • Tempo Lock
  • Fader “Q” Start compatible (with select American Audio CD players)
  • Balanced XLR outputs
  • DJ microphone with volume, treble, bass and talkover control
  • Gain, treble, mid & bass control for each channel (-30 dB Rotary Kills)
  • Advance MP3 Track Selection
  • Recessed back panel
  • Mini plug input on face of mixer for use with MP3 players (standard 3.5mm plug)
  • Headphone jack on face of mixer
  • Cue mixing, cue level and master level control
  • Zone output control
  • Seamless Loop
  • Auto BPM counter
  • Stream Flow LED indicators
  • Fully adjustable crossfader curve
  • Volume, treble and bass control for each mic
  • Trim output adjustment on rear
  • Mic attenuator control on rear panel
  • Pitch Blend (+/-4%, +/-8%, +/-16%, +/-60%)
  • Power: Switchable AC 115/230V, 60/50Hz, 18W
  • Dimensions (LxWxH): 19”x 7”x 4.25” / 482.6 x 177 x 109.6mm - 4 rack spaces
  • Weight: 9 lbs./3.8 kgs.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Q-SD User Manual Download
