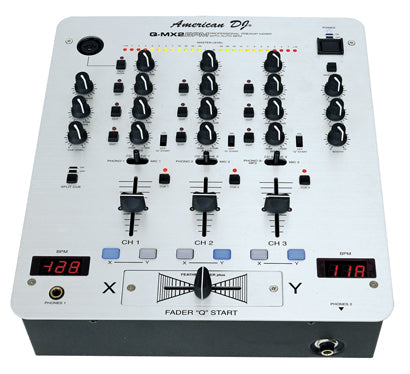

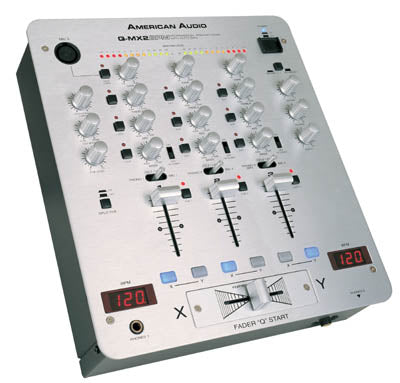

Q-MX2BPM

(Discontinued)
SKU: Q-MX2BPM
Advantage Points: 200

Find this Product

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

  • Auto BPM Display
  • Bass, Mid, & Treble Kill Switches. Cuts output 100% when all switches are engaged.
  • X-Y Assignable Channels with Back Lit buttons
  • VCA Fader Control
  • Balanced and Unbalanced Master Outs
  • Gain on each channel
  • Treble,Mid, and Bass on each channel
  • Booth out control
  • Selectable Crossfader curve
  • 3 Phono,4 lines and 3 mics.
  • XLR 1/4” combo mic connector
  • Rubber knobs for better control.
  • light Control output
  • Optical detecting Q-Start Control
  • Master PFL Switch
  • 2 Phono Outputs 1 on Front panel and 1 on Top Face
  • Talk Over
  • PRO Split Cue
  • New Feather Fader plus for smoother and Faster Fades
  • X-Y Assignable Channels with Back Lit buttons
  • VCA Fader Control
  • Balanced and Unbalanced Master Outs
  • Gain on each channel
  • Treble,Mid, and Bass on each channel
  • Booth out control
  • Selectable Crossfader curve
  • 3 Phono,4 lines and 3 mics.
  • XLR 1/4” combo mic connector
  • Rubber knobs for better control
  • Light Control output
  • Optical detecting Q-Start Control
  • Master PFL Switch
  • 2 Phono Outputs 1 on Front panel and 1 on Top Face
  • Talk Over
  • New Feather Fader Plus for smoother & faster fades
  • Pro Split Cue
  • Line Output: greater than 18dBv (10V)
  • Signal to noise ratio: Line/Aux:> -63dBv, Mic: > -54dBv
  • Channel EQ: -30dB to +20dB Bass, Mid, Treb.
  • Frequency Range: 20Hz - 20KHz ±1dB
  • Distortion: > 0.3%
  • Talkover: 15dB ±2dB
  • Power: AC 115V/220V AC, 50/60Hz switchable
  • Crossfader: Featherfader Plus
  • Dimensions: 11.02”W x 12.20”H - 280x310mm

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
Q-MX2BPM Download
Q-MX2BPM User Manual (4-15-05) Download
