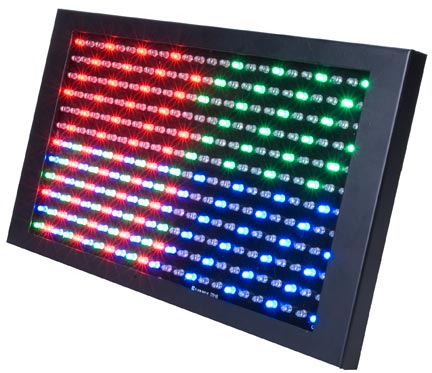

Profile Panel RGB

SKU: PRO522

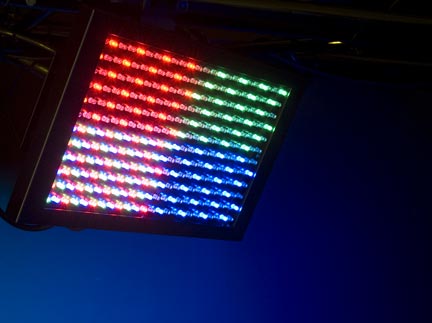

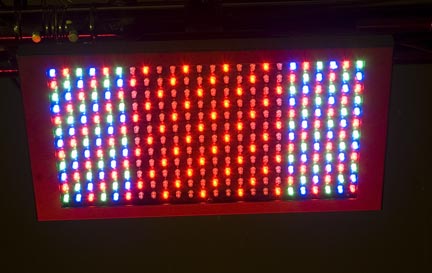

The American DJ profile Panel RGB is a bright indoor LED Color Panel that can deliver a smooth field of light with the rich palettes of color created by mixing the red, green, and blue LEDs. With these high powered LEDs you get a long life, low power consumption, and very low heat output.
Advantage Points: 150

Find this Product

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

The American DJ Profile Panel RGB is a bright indoor LED Color Panel that comes with 288 5mm LEDs. With seven DMX channel modes and four operational modes you get an unprecedented variety of control over your light show. The Profile Panel RGB has built in programs, sound mode, master slave mode and a DMX mode. The night will never be the same with the sensational light show you can deliver with this bad boy.

The smooth field of light can be achieved with the rich palettes of color created by mixing the red, green, and blue LEDs. Set up your event as an architectural wall wash for more ambiances or to high light specific area, or set a light for performance stages where traditional stage lighting emits a lot of heat onto the performers.

With these high powered LEDs you get a long life, low power consumption, and very low heat output allowing you to run this baby all night with no duty cycle. With a low weight you can set it up anywhere, the mounting brackets let you hang the fixture on truss or mount it on a wall. Set your stage apart from all others.

Specifications

Specifications

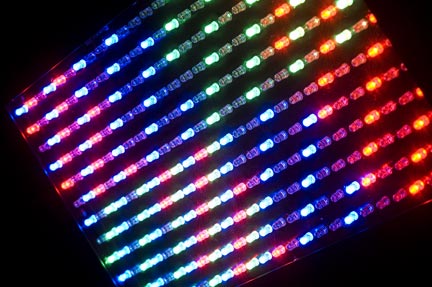

  •  Bright indoor LED Color Panel with 288, 5mm LEDs (96 Red, 96 Green, & 96 Blue LEDs)
  •  7 DMX Channel modes: 2, 3, 4, 6, 7, 24 & 27 channel modes
  •  Operational modes: Built-in programs, Sound mode, Master/Slave mode & DMX mode
  •  Very smooth field with rich palettes of color created by mixing the Red, Green and Blue LEDs
  •  Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
  •  Smooth RGB color mixing (fast or slow color change operation)
  •  Color strobe effect
  •  DMX-512 Protocol
  •  Low power consumption
  •  Very low heat output
  •  Run all night - no duty cycle
  •  Electronic Dimming: 0 - 100%
  •  Beam angle: 40 degrees
  •  Linkable via 3-pin XLR cable

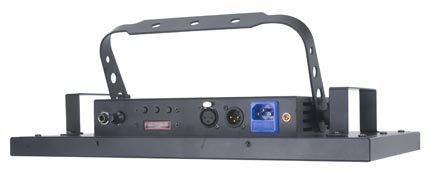

  •  3-button LED display on rear panel
  •  Includes mounting bracket to hang on truss or mount on a wall
  •  1/4” input for optional UC3 remote control (sold separately)
  •  Long life (Rated at 100,000 hrs.)
  •  Multi-voltage: 100-240V, 47/63Hz IEC Plug
  •  Power Draw: 37W
  •  Dimensions (LxWxH): 16.75”x9.5”x2” / 425x240x51.5mm
  •  Weight: 7 lbs. / 2.9 kgs.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Profile Panel RGB (Rev. Dec. 2010) Download
Profile Panel RGB Cut Sheet Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Profile Panel RGB
