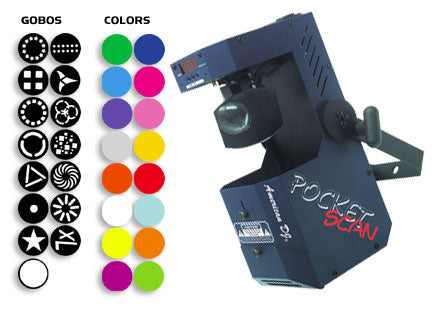

Pocket Scan

(Discontinued)
SKU:
Advantage Points: 320

Find this Product

Enter your zip code below to find this product at a retailer near you!

Specifications

Specifications

  • Built-in 5mW laser
  • 15 colors plus white
  • 14 gobos
  • Seperate color and gobo wheel
  • Sound active with built-in programs
  • Digital display
  • Lamp: 12v/100w JCR 1500 hour lamp life
  • Dimensions: 11.5" x 6" x 4.5"
  • Weight: 10 Lbs

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
Pocket Scan User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

Pocket Scan Will Not Remember DMX Addressing

Make sure to have the pocket scan set to the REC Mode then type in the dmx address. To get the pocket scan in REC Mode, Press & Hold the 100 key and turn on the unit when you see REC in the display release the 100 key.

Pocket Scan not responding to a DMX controller.

Make sure you have the proper DMX address assigned for the controller being used. Check the controllers manual for the address.
Try a different DMX cable.
Cables tend to be the problem if you are sure the address is correct.
Try a different DMX controller.
Check that your polarity matches with the controller.

Pocket Scan Dispay shows code  "RST"

The unit must be sent into the factory for reset of internal sensor.

My Pocket Scan is not responding to sound.

Turn off unit, press and hold the 100 Key..While holding down the 100 key turn the unit back on and release the the key when you see S-F or S-S. Make sure your volume sensitivity is set in the middle & play music.
