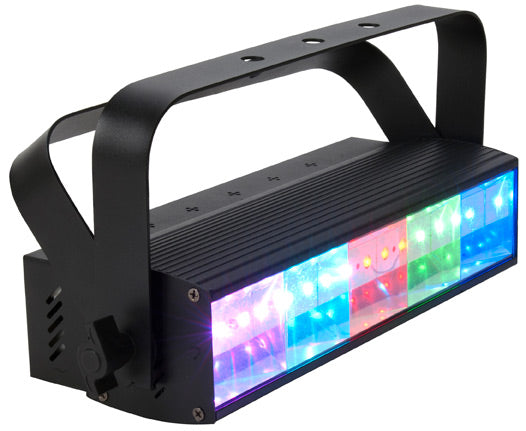

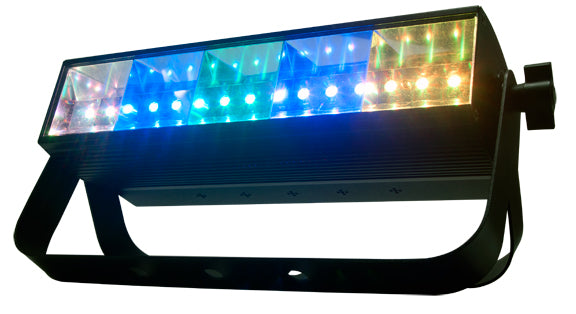

Pixel Pulse Bar
- LED Color Strobe/Wash effect with 5-Zone Pixel Control
- 15x 3-Watt 3-in-1 RGB TRI LEDs
- 4-Button DMX LED Display
- 3 Operational modes: DMX controller, Primary/Secondary & Sound Active
- 3 DMX Channel modes (1, 4 or 17 Ch.)

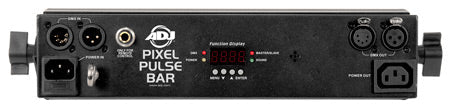

- 3-Pin & 5-Pin DMX In/Out
- Strobe speed (Controlled via DMX)
- 0-100% dimming (Controlled via DMX)
- Includes exciting sound activate built-in programs
- No Moving Parts
- Runs extremely cool! - NO Duty Cycles! – Run all night!
- Includes dual scissor yoke + safety hook on rear panel
- Power Consumption: 61W maximum

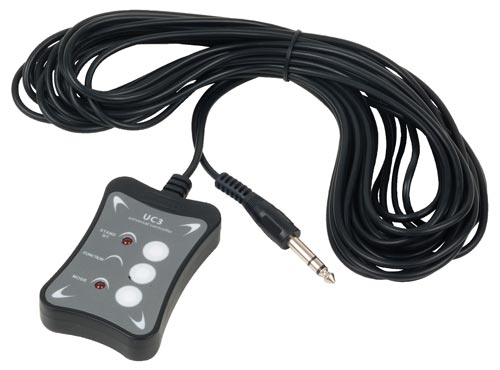

- Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
- IEC AC IN/OUT on rear to daisy chain power (up to 6 Pixel Pulse Bar’s @ 120V and 10 Pixel Pulse Bar’s @ 230V )
- Multi-voltage operation: AC 100-240V 50/60Hz
- Dimensions (LxWxH): 15.5” x 7.25” x 3.5” / 388 x 178.5 x 82mm
- Weight: 8 lbs. / 3.2 kg.
Videos
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| Pixel Pulse Bar User Manual | Download | |
| Pixel Pulse Bar Cut Sheet | Download | |
The ADJ Pixel Pulse Bar is a very cool light fixture and is sure to add even more creativity to your lightshow. This baby has fifteen 3-Watt 3-in-1 red, green, and blue TRI LEDs, and 5-Zones of pixel control that give you the ability to highlight five different colors in any way you see fit. The Pixel Pulse Bar is a very versatile fixture, if you use any type of light show at your events then this is a lighting fixture you need in your lighting arsenal. You can use this as a color wash, color strobe, or a color strove in a 5-zone color pixel controlled light show.
The ADJ Pixel Pulse Bar gives you full control with 3 DMX channel modes, dimming, strobe speed and chase speed. For an insanely cool energy driven light show, you have the ability to display this strobe wash fixture vertical or horizontal creating a red, green, and blue mixed colored lighting.
Add a new dimension to your club, restaurant, show, or music performance. Add even more atmosphere by incorporating fog with your ADJ Pixel Pulse Bar and bring the whole house down with not just music but your light show.
