Penta Pix
Available now from ADJ USA • $299.99

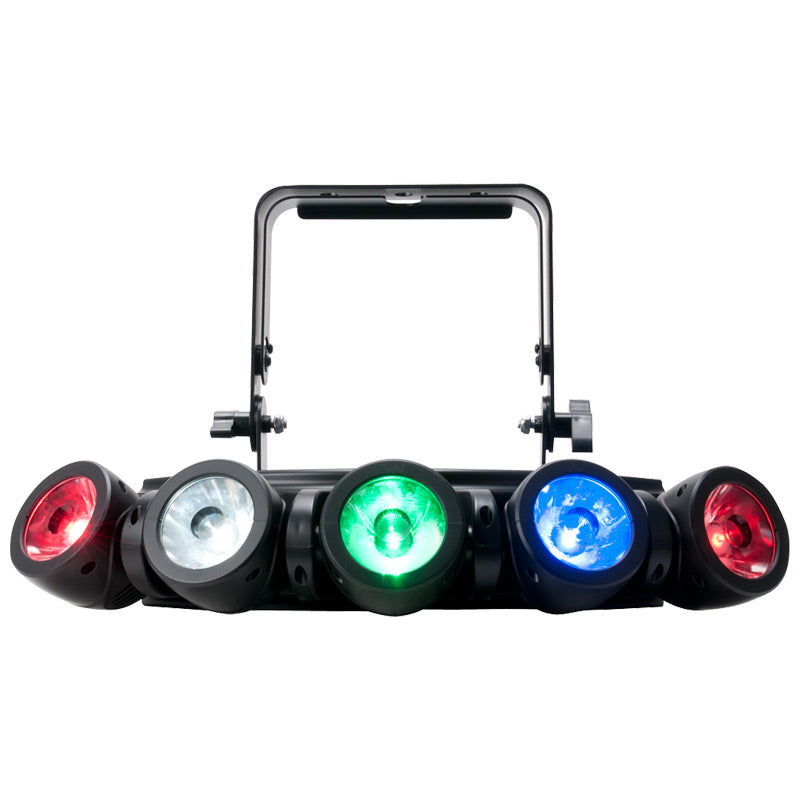

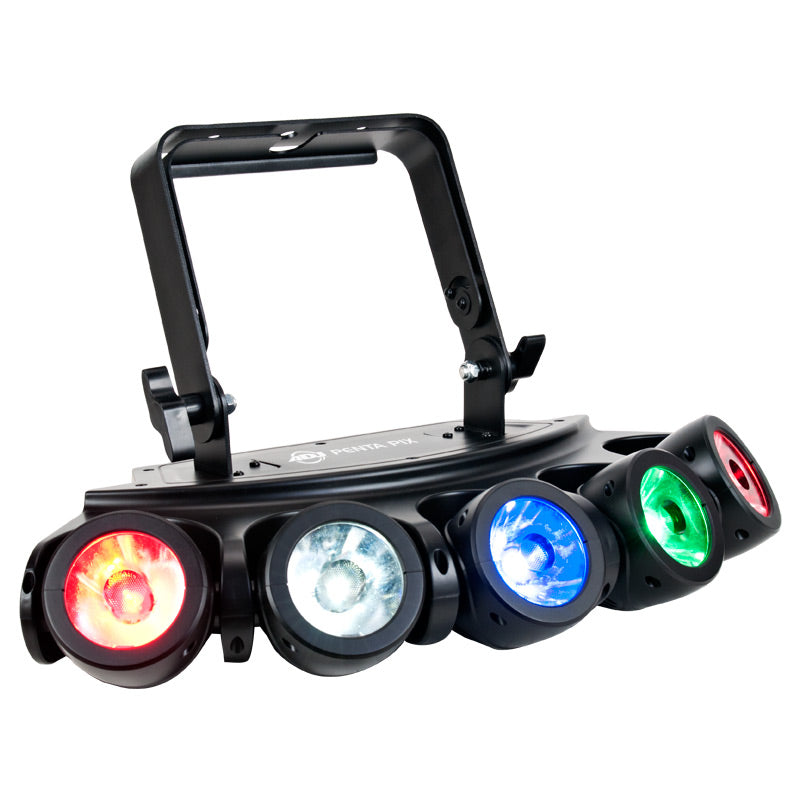

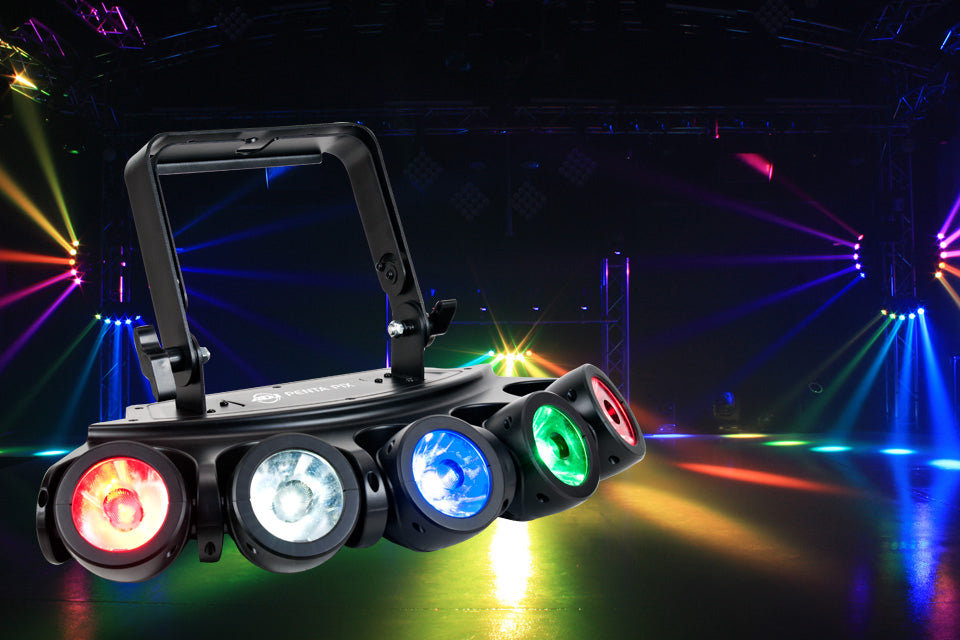

The ADJ Penta Pix is a 5-head beam effect with pixel zone control. Create quick chasing sharp beam effects from its five 15W 4-IN-1 RGBW LEDs with new ACL lens (Advanced Collimator Optic Lens) for crisp, sharp beams. Each head may be manually positioned on a X axis.
The Penta Pix features 63 color macros, 5 DMX channel modes, 5 selectable dimming curves and 15 exciting built-in lightshows. It has a 4-button DMX menu, 3-pin DMX In/Out, locking power In/Out and a scissor yoke.Learn more about the Penta Pix in this product spotlight blog: http://tinyurl.com/jqad5r3Check out the Penta Pix press release here: http://tinyurl.com/jd7pq5o
Specifications
Features:
• New ACL (Advanced Collimator optic Lens) for razor sharp 6-degree beams
• 5-Zone Pixel Control
• 15 exciting built-in Lightshows with sound active control
• Runs extremely cool! - NO Duty Cycles! – Run all night!
• 5 selectable Dimmer Curves

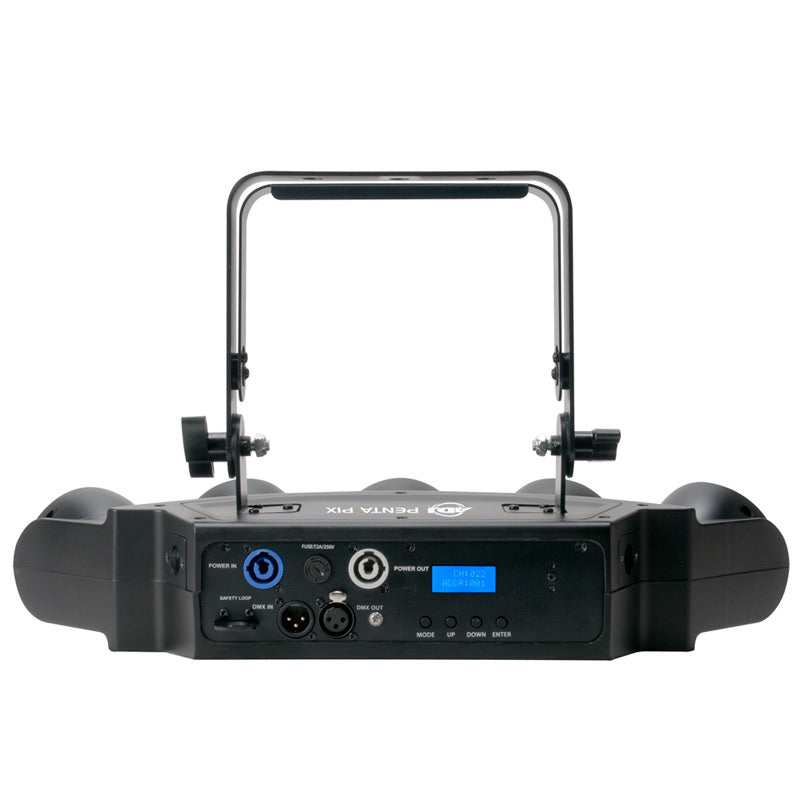

• Includes scissor yoke + safety hook on rear panel
• 4-Button DMX LED Display
Specifications:
• 5x 15-Watt 4-in-1 RGBW Quad LEDs
• Refresh Rate: 3.6KHz
• 5 Operational modes: Sound Active, Auto Run, RGBW Dimmer Mode, Color Macro Mode, amp; DMX Control
•63 Preset Color Macros
•5 DMX Channel modes: 4/8/11/20/27 DMX channels
• 3-Pin DMX In/Out connections
• With Wired Digital Communication Network
• Strobe speed (Controlled via DMX)
• 0-100% electronic dimming (Controlled via DMX)
• Power Consumption: 77W maximum
• AC Connection: Locking power In/Out; Daisy chain power
• Multi-voltage operation: AC 100-240V 50/60Hz
• Dimensions (LxWxH): 21” x 11” x 10.25” / 530 x 280 x 260mm
• Weight: 12 lbs. / 5.4 kg.
Downloads
Cut sheet
Dimensional drawings
User manual
Penta Pix Parts & Service
Our Penta Pix Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Penta Pix. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
