ON-X

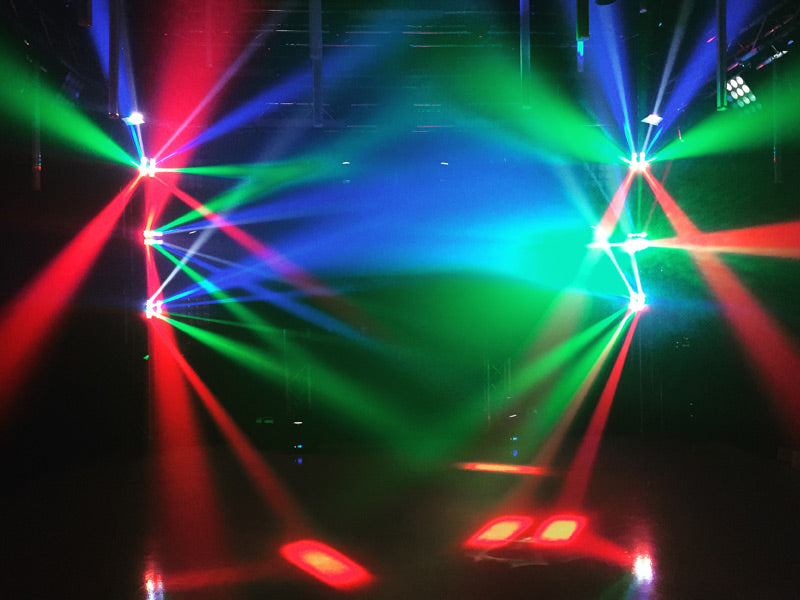

ON-X creates exciting lighting effects with its 8 quick sweeping beams and its dual 4-Zone RGBW LED chasing that pulsing and strobes creating pure lighting excitement for any party.

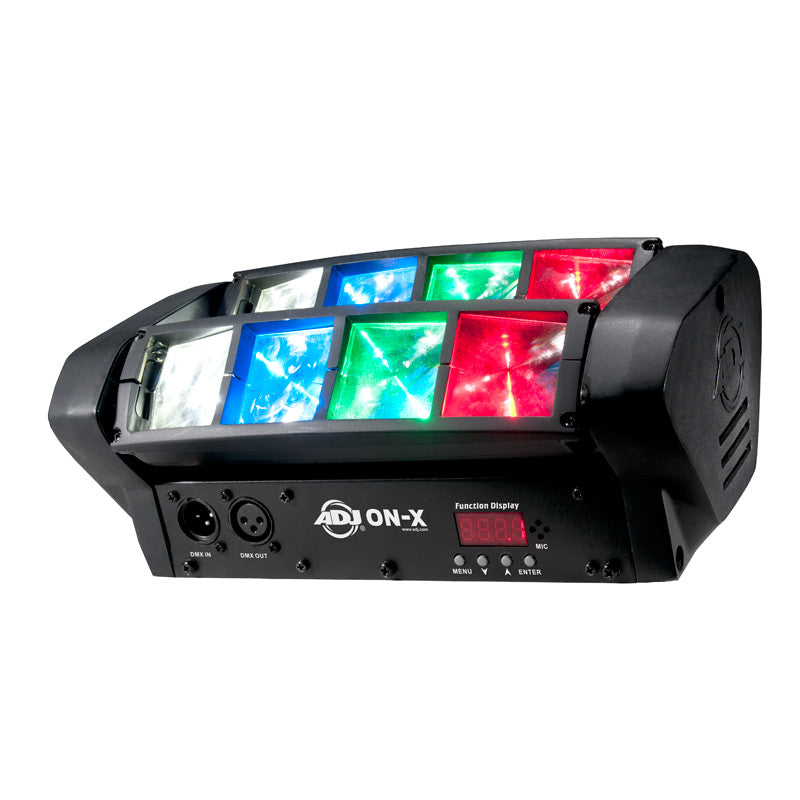

This unique fixture features 8 x 3-Watt bright, RGBW LEDs with a narrow 3.4 degrees beam angle, 6 DMX Channel modes. The On-X may be controlled via it’s own built-in programs, a DMX Controller or the easy-to-use UC IR wireless remote or the Airstream IR App (sold separately). Best when used in multiples, the On-X is designed for stages, nightclubs, lounges, bars and mobile entertainers because it creates a big impact with a small footprint.
Specifications
&• Unique lighting fixture with quick sweeping narrow beams combined with an 8-Zone LED chase
&• 8 x 3-Watt LEDs (2 x Red, 2 x Green, 2 x Blue, & 2 x White)

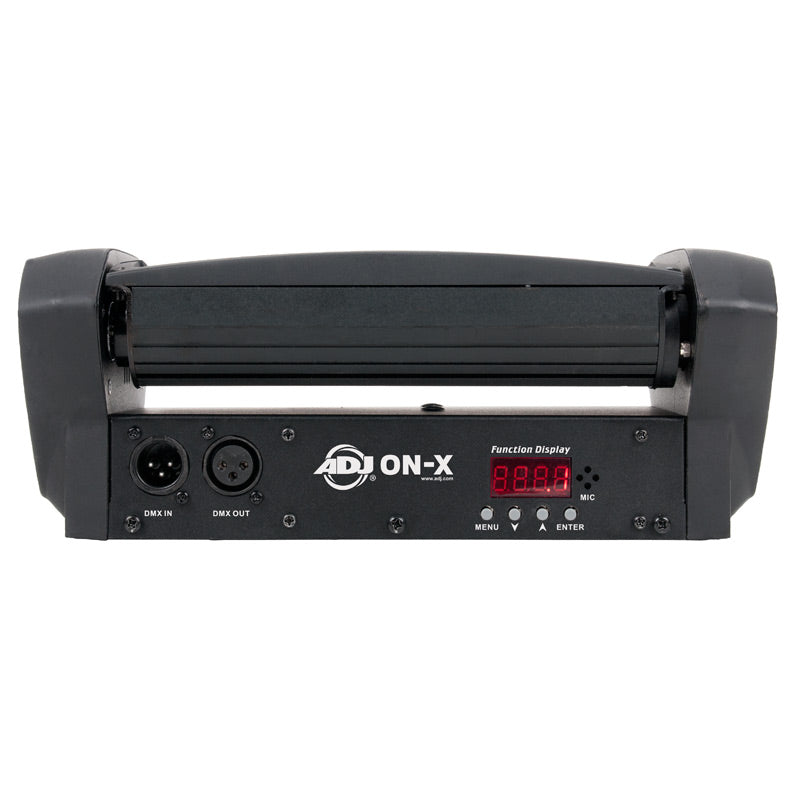

&• 4-Button DMX LED Display
&• 3 Operational modes: Show Mode, Sound Active Mode, & DMX Controlled
&•6 DMX Channel Modes: 2/9/11/12/16/18
&• DMX-512 Protocol
&• Electronic Dimming: 0 - 100%
&• Includes exciting sound activate built-in programs
&• LED pulse & strobe effect
&• 270 degree tilt from smooth Stepper Motors
&• Extremely Long Life (50,000 hr. rated)
&• Beam angle: 4-degrees
&• Light output: 5570 LUX @2M; 1200 LUX @4M (4-degree beam)
&• Runs extremely cool! - NO Duty Cycles! – Run all night!
&• Includes mounting bracket to mount on a wall or set on the ground
&• Safety loop on side panel
&• Very low power consumption - connect more units in a single circuit

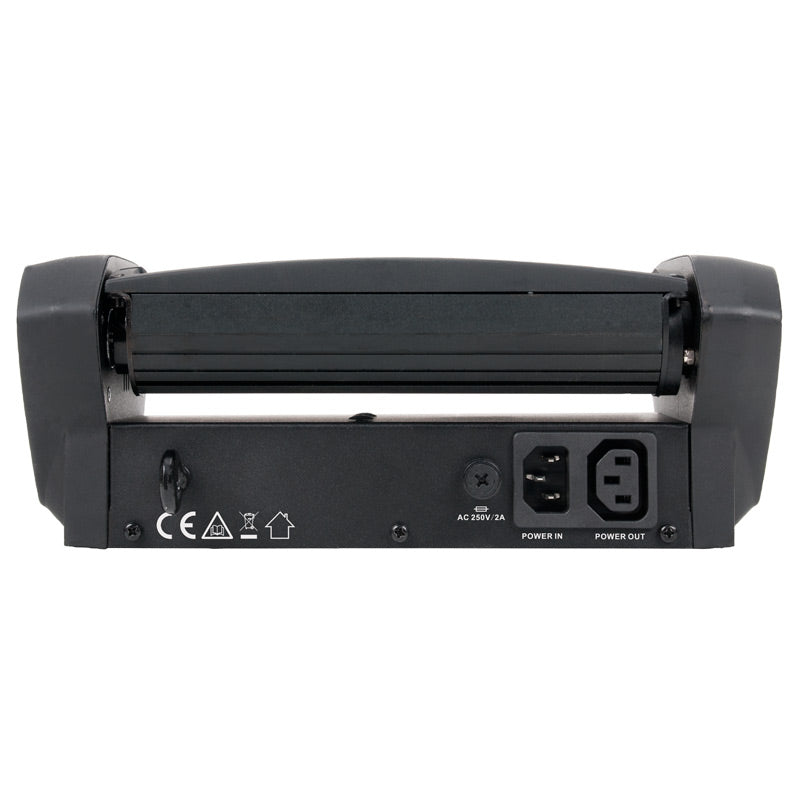

&• IEC AC IN/OUT on rear to daisy chain power (up to 15 fixture’s @ 120V and 28 fixture’s @ 230V )
&• Power Cable Length: 1.5m (IEC)
&• Compatible with ADJ UC IR wireless remote or the Airstream IR App (sold separately)
&• Power Consumption: 39W maximum
&• Multi-voltage operation: AC 100-240V 50/60Hz- IEC socket
&• Dimensions (LxWxH): 11.25&"x 6&"x 4.25&" / 283 x 151 x 110mm
&• Weight: 5.5 lbs. / 2.5 kg.
