Octo Beam RGBW

UPC#: 819730010506
Advantage Points: 420
Redemption Points: 8400
SKU
OCT182

Where to Buy

Enter your zip code below to find this product at a retailer near you!

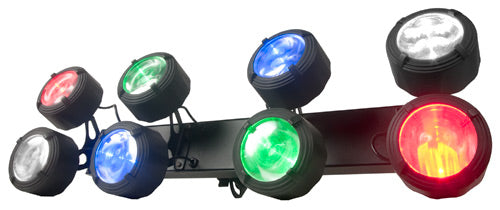

  •  8-head Beam Effect with 8x 3W RGBW LEDs (2 Red, 2 Green, 2 Blue & 2 White)
  •  3 DMX Channel modes: 1, 8 or 10 channel modes
  •  3 Operational modes: Sound Active Mode, Show Mode, & DMX Controlled
  •  Stand Alone or Primary/Secondary Configuration
  •  LED pulse & strobe effect
  •  Flicker Free
  •  Electronic Dimming: 0 - 100%
  •  Beam angle: 3.4-degree
  •  Linkable via 3-pin XLR cable
  •  4-button LED display on rear panel
  •  IEC AC IN/OUT on rear to daisy chain power (up to 12 Octo Beam RGBW’s @ 120V and 19 Octo Beam RGBW’s @ 230V )
  •  Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
  •  Includes mounting yoke to mount on a wall or on to trussing
  •  Long life LED (Rated at approximately 50,000 hrs.)
  •  Low power consumption
  •  Safety loop on rear
  •  Run all night – No duty cycle
  •  Multi-voltage: 100-240V, 50/60Hz
  •  Power Draw: 28.5W max
  •  Dimensions (LxWxH): 25” x 9” x 8” / 632.6 x 226.9 x 199mm
  •  Weight: 8 lbs. / 3.5 kg.
  • ETL Approved

Videos

Downloads

The following downloads are available for this product:

Title Description
Octo Beam RGBW User Manual Download
Octo Beam RGBW Cut Sheet Download
Octo Beam RGBW User Manual (Rev. 1/14) Download
The ADJ Octo Beam RGBW produces a classic disco lighting beam effect with a modern LED twist! This 8-head Beam effect is powered by two red, two green, two blue and two white 3-Watt LEDs. It produces sharp, bright beams at a 3.4 degree beam angle.

 The Octo Beam RGBW has 3 DMX channel modes (1, 8 or 10), 3 operational modes (Sound Active, Show or DMX modes), LED pulse and strobe effects and 0-100% electronic dimming.

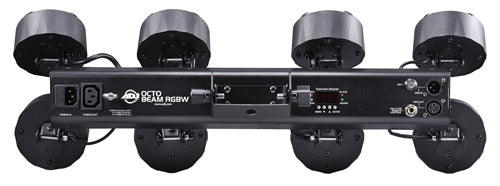

 The rear control panel features a 4-button LED display menu, 3-pin DMX In/Out connections and IEC In/Out for power linking up to 12 units at 120V or 19 units at 230V operation. This fixture is compatible with the ADJ UC3 easy-to-use controller.
