Nucleus LED

SKU:

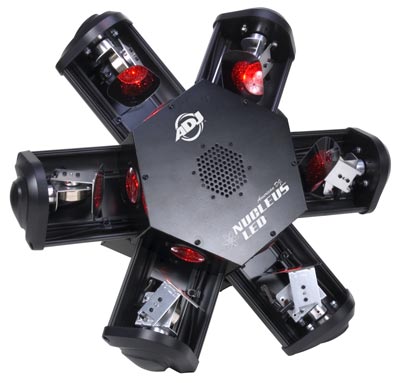

The Nucleus LED from ADJ is a centerpiece lighting effect with 6 individual 3-in-1 RGB LED heads capable of producing a variety of color effects. The Nucled LED is built to run cool and last for ages with no duty cycles. Includes 3 different modes, smooth Stepper Motors, and strobe effect.
Advantage Points: 600

Find this Product

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Make the Nucleus LED centerpiece for your entire light show! When positioned directly above the crowd, this high-energy lighting unit puts your viewers dead center in the excitement. With six separate scanning heads, the Nucleus LED is the backbone around which the rest of your show should be built. With a combination of three different modes (DMX controller, Master/Slave, and Sound Active), strobe effect, and the multiple available colors, the Nucleus LED from ADJ pairs well with any of our other lighting effects for a truly unique experience.\

Using 6 separate 3-in-1 RGB "TRI Color" LEDs, this unit can produce a variety of different color effects, including red, green, blue, purple, yellow, cyan, and white). The LEDs are rate for a 50,000 hour life, and the unit includes a high velocity cooling fan so you can run it all night long.

If you're looking for high-quality, professional grade products, then ADJ is the place for you. And if you're looking for that perfect centerpiece for your lighting array, then give the Nucleus LED the chance to do what it does best.

Specifications

Specifications

  •  High-energy TRI Color LED Centerpiece lighting effect with six scanning heads
  •  6x 3-watt 3-in-1 RGB “TRI Color” LEDs produce a variety of color effects (Red, Green, Blue, Purple, Yellow, Cyan & White)
  •  Long-life LED: 50,000 hour LED life
  •  Uses 3.6 degree high quality Stepper Motors for extremely smooth scanning
  •  DMX-512 protocol
  •  3 different DMX Modes: 4, 18, 22 channel modes
  •  3 Operational modes: DMX controller, Master/Slave & Sound Active
  •  DMX-512 Protocol
  •  Strobe effect (Sound Active Mode)

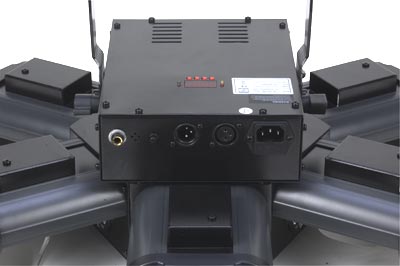

  •  Linkable via 3-pin XLR cable
  •  4-button LED DMX display
  •  Optional controller: easy-to-use American DJ UC3 controller (sold separately)
  •  Includes hanging bracket
  •  Very low heat output and power consumption
  •  Run All Night - High velocity fan keeps unit cool - No Duty Cycle!
  •  Compatible with the UC3 easy-to-use controller (sold separately)
  •  Switchable voltage: 120V/60Hz or 230V/50Hz - IEC socket
  •  Power Consumption: 60W
  •  Dimensions (LxWxH): 21.5” x 19.5” x 7” / 544x496x175mm
  •  Weight: 20 lbs. / 9 kgs.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Nucleus LED User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Nucleus LED
