Ninja 5RX

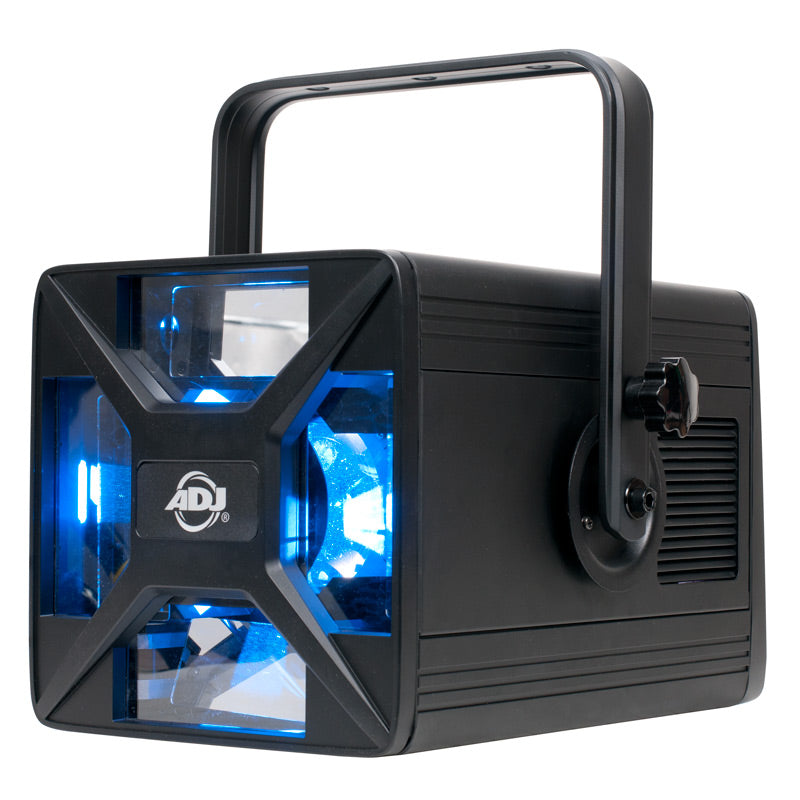

The Ninja 5RX is a unique effect with 4 tilting mirrors that independently move and scatter dozens beams all around a room, stage or dance floor. It features the brilliant Philips Platinum 5R lamp, 17 static GOBO patterns and separate color wheel with 15 colors. The Ninja 5RX has stealth, precise beam movement due it the precise steeper motors on the mirrors.
Learn more about the Ninja 5RX in this product spotlight article: http://tinyurl.com/h49jhz9
Specifications
• 3 DMX Channel Modes: 1, 10, or 13 DMX channels
• LED DMX 4-Button menu system
• 5-degree beam angle

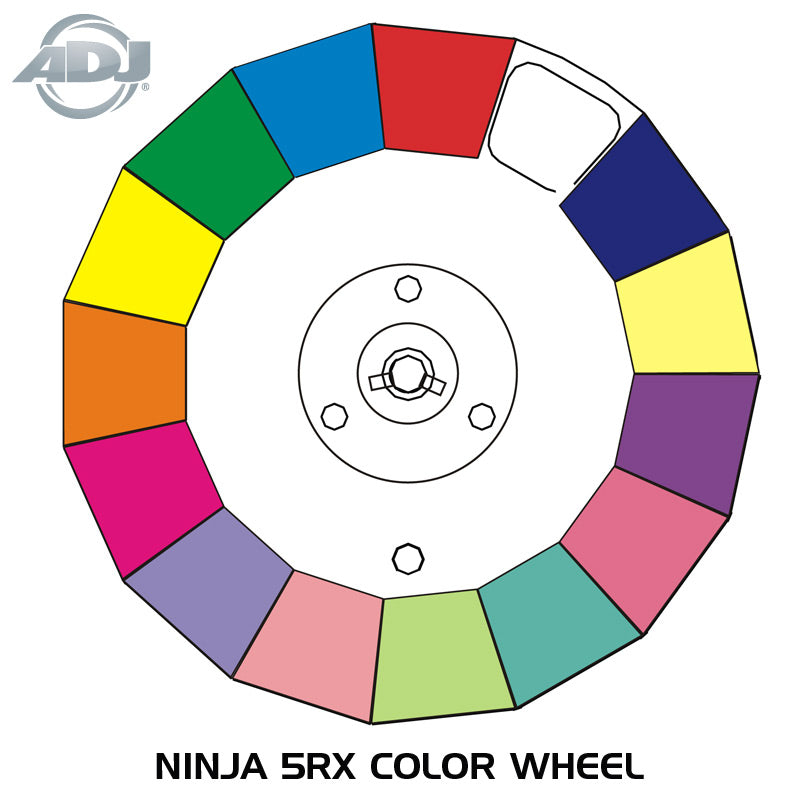

• 15 colors

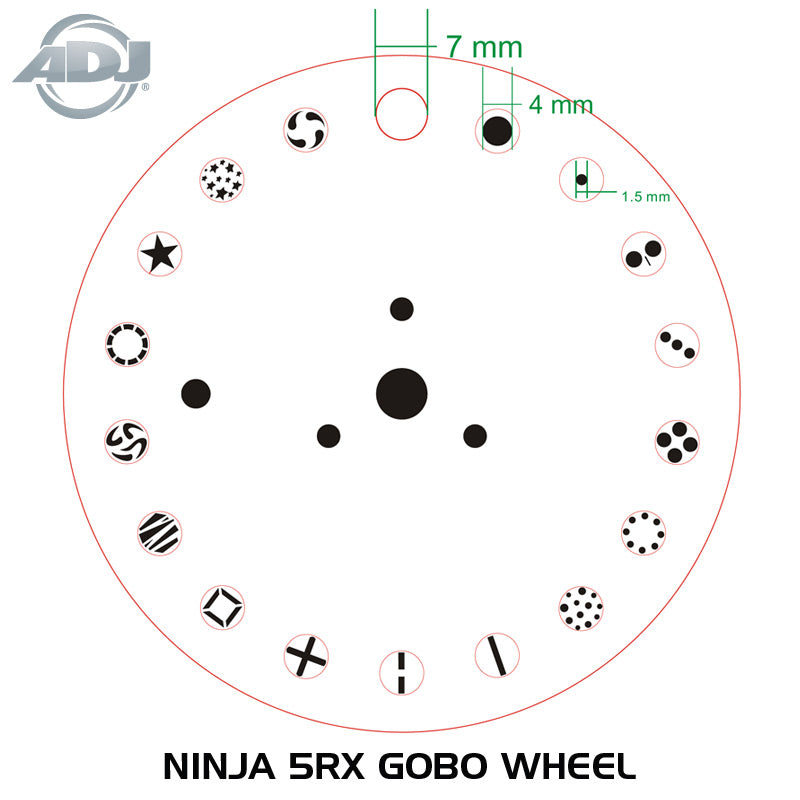

• 17 static, fixed gobos + open
• Independent gobo and color wheels
• Tilt Invert
• Built-In Tilt Macros
• Shutter: Pulse effect; random strobe slow to fast
• Electronic Dimming: 0% - 100%
• Strobe effect
• Stepper motors with micro stepping
• 3 Operating Modes: Show Mode (12 Shows), Sound Active Mode, DMX Control
• Compatible with all UC IR wireless remote (sold separately), and Airstream IR

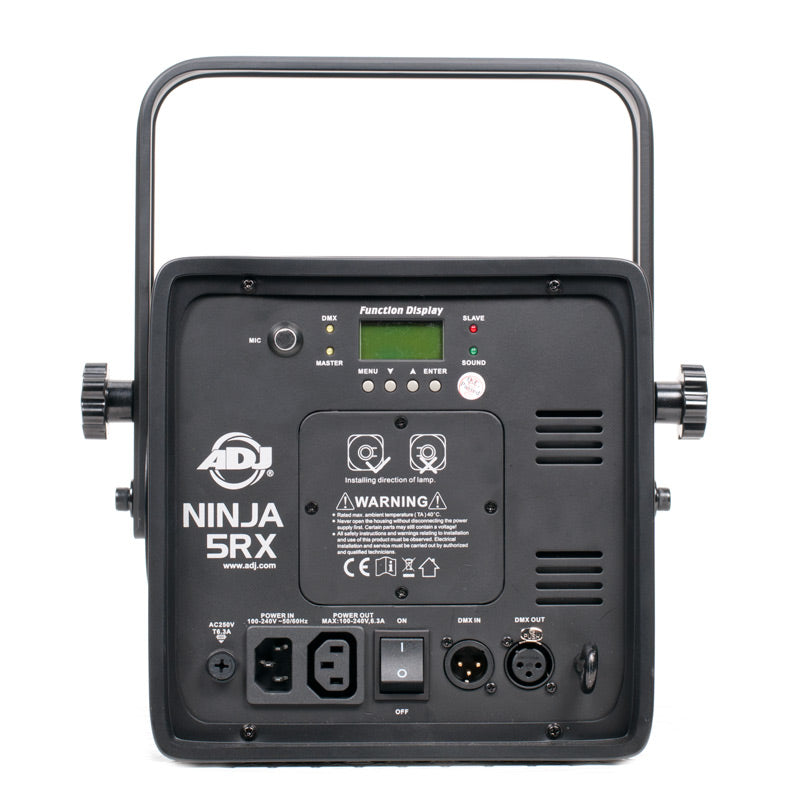

• 3-pin XLR In/Out
• IEC in/out to Daisy Chain Power (Connect up to 2 fixtures max @ 120V, up to 5 fixtures max. @ 230V)
• Power Consumption: 260W
• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• Power Cable Length: 1.5m (IEC)
• Lamp: Philips® MSD Platinum 5R discharge, 8,000˚K – 3,000 hr. long life
• Light Output: 27000 LUX @6M (3-degree)
• Dimensions (LxWxH): 13.25” x 12.25” x 13” / 340x313x333mm
• Weight: 22 lbs. / 10 kg.
• ETL Approved
Downloads
Cad drawing
Photometrics
User manual
Generic
Ninja 5RX Parts & Service
Our Ninja 5RX Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Ninja 5RX. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
Ninja 5RX Parts & Service
